Key Features & Benefits – EPMAN 16 inch (Ø412 mm) universal pusher radiator fan
EPMAN 16 inch (Ø412 mm) universal pusher radiator fan for a 12 V electrical system. As a universal unit, it is typically installed with custom mounting matched to the available space in front of the radiator.

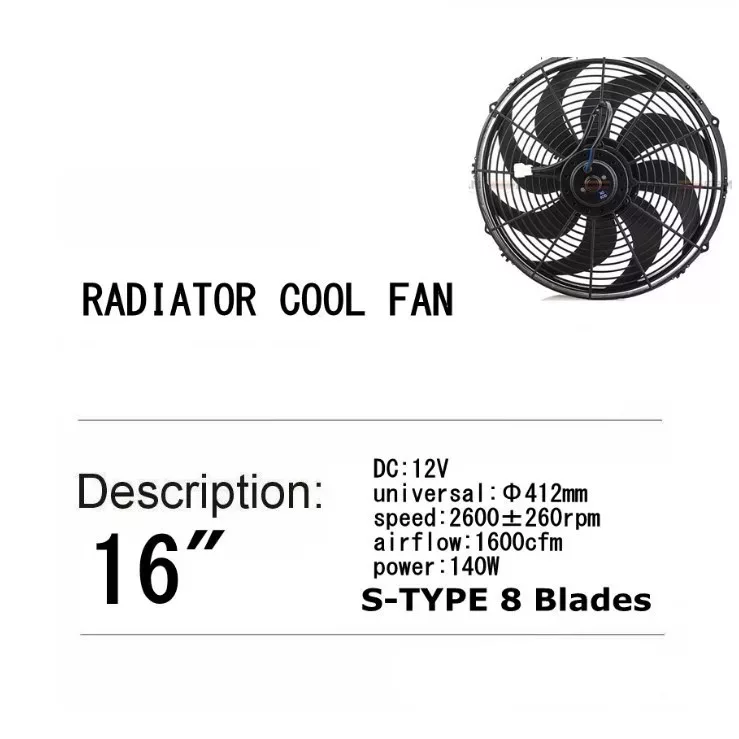

Power is listed as 140 W with 2718 m³/h airflow (1600 cfm), using an S-TYPE 8-blade layout. Package includes 1 pc radiator fan and a fan mount kit as pictured.
When is this useful?
It can support airflow through the radiator at low vehicle speed or while stationary, especially on builds where packaging favors a front-mounted fan. Fit is mainly determined by diameter, available clearance, and how the mounting points line up.
Technical specs
- Brand: Epman
- Part number: EP-RCFS16F
- Voltage: 12 V

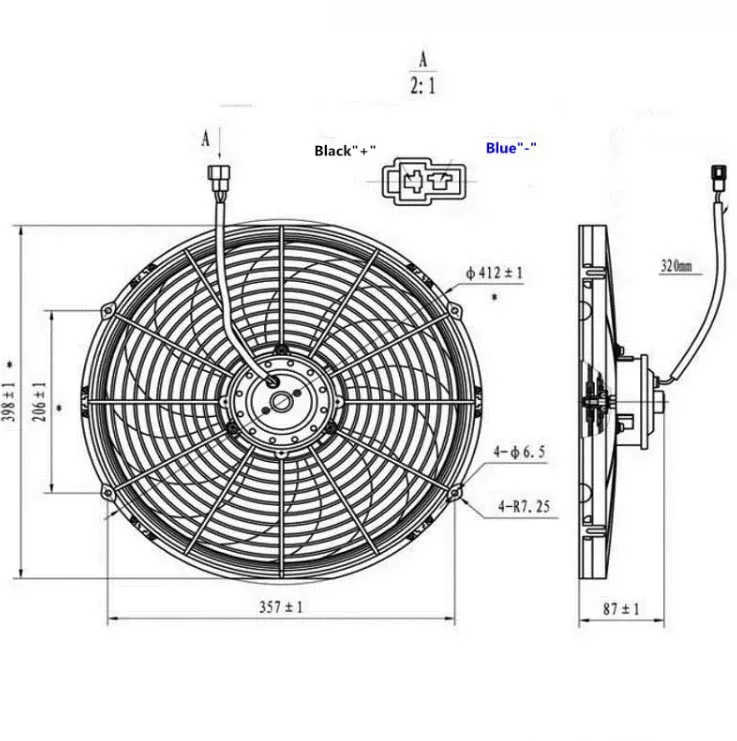

- Fan diameter: Ø412 mm (16”)
- Power: 140 W
- Airflow: 2718 m³/h (1600 cfm)
- Blade design: S-TYPE, 8 blades

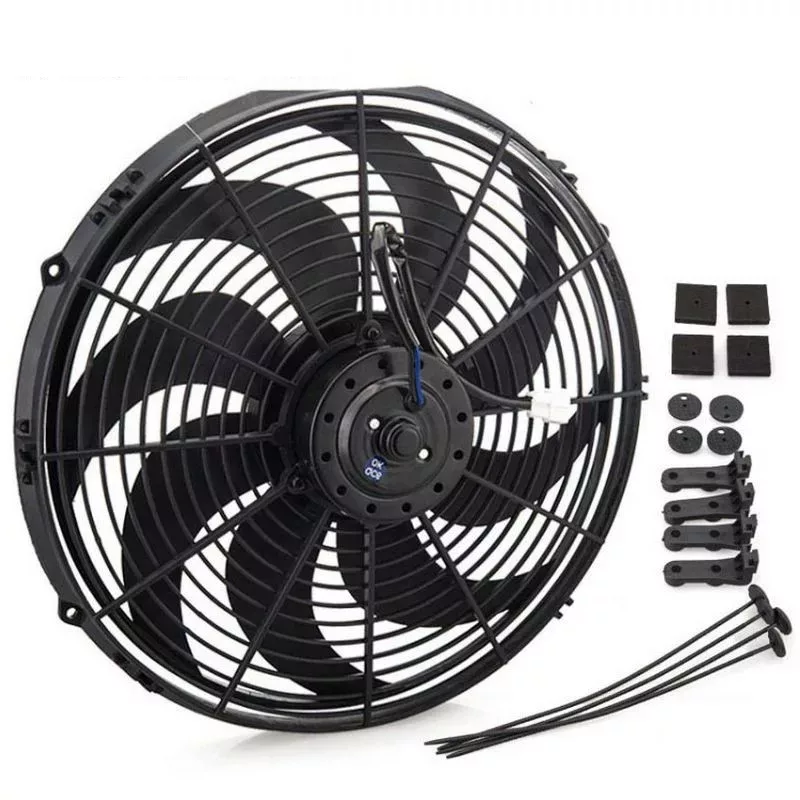

- Package includes: 1 pc fan, fan mount kit (as pictured)
Selection & installation tips
- Diameter check: measure the radiator core area and confirm the Ø412 mm diameter clears mounting zones and nearby hardware.
- Packaging clearance: check space in front of the radiator and verify it won’t interfere with bumper, braces, piping, or intercooler.
- Airflow direction: confirm airflow direction before final mounting so it works as a true pusher through the radiator.
- Electrical setup: size relay, fuse, and wiring for a 12 V system and verify polarity during wiring.
- Mount kit use: install the pictured mount kit so the fan is secure and does not contact surrounding parts under vibration.
Before installation, verify diameter, available clearance, and the 12 V electrical setup, then compare your measurements to the technical specs and the package contents listed above.
