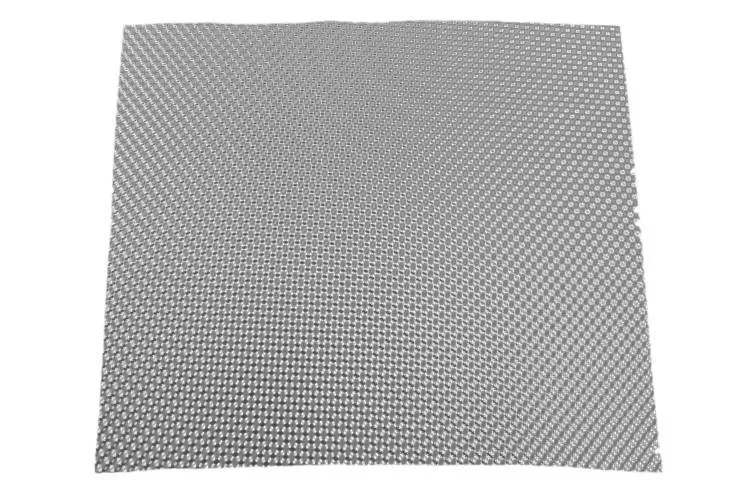

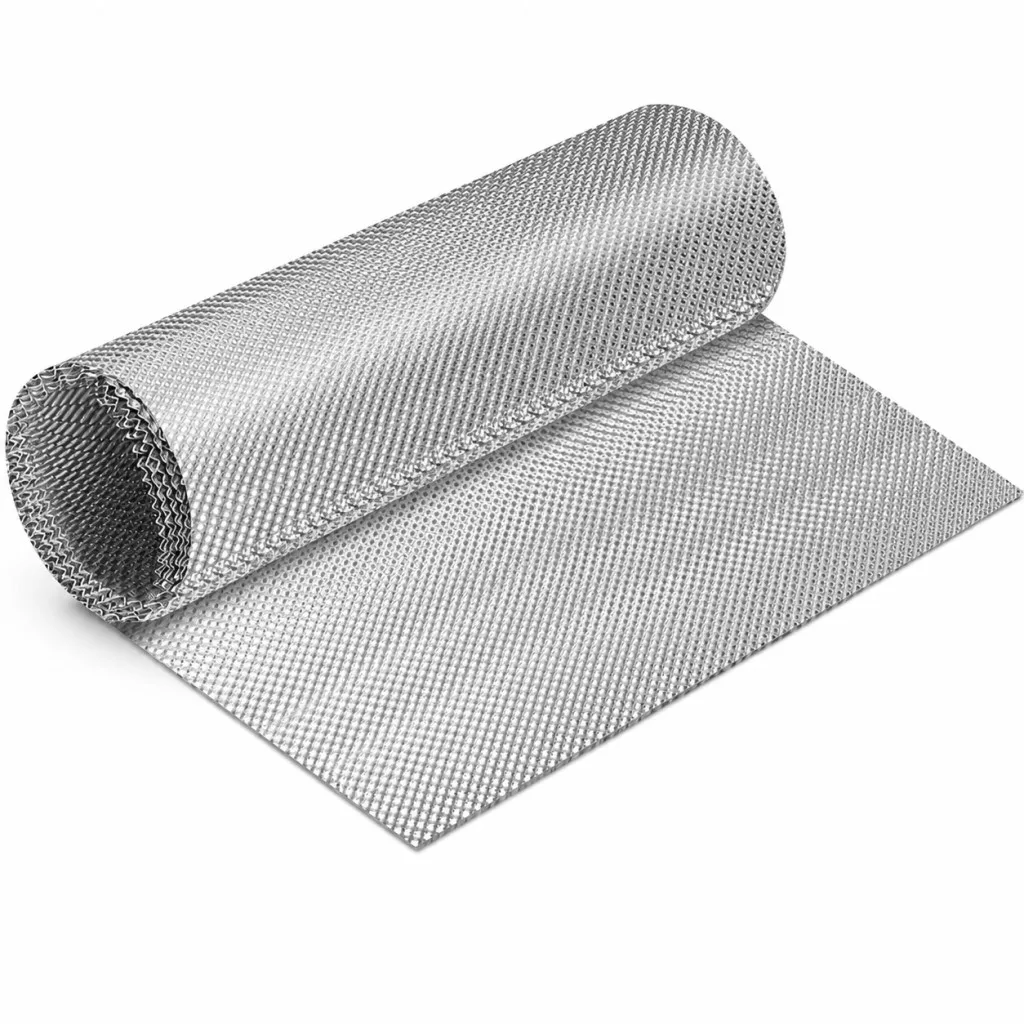

Embossed SS304 heat shield sheet 19.7 x 19.7 in

Key Features & Benefits – embossed SS304 heat shield sheet 19.7 x 19.7 in

The embossed SS304 heat shield sheet 19.7 x 19.7 in is a universal panel for use around exhaust, firewall or other heat-exposed surfaces. The sheet has a 19.7" x 19.7" size, uses SS304 stainless steel and has a 0.006" thickness.

The embossed surface and thin sheet construction suit custom heat shielding work where the panel needs to be trimmed, shaped or matched to limited installation space. This layout works as a separate heat barrier panel in a range of engine bay and body-area applications.

When is this useful?

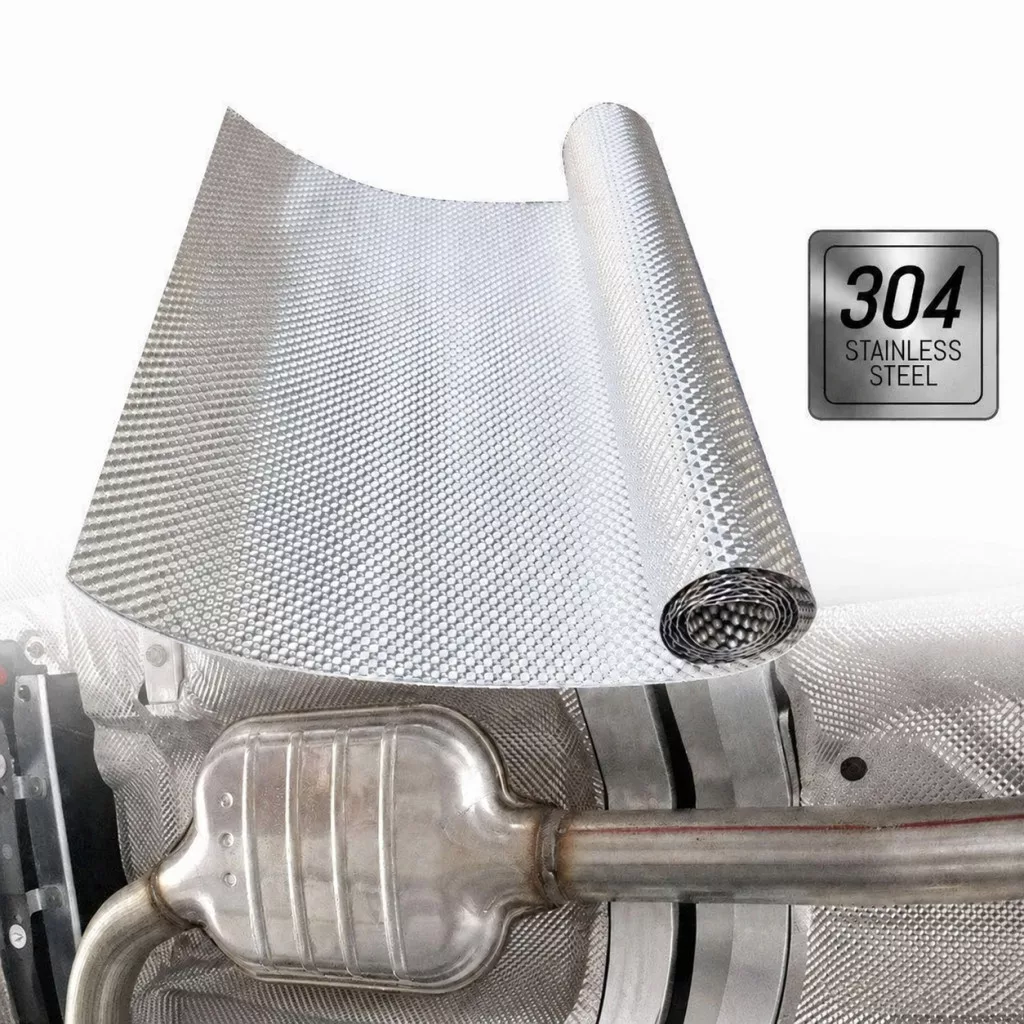

This embossed SS304 heat shield sheet 19.7 x 19.7 in is useful when a separate barrier panel is needed between a hot component and a nearby surface. It is a practical starting point for custom work around exhaust parts, firewall sections, floor areas or other heat-exposed zones.

Technical specs

• Material: SS304 stainless steel
• Size: 19.7" x 19.7" (500mm x 500mm)
• Thickness: 0.006" (0.15mm)
• Surface: embossed

Selection & installation tips

• Coverage area: measure the target area to confirm whether the 19.7" x 19.7" sheet is sufficient or whether extra cutting and joining will be needed.
• Installation space: check available clearance, bending directions and the required gap between the hot component and the sheet.
• Mounting method: plan the fixing points in advance and confirm that your own bolt, rivet or other mounting solution matches the layout.
• Formability: compare the 0.006" thickness with the amount of shaping, bending or trimming required for your installation.

Before installation, self-check coverage area, sheet thickness, mounting points and available space, then compare them with the listed details.
