Electronic Battery Isolation in Motorsport – Why Mechanical Systems Are Being Replaced

Electronic Battery Isolation in Motorsport – Why Mechanical Systems Are Being Replaced

Battery isolator switches have long been considered essential equipment in race cars – required not only by regulations but also for safety. However, traditional solutions are increasingly being replaced by modern, electronic systems. The ASMoto BatteryIsolator is a perfect example: compact, reliable, and fully compatible with today’s motorsport electronics. But why is such an upgrade necessary?

The Purpose of Battery Isolation – Beyond the Basics

In motorsport, it’s not just about cutting the main power circuit with a single action. The isolator must operate reliably under extreme conditions, be accessible from both inside and outside the vehicle (for example, during rescue operations), and not interfere with other vehicle systems. Most motorsport regulations – such as the FIA – specify in detail how an isolator must work, including cutting off the starter motor, ECU, power supply, and shutting down the engine.

Limitations of Traditional Systems

• Cable-operated mechanical switches are prone to stretching, sticking, or jamming – especially if dirt or moisture enters the system.
• Mechanical switches require more installation space and offer less flexible placement.
• Physical force must be transmitted to the switch, increasing the number of possible failure points.

An alternative is relay-based isolation, where a high-power relay interrupts the main circuit. These too have limitations:

• Relays heat up and consume power when engaged, which can be problematic for low-capacity racing batteries.
• If disconnected externally, the system often cannot be reset from inside the car – requiring outside intervention.

Both solutions are sensitive to vibration, which reduces long-term reliability. In contrast, electronic systems are more resistant to vibration and perform arc-free switching, providing a significant fire safety advantage. Wear-free operation also extends service life and reliability, even in extreme environments.

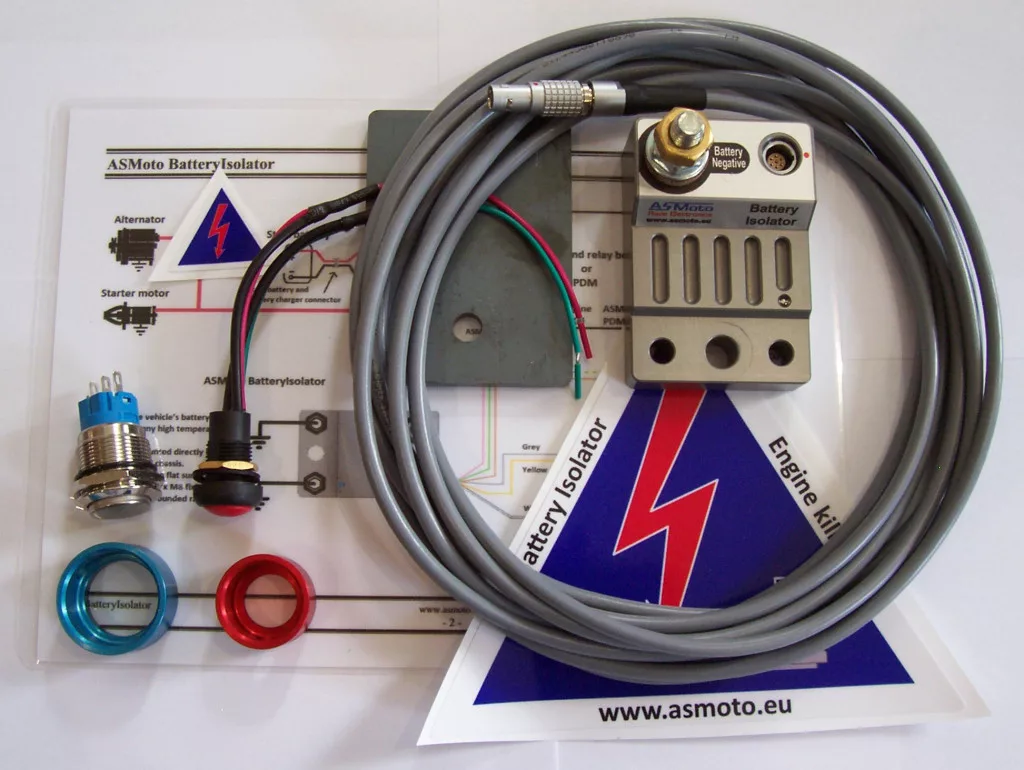

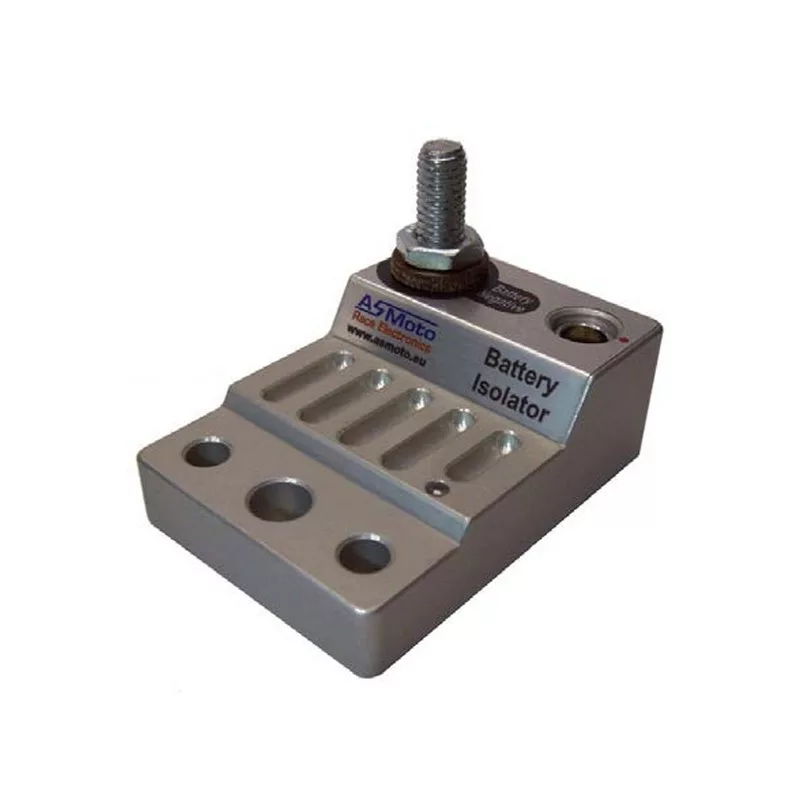

The Advantages of the ASMoto BatteryIsolator – A Modern Motorsport Solution

• No moving parts – eliminates the risk of mechanical failure
• Compact size – easy to install even in tight spaces
• Can be controlled by internal and external push buttons, allowing restart from inside after an external shutdown
• Minimal standby current – won’t drain the battery
• Reliable operation under heavy vibration and temperature fluctuations
• FIA compliant – approved for use in homologated racing events

The ASMoto system integrates perfectly with other motorsport electronics – such as PowerModules, ECUs, displays, or data loggers – making it easy to fit into complex electrical setups.

More Than Just Power Isolation – Integrated Systems

As motorsport technology evolves, intelligent systems like electronic battery isolators become increasingly essential. The ASMoto BatteryIsolator is not only more reliable, but also more convenient and efficient than older systems – whether used in rally cars, track cars, or performance builds.

When used with a PowerModule, the system can even be set to automatically shut down a few seconds after the ignition is turned off – saving the driver from having to think about it.

Conclusion

If you want a reliable, intelligent, and long-lasting solution, electronic battery isolators are the future of motorsport. The ASMoto BatteryIsolator brings the benefits of modern technology to the track – and beyond.
