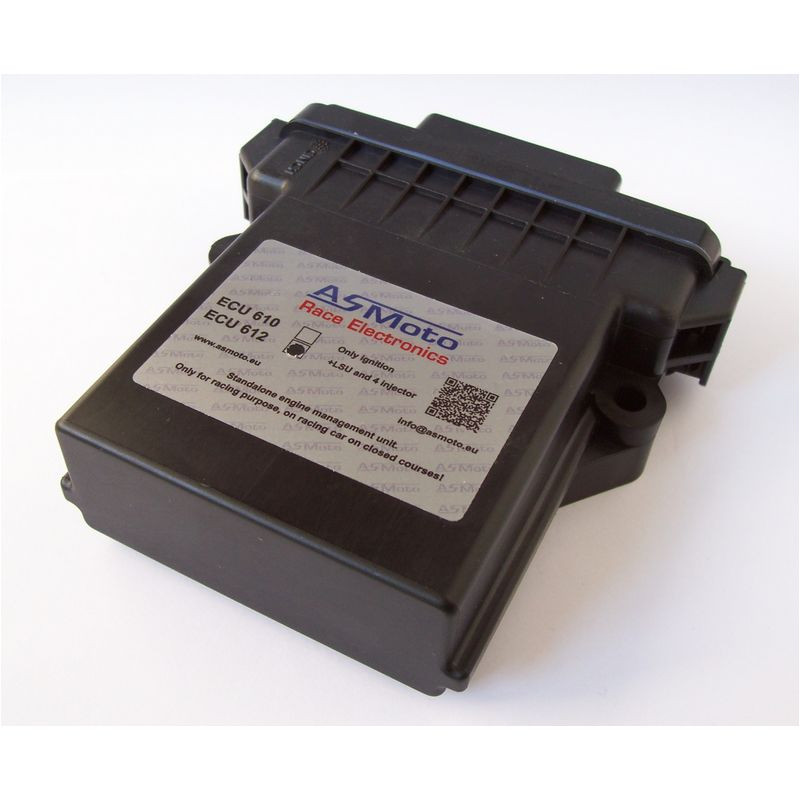

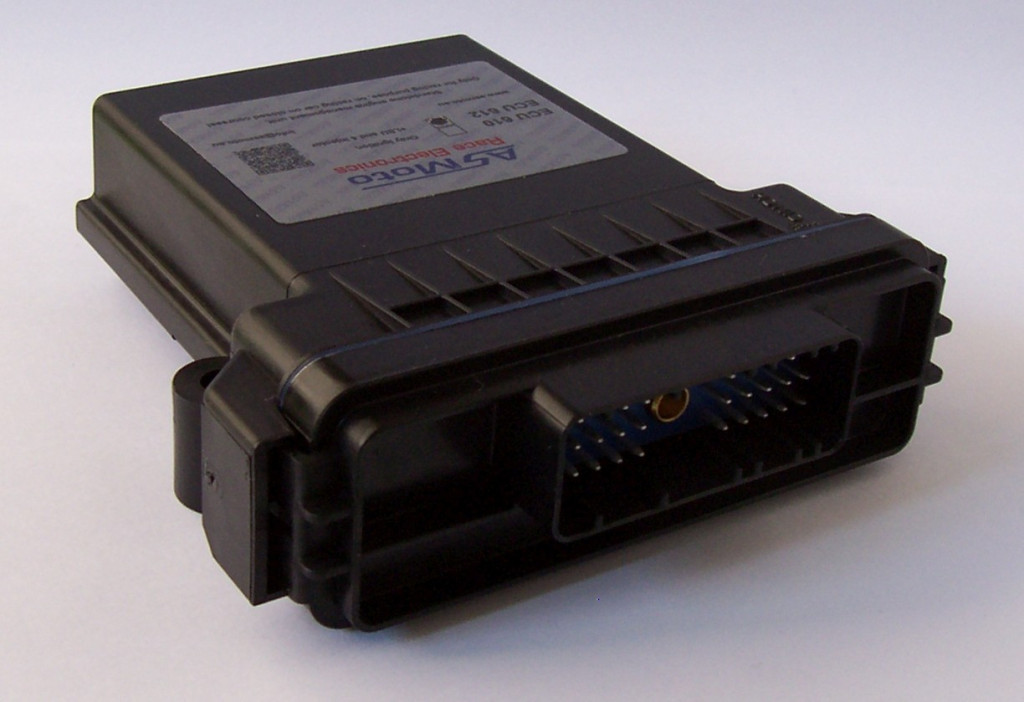

ASMoto 610 Engine Contorl Unit - for Ignition Contorl - ECU

The ASMoto ECU 610 Ignition Controller is an ideal solution for carbureted engines requiring precise ignition control. This modern programmable system is tailored for 4-cylinder engines and includes features designed to meet the demands of motorsport.

Key Features:

• 2 ignition outputs: Selectable logic or power output via software.
• Knock sensor input: Cylinder-specific knock correction.
• 7 analog/logic inputs: Supports various sensors.
• Crankshaft signal: Compatible with Hall or inductive sensors.
• Camshaft signal: Supports Hall sensors (optional for operation).
• 4 programmable outputs: Suitable for functions such as cooling fan, RPM signal, or fuel pump control, with one PWM option (e.g., Boost control, Cam control) or Iso 14230-4 (EOBD K-line).
• 1 CAN bus: Seamless integration with other systems.
• 4 engine maps: Flexible configuration options.
• Upgradeability: Easily upgradable to ECU 612.

Important: Installation must be performed by a specialist, and the device requires the ASMoto USB-CAN Interface for programming.

For more information, visit ASMoto.eu or click here!
