Key Features & Benefits – Davies Craig EWP80 Alloy Flange Combo electric water pump & LCD controller (12V)
The Davies Craig EWP80 Alloy Flange Combo electric water pump & LCD controller (12V) is a remote-mounted coolant circulation pack with 35mm (1-3/8") inlet and outlet. It is used on naturally aspirated engines up to 2.0L as an alternative to a belt-driven mechanical water pump, or as an auxiliary pump.
The compact, lightweight aluminium pump uses 6-bolt flange connections on both inlet and outlet, with a matte black powder-coated finish. The pack includes straight and 90° 35mm push-on barb fittings, plus the LCD EWP®/Fan Digital Controller, wiring harness, temperature sensor and a 35mm inline adapter.
When is this useful?
The controller varies pump speed to match coolant temperature and can manage Thermatic® fan operation: it activates the fan at 3°C (5.4°F) above the set temperature and can run on after shutdown for three minutes or until coolant drops 10°C (14°F) below the set point.
Technical specs
- Operating voltage: 12V DC (16V maximum)
- Max current: 7.5A @ 13V
- Flow rate (max): 90 L/min (23.8 US gal/min) @ 0 kPa
- Maximum head height: 5.2m (17ft 0.72in)
- Operating temperature: -40° to 120°C (-40° to 248°F)
- Fluid temperature: -40°C to 120°C (-40°F to 248°F)
- Pump weight: 1100 grams (2.43 lb)
- Motor type: Brushed DC Motor
- Body material: Aluminium
- Burst pressure: 500 kPa (72.52 psi)
- Inlet & outlet: 6-bolt flange; 35mm (1-3/8") push-on barb
- Hose fitment: 32mm to 38mm (1¼" to 1½")
- Hose fitment with 3mm sleeve: 41mm to 44mm (1⅝" to 1¾")
- Hose fitment with 6mm sleeve: 47mm to 50mm (1⅞" to 2")

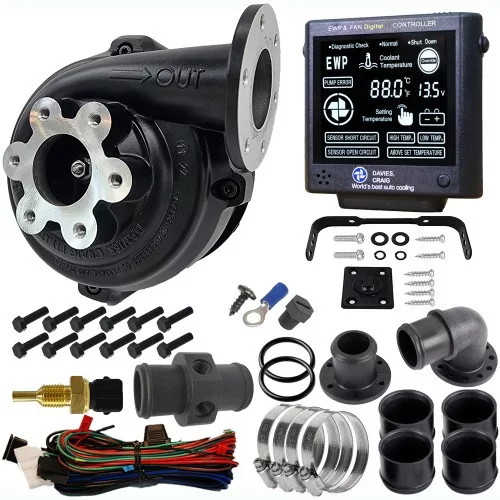

- Package contents: EWP®80 Alloy Flange pump (1), EWP/Fan Digital Controller + mounting bracket & plate (1), 35mm inline adapter nylon (2 × 1/4" NPT) & nylon bung (1), thermal sensor coolant temp 1/4" NPT (1), 5×12 flanged hex set screws (12), 35mm flange adapter 90° elbow (1), 35mm flange adapter straight (1), adapter O-rings (2), 3mm rubber sleeves (4), hose clamps (4), EWP & controller wiring harness (1), 6mm ring terminal (1), self tap screw (1), installation instructions (1)
Selection & installation tips
- Connection size: confirm the 35mm inlet/outlet and your hose I.D. for the 32–38mm fitment range.
- Flange sealing: inspect 6-bolt flange seating faces and O-ring condition before assembly.
- Inline adaptor placement: plan the 35mm inline adapter position so the temperature sensor reads in the main coolant flow.
- Electrical supply: provide a stable 12V feed with correct fuse protection and a solid ground for the pump and controller.
- Mounting & bleeding: mount the pump/controller to avoid hose stress, then bleed the cooling system after filling.
Before installation, verify the connection type, hose diameter, inline adaptor and sensor placement, and available mounting space, then match your measurements to the technical specs listed above.
