Davies Craig EWP Air Bleed Adapter Kit, 38 mm, 2×¼″ NPT – 0417

Davies Craig EWP Air Bleed Adapter Kit, 38 mm, 2×¼″ NPT – 0417

A 38 mm outside-diameter air bleed adapter kit with two ¼″ NPT ports for Davies Craig EWP/EBP cooling systems. Mounted at the highest point of the upper radiator hose, it helps remove trapped air, while the second port can accept an optional thermal sensor.

What is it used for?

The kit makes it easier to release trapped air after fitting an EWP or EBP. The bleed fitting should be positioned at the highest point of the upper radiator hose; open and close the bleed screw in accordance with the manufacturer’s procedure.

Key specifications

• Davies Craig part number: 0417
• Hose connection: 38 mm (1-1/2″) outside diameter
• Threaded ports: 2× ¼″ NPT
• Installation position: upper radiator hose
• Construction: nylon inline adapter

Package contents

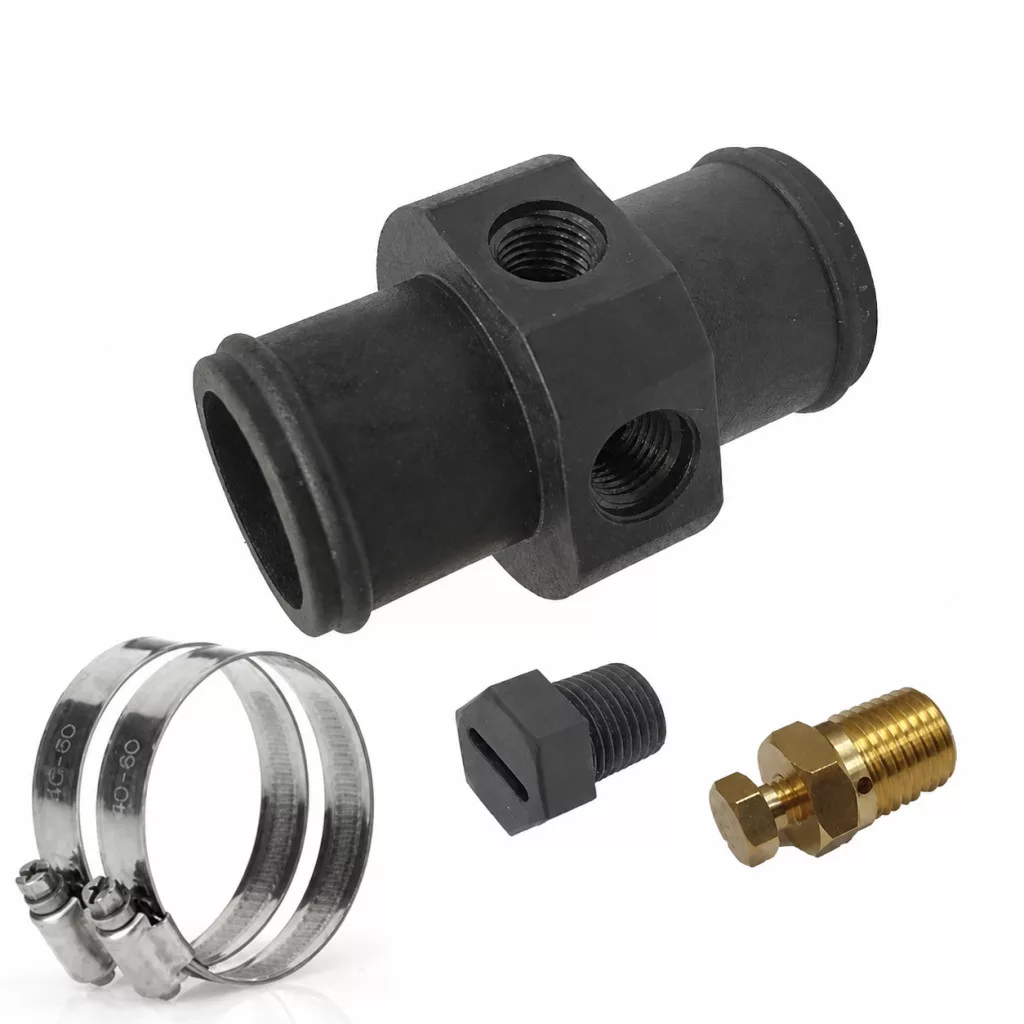

1× ¼″ NPT brass air-bleed fitting; 1× 38 mm nylon inline adapter with 2×¼″ NPT ports; 1× ¼″ NPT nylon bung; 2× hose clamps.

Selection and installation notes

Measure the hose inner diameter before ordering and verify the thread of the sensor or fitting to be installed. Only open the cooling system when cold, and complete cutting, fastening, sealing, refilling and bleeding in line with the vehicle and Davies Craig instructions. No vehicle-specific compatibility is claimed; seek professional verification if unsure.
