Davies Craig Digital Thermatic® Fan Controller (Switch) with 1/4" NPT Thermal Sensor - 0445

The Davies Craig Digital Thermatic® Fan Controller Kit is an advanced solution for controlling cooling systems. Equipped with a 1/4" NPT thermal sensor, it provides accurate temperature measurement in radiator, thermostat housing, engine block, or oil systems.

This kit includes two sensors for versatile installation:

• Sensor 1: Temperature probe for air or coolant fitment.

• Sensor 2: 1/4" NPT thermal sensor for coolant or oil measurement.

Key Features:

• Adjustable temperature range: 40°C – 110°C (104°F – 230°F)

• Dual fan control: Fan #1 starts at the set temperature, and Fan #2 starts 10 seconds later.

• IP66 rated: Protected against dust and high-pressure water jets.

• Compatibility: Suitable for 12V and 24V systems (additional relays required for 24V).

• Red LED display: Shows real-time and set temperatures in °C or °F.

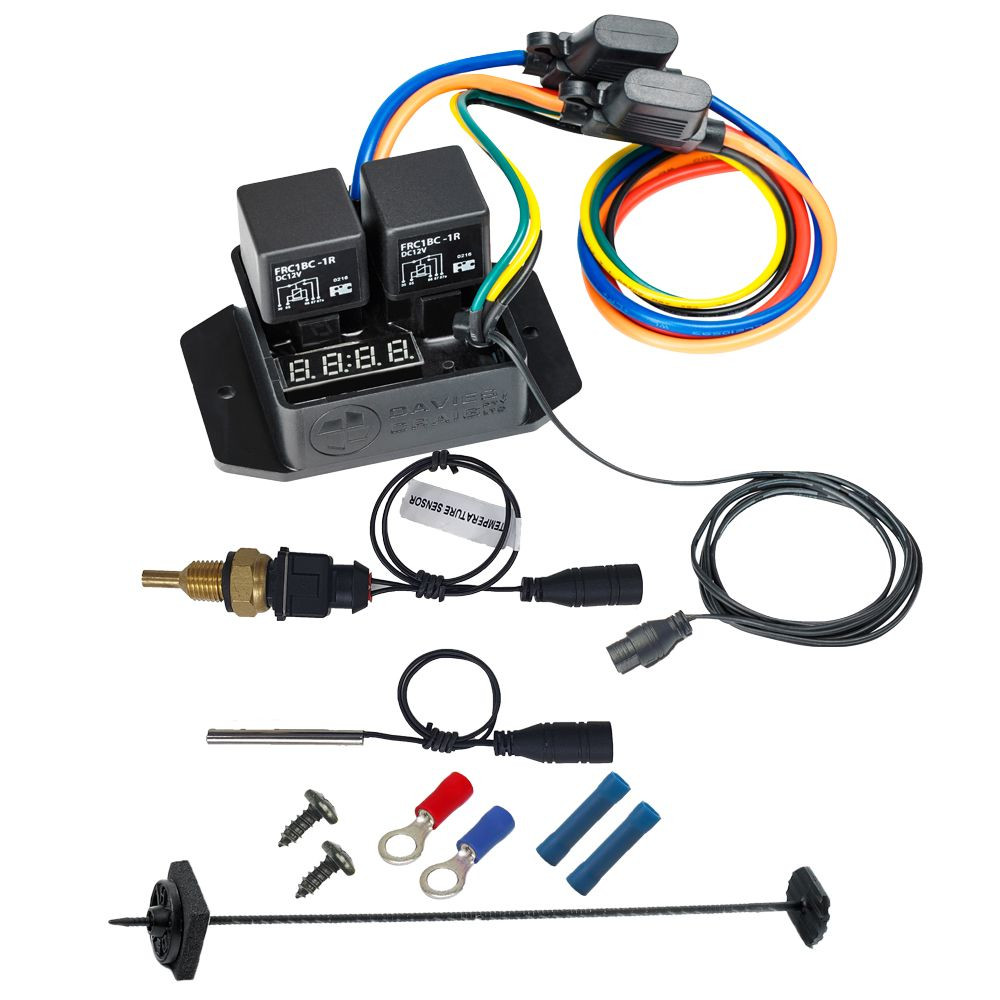

Kit Contents:

• Digital Fan Controller: 1 unit

• Temperature probe: 1 unit

• 1/4" NPT thermal sensor: 1 unit

• Mounting kit for probe: 1 unit

• Blue wire joiners: 2 units

• 6mm ring terminals (red and blue): 1 each

• Self-tapping screws: 2 units

• Installation instructions: 1 unit

Technical Specifications:

• Max Current: 40A

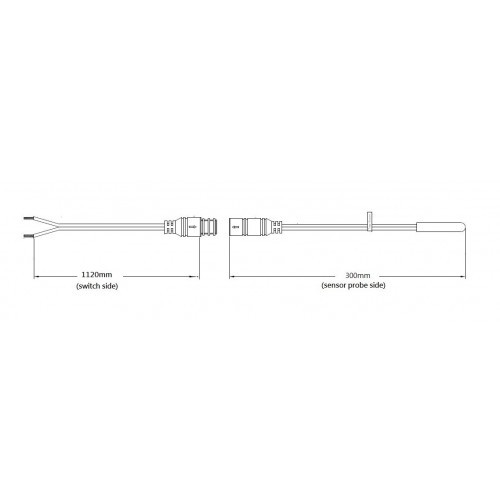

• Sensor wire length: 320 cm

• Dimensions: 95 x 65 x 56 mm

• Accuracy: 99.9%

This kit is ideal for precise control of fans, electric water pumps, or cooling systems, enhancing engine performance and longevity.
