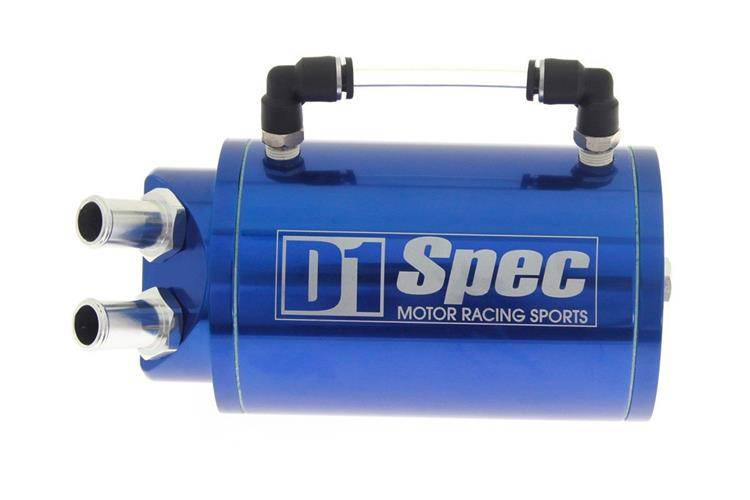

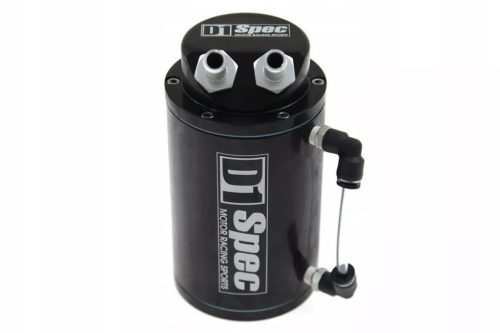

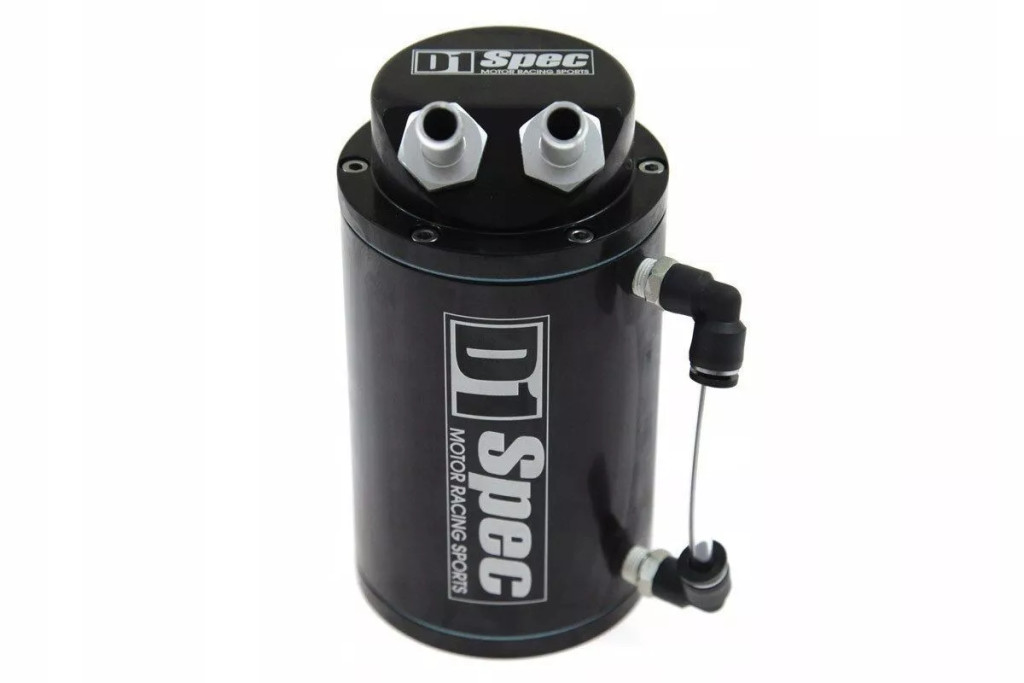

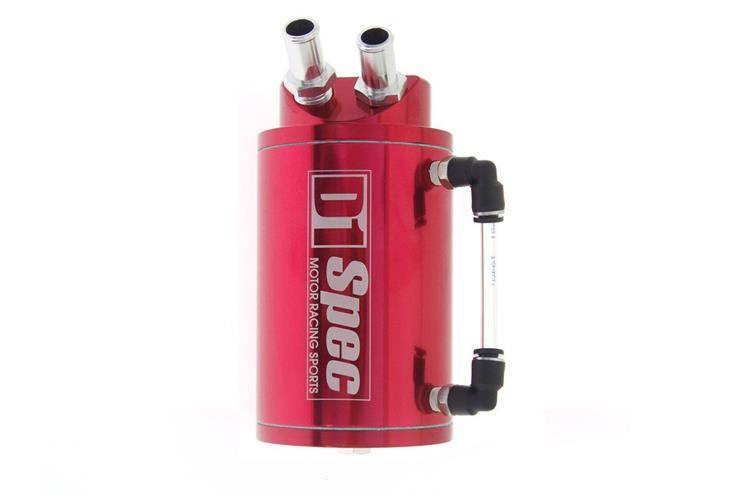

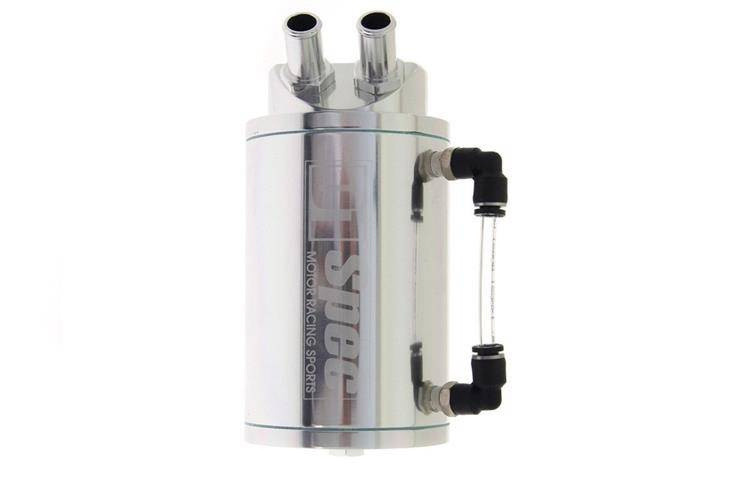

Key Features & Benefits – D1 SPEC oil catch can 0.6 liter
The D1 SPEC oil catch can 0.6 liter is a universal can designed to capture oil mist and moisture in a crankcase ventilation line. It uses 10 mm inlet and outlet ports, fitting setups where this hose/port size is required.

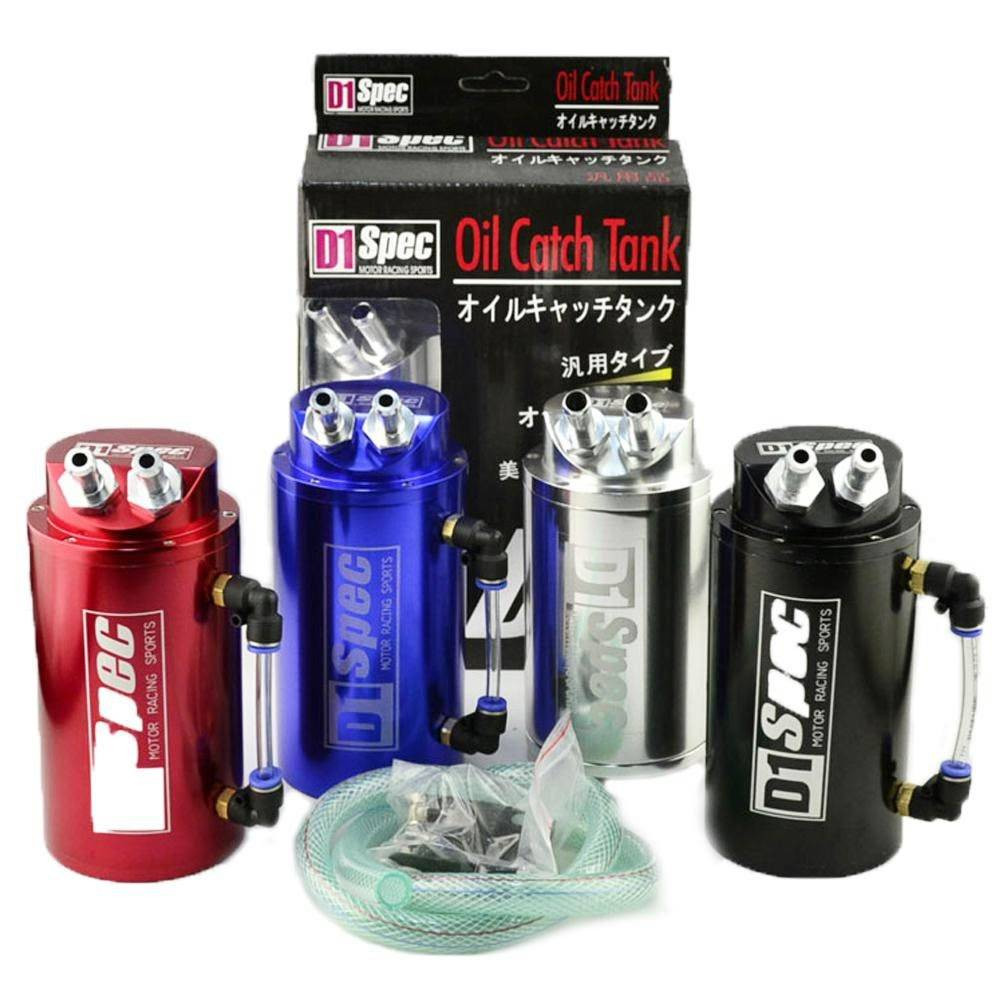

The compact body is easier to place in an engine bay, and the kit includes mounting hardware and hoses. It is available in 4 colors: red, blue, black, silver.
When is this useful?
It is useful when you want a separation point in the breather line and you plan the routing so oil mist can drop out inside the can rather than continuing through the intake-side plumbing.
Technical specs
- Capacity: 0.6 liter
- Dimensions: 125 mm height, 80 mm diameter
- Ports: 10 mm inlet and outlet
- Colors: red, blue, black, silver
- In the box: mounts and hoses
Selection & installation tips
- Port size check: confirm your hoses and clamps match the 10 mm ports for a secure seal.
- Mounting position: choose a stable point where the can can sit upright and the hoses will not kink.
- Hose routing: keep the run clean and supported, avoiding tight bends and tension that can pull on the ports.
- Bracket security: mount the brackets so vibration cannot loosen the assembly or load the fittings.
- Service access: leave room for inspection and draining so the can remains easy to maintain.
Before installation, verify port size, available space, and hose routing on your vehicle, then compare those requirements to the dimensions and connection specs listed above.
