Bosch Motorsport 2 in 1 Fluid Pressure and Temperature Sensor 10 bar, M10x1
The Bosch Motorsport 2 in 1 fluid pressure and temperature sensor provides separate signals for pressure and temperature from one measuring point. It features 0–10 bar relative pressure range, -40 to 150 °C compensated range, M10x1 thread, 5 V supply and Bosch Trapezoid connector. It fits systems where the mechanical mounting, sealing surface and control-side wiring match these sensor requirements.
Net price: 60 €
Key Features & Benefits – Bosch Motorsport 2 in 1 fluid pressure and temperature sensor 10 bar
The Bosch Motorsport 2 in 1 fluid pressure and temperature sensor 10 bar is a combined sensor that delivers separate pressure and temperature signals from one measuring point. With M10x1 thread, cone sealing surface and a Bosch Trapezoid connector, it suits systems that match these mechanical and electrical parameters.
In the Bosch Motorsport range this sensor is listed as Pressure Sensor Combined PST-F 1; the Bosch order number is 0 261 544 01F, and 0261230482 is also widely used as an earlier market reference. The pressure output is a 0.5 to 4.5 V ratiometric signal, while the temperature channel is provided separately, so two measurements can be taken from one installation point.
When is this useful?
This is useful when you want to monitor pressure and temperature at one point in an oil or fuel system, and you need compact packaging, simpler wiring and direct connection to most control units.
Technical specs
- Model: Bosch Motorsport Pressure Sensor Combined PST-F 1
- Bosch numbers: 0 261 544 01F / 0261230482
- Pressure range: 0 to 10 bar relative
- Temperature range: -40 to 150 °C compensated range
- Supply voltage: 4.75 to 5.25 V
- Pressure output: 0.5 to 4.5 V ratiometric at 5 V supply

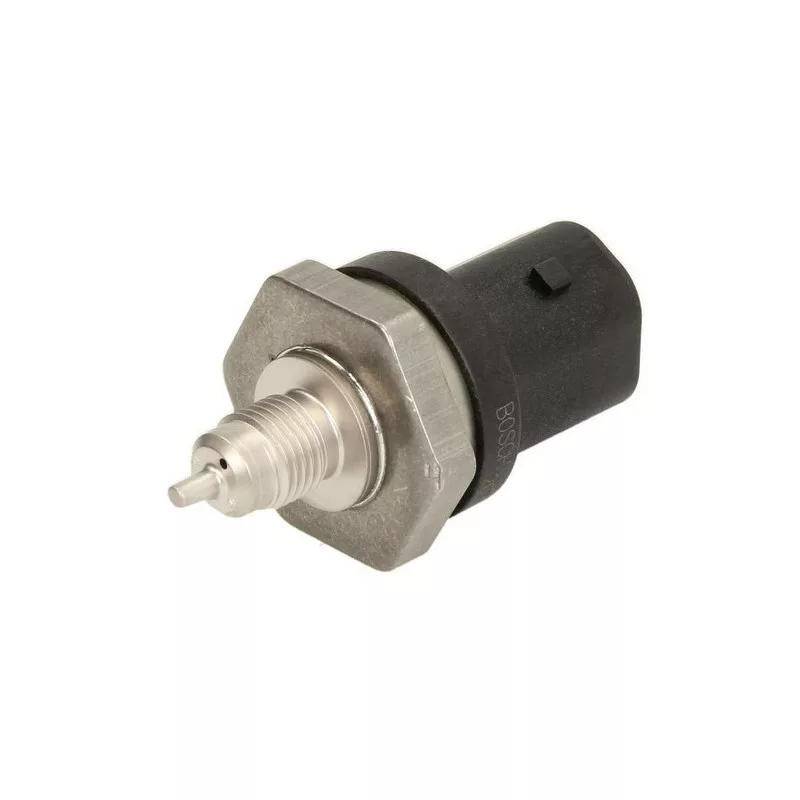

- Thread and installation: M10x1 thread, 27 mm wrench size, 24 Nm installation torque, cone sealing surface

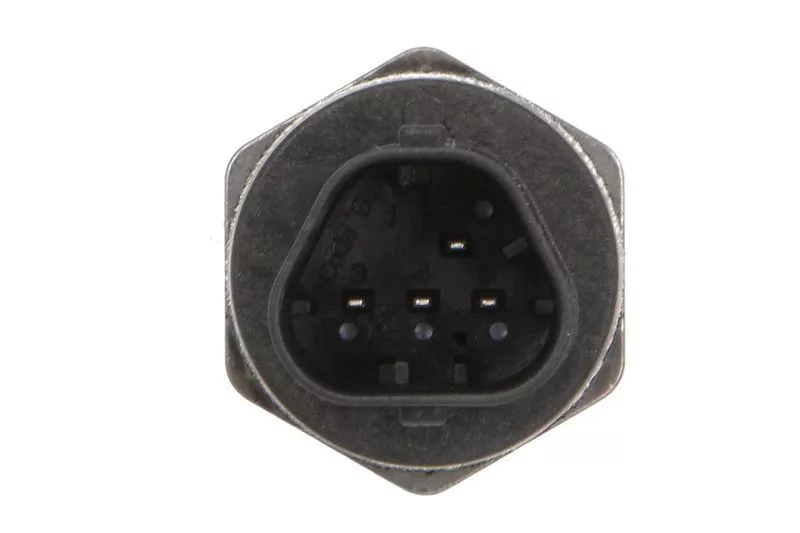

- Connector and pinout: Bosch Trapezoid, mating connector F02U.B00.751-01; Pin 2 pressure signal, Pin 3 power supply, Pin 4 ground, Pin 5 temperature signal
- Compatible media: engine oils, most gasoline and diesel fuels
Selection & installation tips
- Thread and seat: Check that the receiving port uses M10x1 thread and that the sealing surface matches the cone seat.
- Electrical side: Confirm that your control unit provides a 5 V sensor supply, a dedicated pressure input and a separate temperature channel.
- Temperature wiring: The temperature signal works best with a 4.6 kOhm pull-up resistor.
- Pressure peaks: Compare system operating and peak pressure with the 0 to 10 bar measuring range and the 20 bar maximum pressure.
- Media check: Use it with fluid types that match the sensor’s compatible media.
Before installation, verify the thread, sealing surface, connector, supply voltage and target measuring range, then compare them with the listed details.
