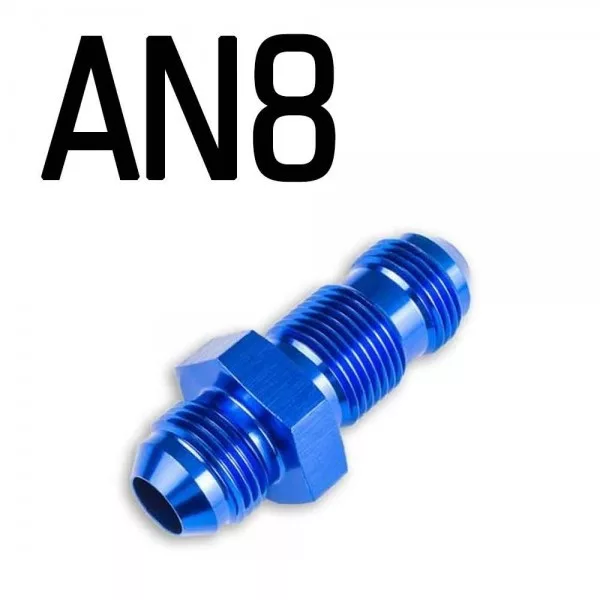

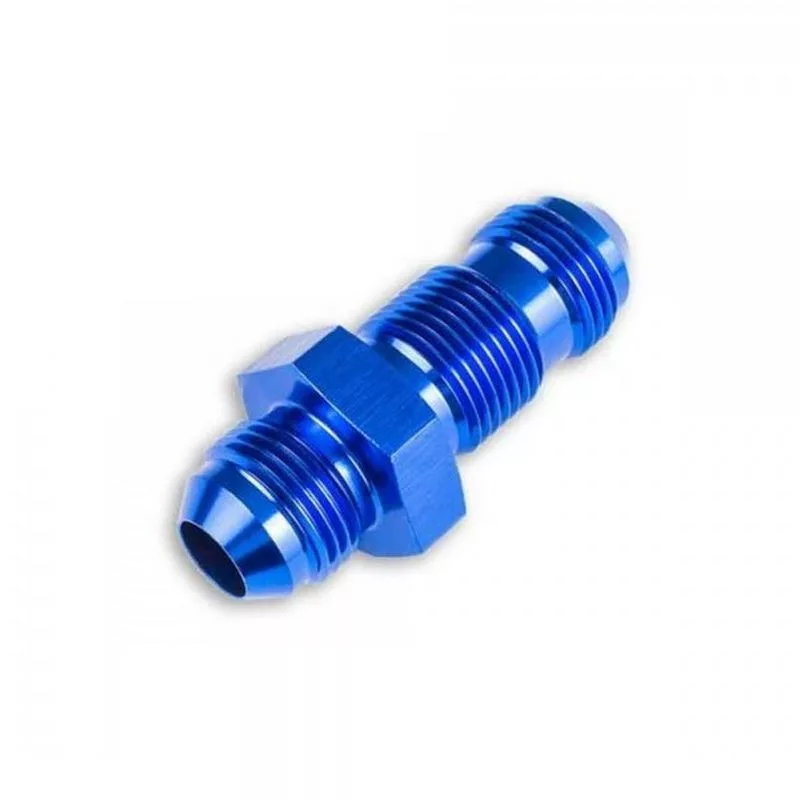

Key Features & Benefits – AN8 straight bulkhead male hose fitting
The AN8 straight bulkhead male hose fitting is a straight male pass-through fitting with a 3/4x16 UNF thread. Functionally, it suits fuel, oil and lubrication systems where an AN8 bulkhead-style connection point is needed.
The aluminum body has a blue anodized finish, which suits lightweight fluid system builds and custom line routing. For this size, the fitting uses an 11mm (7/16") hose I.D. and a 57mm overall length.
When is this useful?
This is useful when you need a straight AN8 pass-through connection across a panel, tank wall or another separated mounting point. It helps create cleaner hose routing and a more organized layout between different sections of the system.
Technical specs
- Size: Dash 8 (AN8)
- Configuration: straight, bulkhead, male
- Thread size: 3/4x16 UNF
- Hose I.D.: 11mm (7/16")
- Length: 57mm
- Material: aluminum
- Finish: blue anodized
- Application: fuel, oil and lubrication systems
Selection & installation tips
- Size check: make sure the rest of the system is built around AN8 components.
- Thread match: compare the 3/4x16 UNF thread with the installation point and the mating hardware.
- Hose side: verify that the selected hose matches the 11mm (7/16") hose I.D.
- Installation space: allow room for the 57mm length, tool access and hose routing.
- Fluid system: for fuel, oil and lubrication use, compare the fitting material, finish and layout with the rest of the system.
Before installation, verify AN8 size, thread size, hose I.D., overall length and the available space, then compare them with the listed details.
