Key Features & Benefits – AN6 SAE quick connector 5/16" (8mm) female

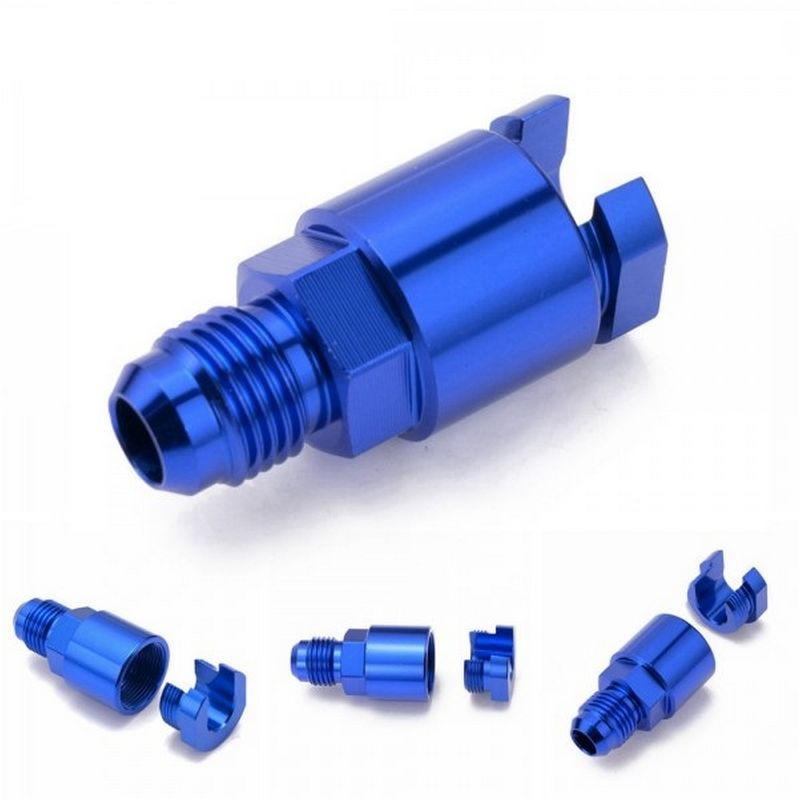

The AN6 SAE quick connector 5/16" (8mm) female is a fixed-style quick connector designed for oil, fuel, water, and air systems. The body is 6061-T6 aluminum with a blue anodized finish.
The quick-connector concept supports fast connect/disconnect where your setup needs a serviceable junction. The connection is secured by push-fit engagement, so correct thread sizing and clean sealing faces are the key points during installation.
When is this useful?
This is useful when you want a quick-break joint that combines a 6AN side with a 5/16" (8 mm) female side, and you can route the line so the connection sits without side load.
Technical specs
- Type: Quick-connect female, fixed style

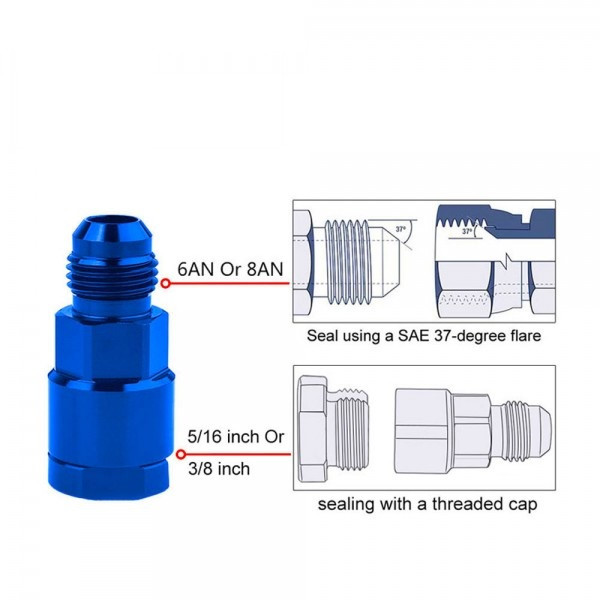

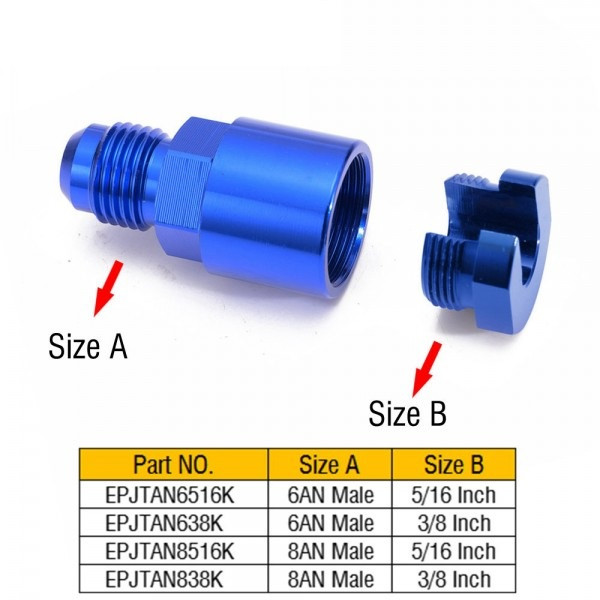

- Connection: 6AN male – 5/16" (8 mm) female
- Material: 6061-T6 aluminum
- Finish: blue anodized
- Use: oil, fuel, water, and air systems

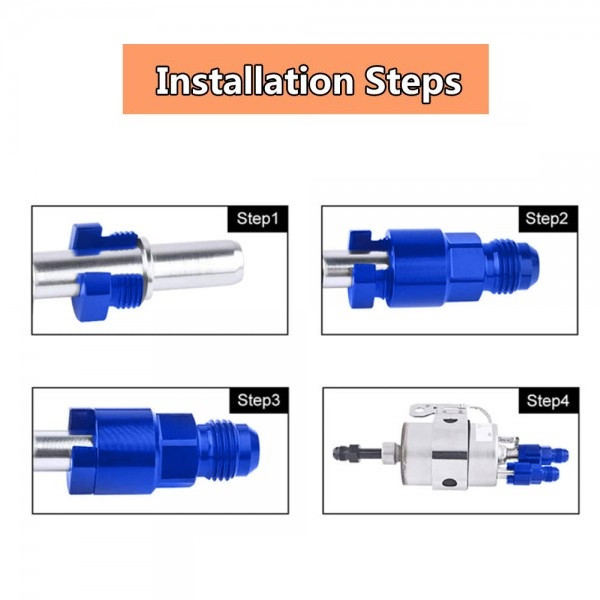

Selection & installation tips
- Thread verification: confirm your system needs a 6AN side and a 5/16" (8 mm) female interface.
- Sealing faces: keep sealing surfaces clean and use only undamaged mating parts.
- Line routing: route hoses/lines so the fitting is not pulled sideways and the joint is not preloaded.
- Access space: allow room to connect and release the quick connector during service.
- Pressure test: after assembly, pressure test and inspect the joint area for leaks.
Before installation, measure your thread/interfaces, confirm the 6AN and 5/16" (8 mm) side requirements, then set routing and sealing based on the technical specs above.
