Key Features & Benefits – AN6 quick disconnect fitting to 5/16" (8 mm)

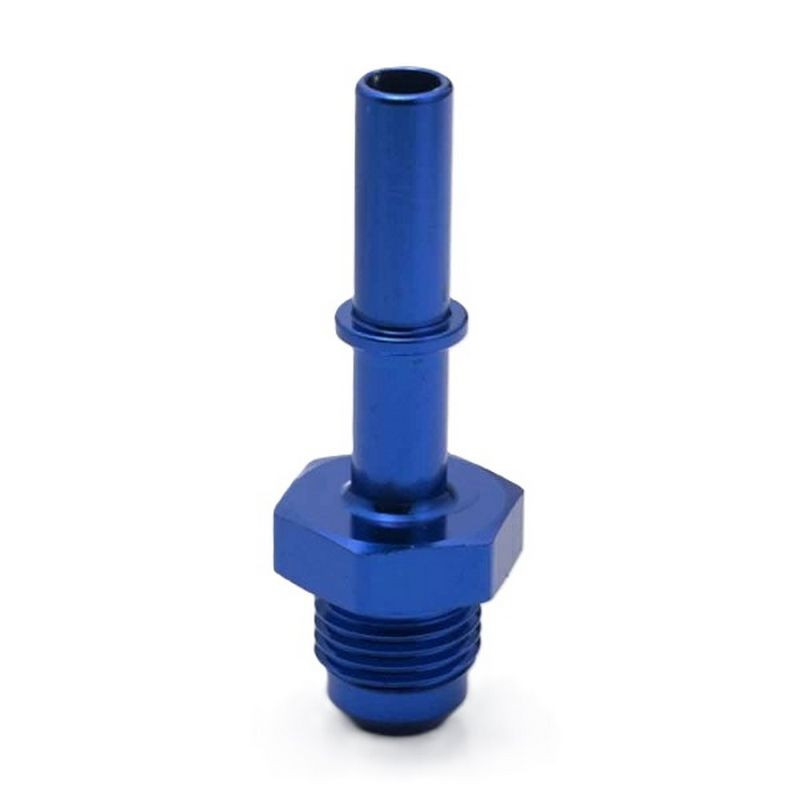

The AN6 quick disconnect fitting to 5/16" (8 mm) is a straight, aluminum connector that links an AN6 side to a 5/16" (8 mm) male quick-connect side.
The 5/16" (8 mm) quick-connect end is intended to mate with a matching 5/16" counterpart. It’s finished in blue and designed for aluminum pipe connectors.
When is this useful?

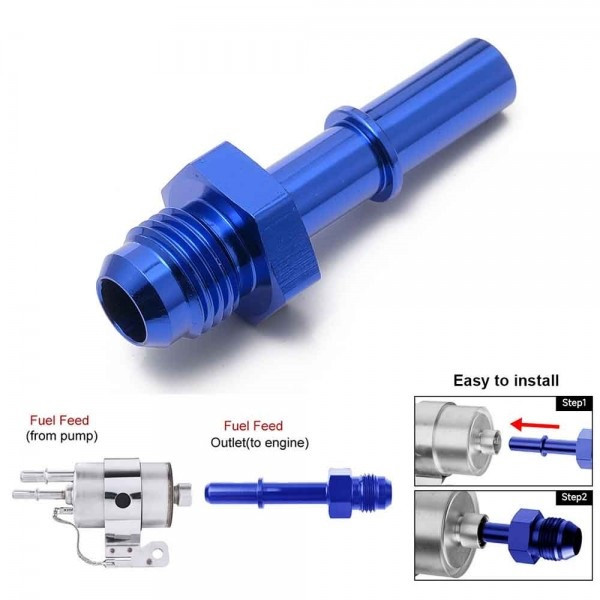

Use it when you need to interface a 5/16" (8 mm) quick-connect line with an AN6-style setup and a straight adapter fits your routing. It helps when you want a connection that can be separated and reconnected during service work.
Technical specs
- Color: Blue

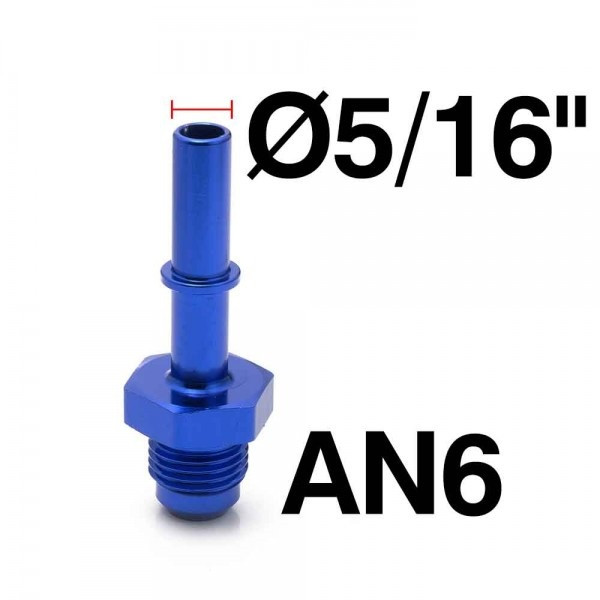

- Size: AN6 / 5/16" (8 mm)
- Type: quick connect, straight (male/male)
- Material: aluminum
- Use: for aluminum pipe connectors
Selection & installation tips
- Size check: confirm you need AN6 on one side and 5/16" (8 mm) quick connect on the other.
- End identification: verify which end is the AN6 side and which is the 5/16" quick-connect side before building the line.
- Packaging space: this is a straight fitting, so check clearance for the line routing and access to the disconnect mechanism.

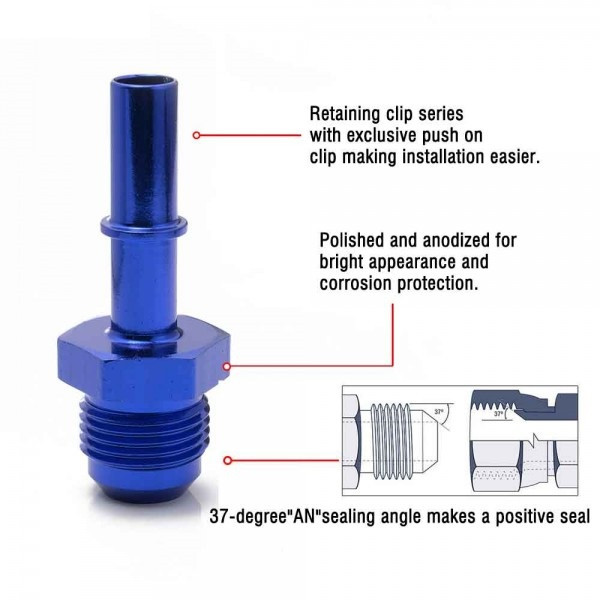

- Sealing: confirm the sealing method on the mating counterpart and replace wear parts if needed.
- Material pairing: it’s intended for aluminum pipe connectors, so keep mating surfaces clean and free of damage during assembly.
Before installation, verify AN6 and 5/16" (8 mm) quick-connect compatibility and compare your required layout to the specs above for the AN6 quick disconnect fitting to 5/16" (8 mm).
