Key Features & Benefits – AN10 braided high-pressure rubber hose with black nylon cover

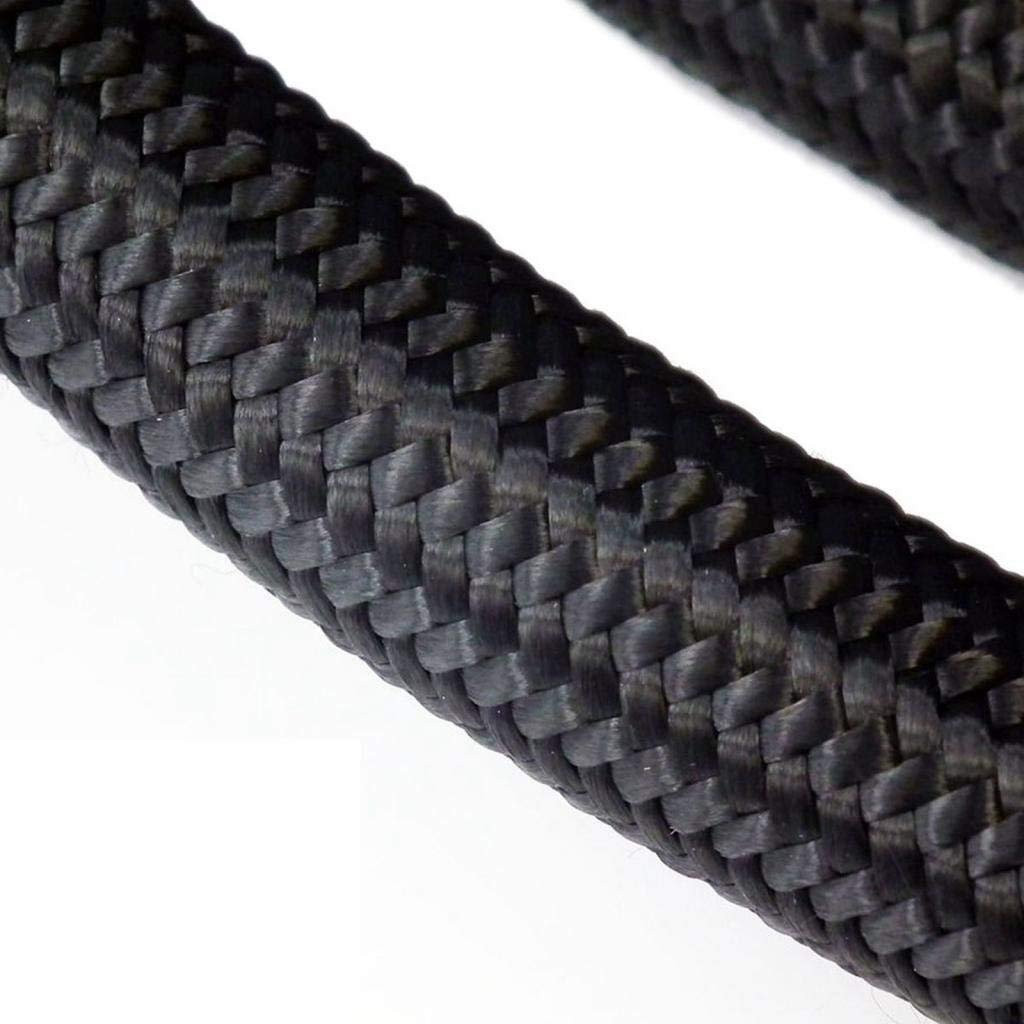

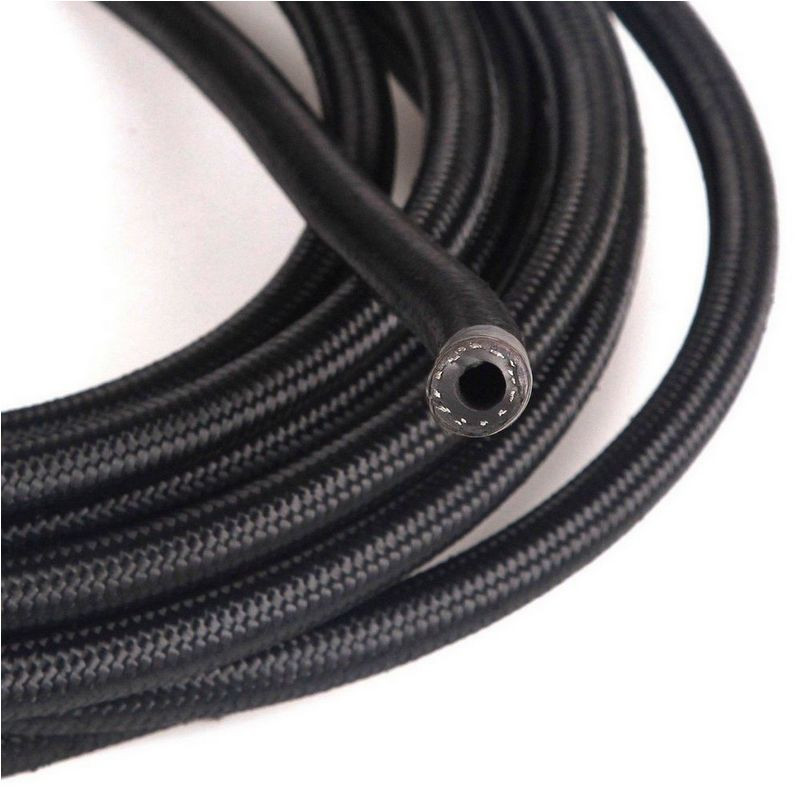

The AN10 braided high-pressure rubber hose with black nylon cover is made for AN10 (Dash 10) builds where you want a durable, tidy line for fuel, oil, or other fluid routing. Its construction combines a nitrile inner, steel braid reinforcement, and a nylon outer cover for motorsport and tuning-style installations.
It features 14.29 mm inner diameter and 20.83 mm outer diameter, with 35 bar working pressure and 138 bar burst pressure. It is not recommended for E85; for ethanol- or methanol-containing fuels, a PTFE-lined hose is the appropriate choice.
When is this useful?
This is useful when you need an AN10 line that is protected by a nylon outer layer and you want reliable routing that stays organized under vibration and potential chafing.
Technical specs
- Size: AN10 (Dash 10)
- Inner diameter: 14.29 mm
- Outer diameter: 20.83 mm
- Working pressure: 35 bar
- Burst pressure: 138 bar
- Construction: nitrile inner + steel braid reinforcement + nylon outer cover
- E85 compatibility: not recommended (PTFE-lined hose recommended for this use)
- Manufacturer: EPMAN
Selection & installation tips
- Confirm AN size: make sure your fittings and hose ends are truly AN10 (Dash 10), and that the hose OD fits your clamps and separators.
- Fuel type check: if your system runs E85/ethanol/methanol, choose a PTFE-lined hose for long-term compatibility.
- Bend & routing: avoid tight bends and kinks; route with a larger radius to reduce stress on the reinforcement.
- Protection & fixing: secure the line with clamps/line separators and keep it away from sharp edges, moving parts, and heat sources.
- Inner wall inspection: periodically inspect the hose inner wall to reduce the risk of cracking and age-related wear.
Before installation, verify AN10 sizing, planned bend routing, and your fuel choice, then compare your setup to the technical specs above to ensure the hose and fittings match correctly.
