Addco Racing Fuel Filter AN6 / AN8 / AN10 - 40 Micron

Key Features & Benefits – Addco racing fuel filter 40 micron

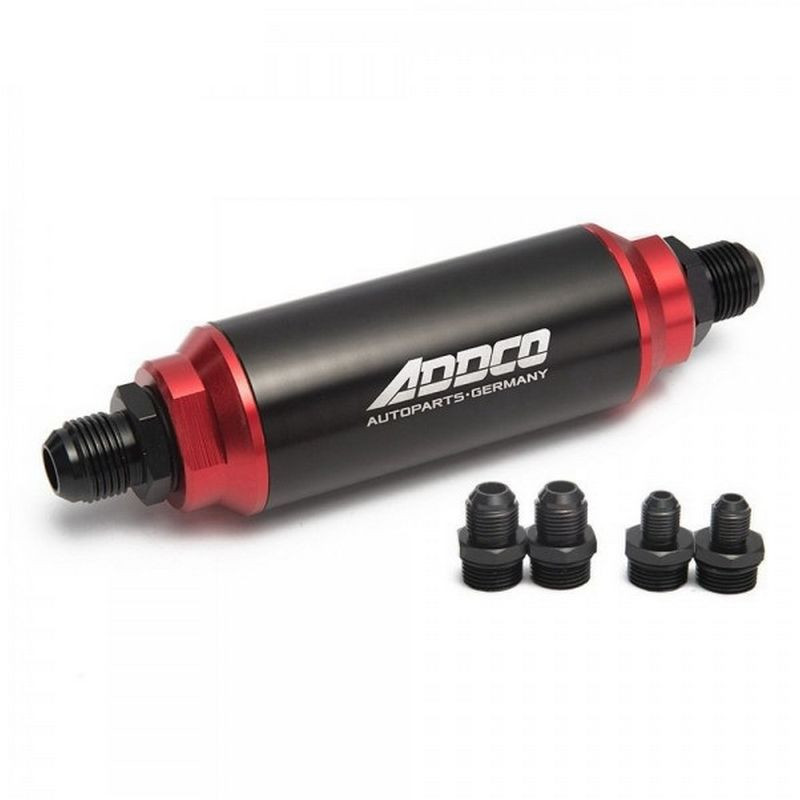

The Addco racing fuel filter 40 micron is a universal-style fuel filter that can be used with unleaded gasoline, ethanol, and alcohol. The kit includes AN6, AN8, and AN10 adapters, so the connection can be matched to your line size.

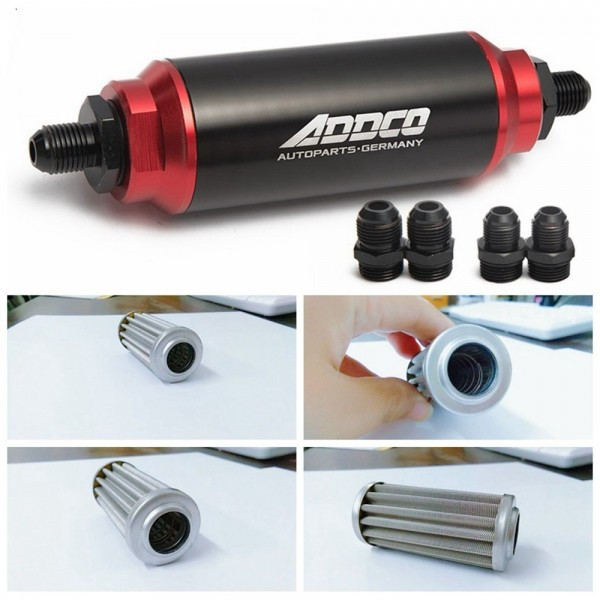

It uses a 6061 aluminium filter body and a stainless steel filter element with a 40 micron rating. The stated maximum pressure is 250 psi (17.2 bar), and the filter diameter is 44 mm.

When is this useful?

It is useful when you want a serviceable filtration point in the fuel system and you want the option to choose AN adapters to suit different plumbing layouts.

Technical specs

• Product type: Fuel filter
• Element rating: 40 micron
• Element material: Stainless steel
• Housing material: 6061 aluminium
• Maximum pressure: 250 psi (17.2 bar)

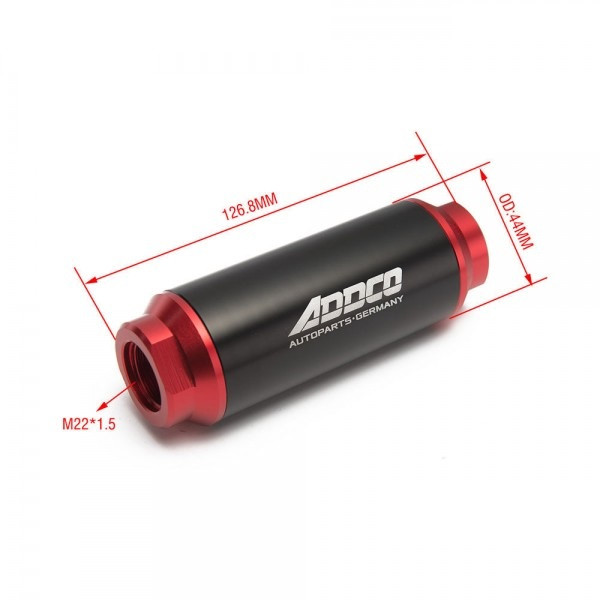

• Filter diameter: 44 mm
• Fuel compatibility: Unleaded gasoline; ethanol; alcohol

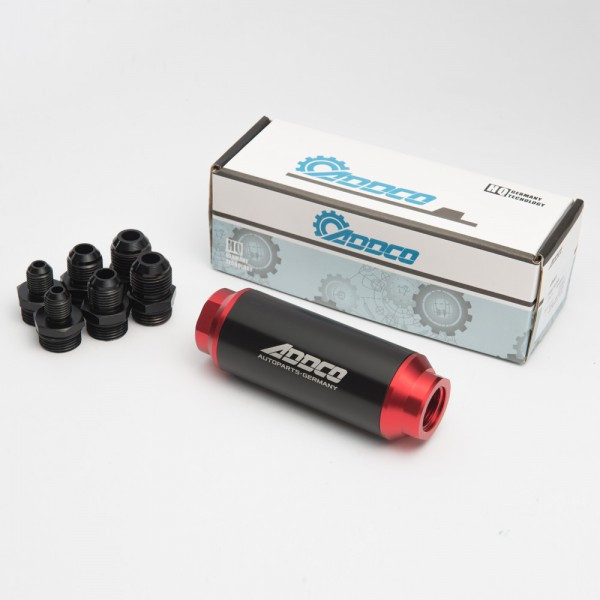

• Kit includes: 2x AN6; 2x AN8; 2x AN10 adapters
• Part number: ADF09901

Selection & installation tips

• Adapter choice: Select the correct adapter (AN6/AN8/AN10) for your hose size and verify thread/sealing compatibility with your fittings.
• Mounting space: Pick a location with service access and enough clearance for the 44 mm body diameter.
• Flow direction: Identify your system flow direction and route the lines accordingly during installation.
• Sealing check: After assembly, inspect joints under operating pressure and watch for any seepage.
• Service routine: Keep the area clean during disassembly and avoid introducing debris into the fuel system during element handling.

Before installation, verify adapter size, mounting space, and flow direction, then match them to the technical specs and the included adapters listed above.
