Key Features & Benefits – 4-hole adjustable exhaust hanger rubber red 39 57 75 mm

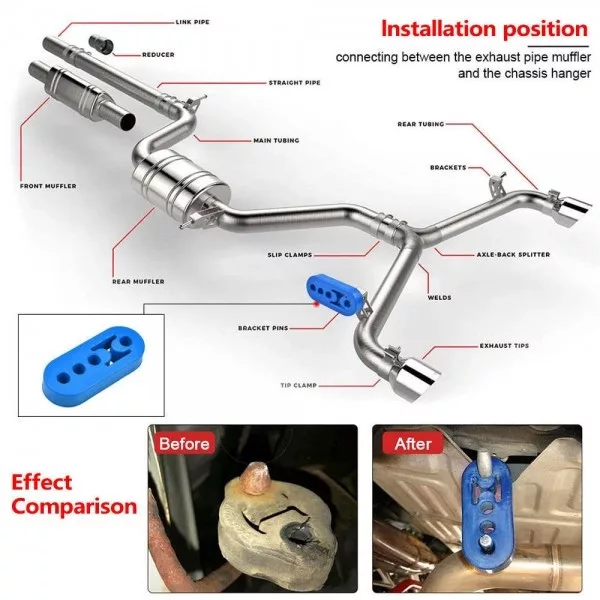

The 4-hole adjustable exhaust hanger rubber red 39 57 75 mm is a rubber insulator used between the exhaust/muffler hanger pins and the chassis mount. Fit on the pins is defined by the 11.5 mm holes, while the 39/57/75 mm centre options provide three positioning choices for fine alignment.
The rubber body isolates movement between the exhaust system and the vehicle body, helping reduce metal-to-metal contact and unwanted resonance. The red version also makes visual checks easier during inspection and service.
When is this useful?
If your exhaust sits too low, shifts under load, or tends to knock over bumps, selectable hole positions help fine-tune alignment and keep exhaust movement better controlled to reduce contact and sag.
Technical specs
- Brand: EPMAN
- Part number: EPDJ402XL-RD
- Color: red
- Material: rubber
- Design: 4 holes, 3 adjustment positions (via selected hole pair)

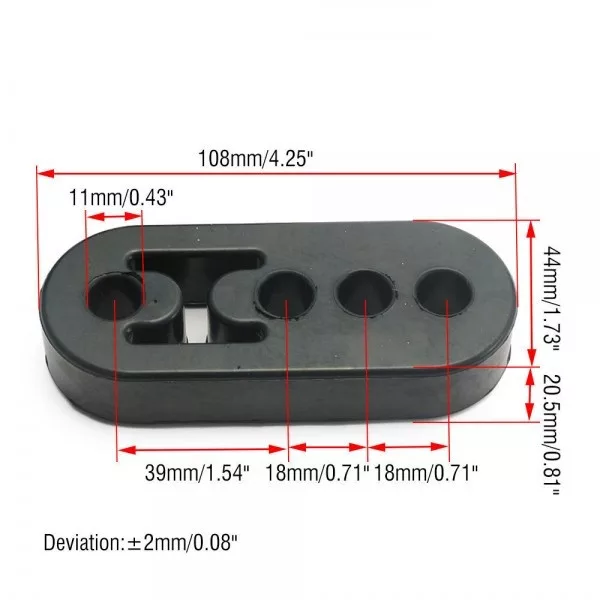

- Hole centres (centre-to-centre): 39 mm / 57 mm / 75 mm
- Hole diameter: 11.5 mm
- Weight: 61 g/pc
Selection & installation tips
- Pin diameter: measure the chassis and exhaust hanger pins and match them to the 11.5 mm hole size.
- Hole spacing: compare your current hanger spacing to the 39/57/75 mm options to ensure you have enough adjustment range.
- Clearances: after fitting, check gaps around the muffler/pipe in all directions (movement, bumps, load changes).
- Positioning: if the system sits too close to a heat shield or crossmember, switch hole pairs and re-centre the exhaust run.
- Installation: hanger pliers make removal/installation easier; cleaning the pins helps the rubber seat evenly.
For correct fitment, verify hanger pin diameter and required spacing on your vehicle, then compare them to the 11.5 mm holes and the 39/57/75 mm centre options to achieve proper exhaust position and safe clearances.
