Key Features & Benefits – 4-hole adjustable exhaust hanger rubber black 39 57 75 mm

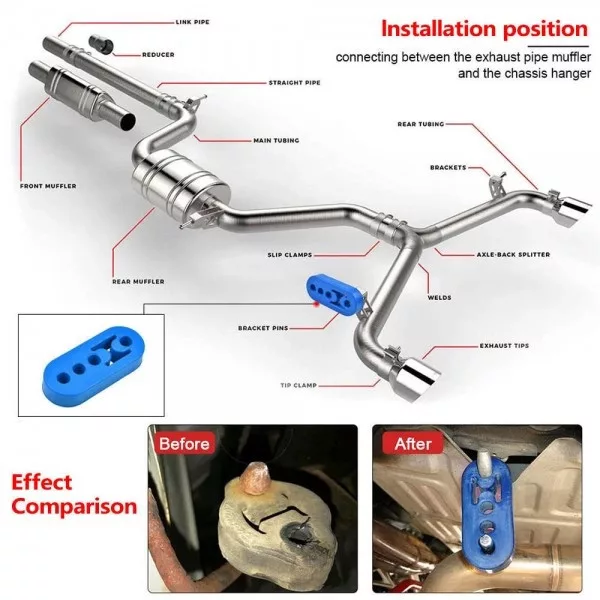

The 4-hole adjustable exhaust hanger rubber black 39 57 75 mm is a rubber insulator used between the exhaust/muffler hanger pins and the chassis mount. It’s built around 39/57/75 mm hole centres for three positioning options, and the fit on the pins is defined by the 11.5 mm holes.
The rubber body isolates movement between the exhaust system and the car body, helping reduce metal-to-metal contact and unwanted resonance. The black version suits a clean, OEM-like look while keeping the installation focused on correct clearances.
When is this useful?
If your exhaust sits too low, shifts under load, or tends to knock over bumps, the selectable hole positions help fine-tune alignment and keep exhaust movement better controlled to reduce contact and sag.
Technical specs
- Brand: EPMAN
- Color: black
- Material: rubber
- Design: 4 holes, 3 adjustment positions (via selected hole pair)

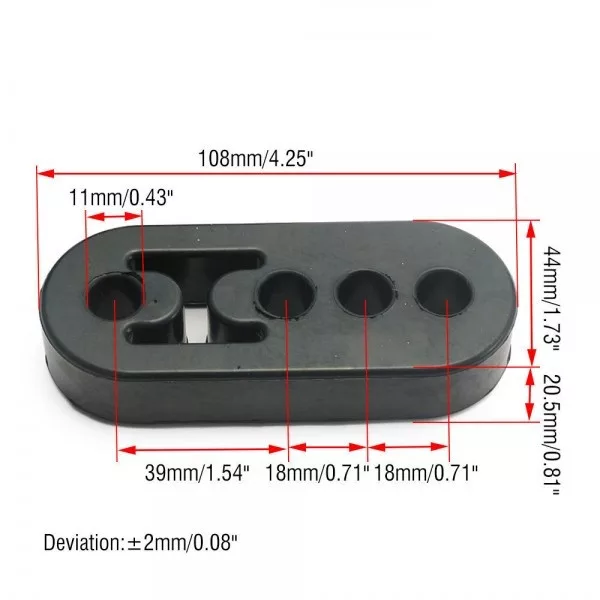

- Hole centres (centre-to-centre): 39 mm / 57 mm / 75 mm
- Hole diameter: 11.5 mm
- Overall size: 108 × 44 × 20.5 mm (±2 mm)
- Weight: 61 g/pc
Selection & installation tips
- Pin diameter: measure the chassis and exhaust hanger pins and match them to the 11.5 mm hole size.
- Hole spacing: compare your current hanger spacing to the 39/57/75 mm options to ensure you have enough adjustment range.
- Clearance: confirm there’s room for the 108 × 44 mm footprint and 20.5 mm thickness so the hanger doesn’t touch surrounding parts.
- Positioning: after installation, check exhaust alignment and clearances, then switch hole pairs if the muffler or pipe sits too close to the body.
- Installation: hanger pliers make removal/installation easier; cleaning the pins helps the rubber seat evenly.
For correct fitment, verify the hanger pin diameter and spacing on your vehicle, then compare them to the 11.5 mm holes and the 39/57/75 mm centre options to achieve proper exhaust position and safe clearances.
