Key Features & Benefits – 044 E85 Motorsport fuel pump, Bosch 044 alternative - 380 LPH
The 044 E85 Motorsport fuel pump, Bosch 044 alternative - 380 LPH is an external 044-style fuel pump for inline installation. It is designed to work with E85 (ethanol) fuel and is listed as an OEM 0580 254 044 alternative.

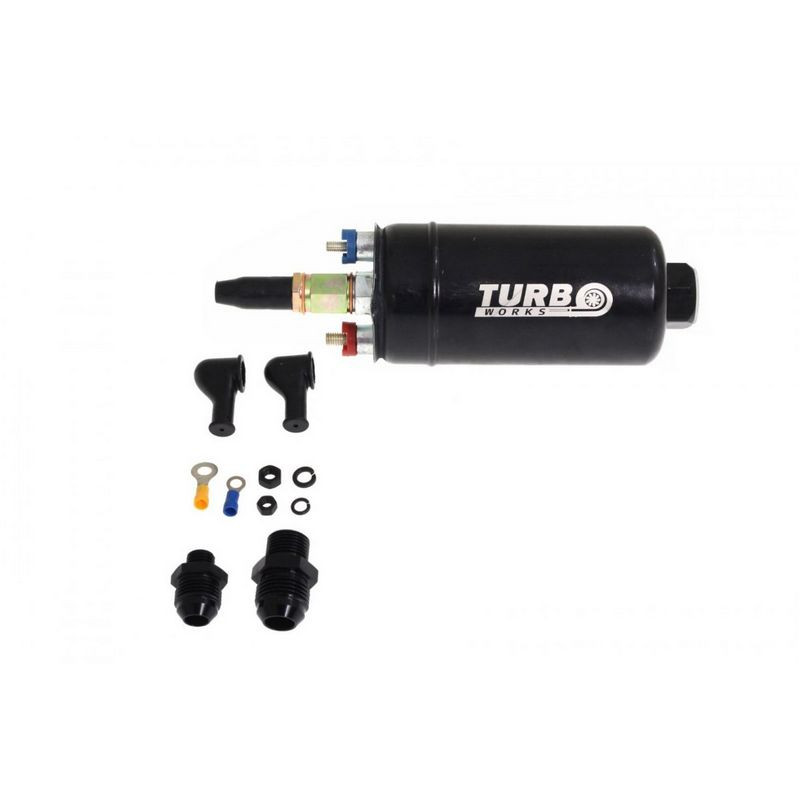

Rated flow is 380 LPH with an operating pressure of 6.5 BAR, and the body size is 205mm in length with a 60mm diameter. It can run as a standalone pump or in series with an in-tank pump, and the package includes end pieces in M18x1.5 - AN10 and M12x1.5 - AN8.
When is this useful?
This setup is useful when your fuel system layout calls for an external 044-type pump and you also want E85 capability. Series operation can also fit builds where an in-tank pump is supported by an additional external pump to maintain fuel delivery under higher demand.
Technical specs
- Brand: TurboWorks
- Part number: MP-FP-034
- Type: external 044-style fuel pump
- Flow: 380 LPH
- Operating pressure: 6.5 BAR
- Fuel compatibility: E85 (ethanol)
- OEM alternative: 0580 254 044
- Dimensions: Length: 205mm; Diameter: 60mm
- End pieces included: M18x1.5 - AN10; M12x1.5 - AN8
- Power targeting: 750 BHP NA; 650 BHP turbo
Selection & installation tips
- Ports & end pieces: confirm your hose and fittings match the included M18x1.5 - AN10 and M12x1.5 - AN8 end pieces.
- Pre-filtration: plan adequate filtration before the pump to reduce contamination load.
- Electrical supply: ensure stable power delivery with suitable cable gauge and solid grounding.
- Mounting & vibration: mount securely with vibration isolation and keep clear of moving parts and high-heat zones.
- System planning: if running in series, align pump placement and pressure control with the 6.5 BAR operating pressure figure.
Before installation, compare the 205mm length, 60mm diameter, end piece sizes, and E85 compatibility to your actual system layout, then re-check joints and leak tightness after fitting.
