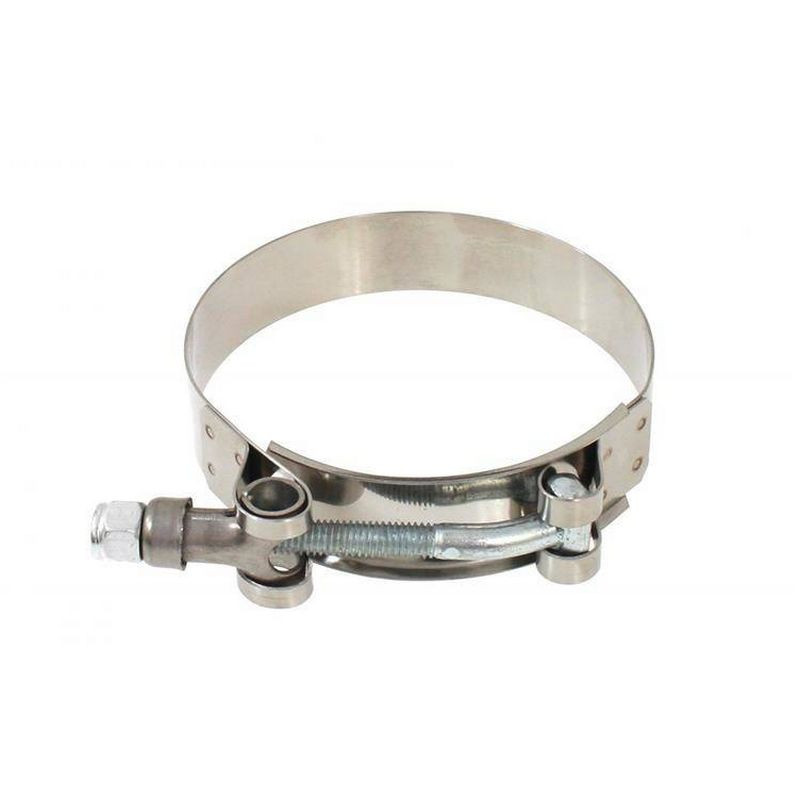

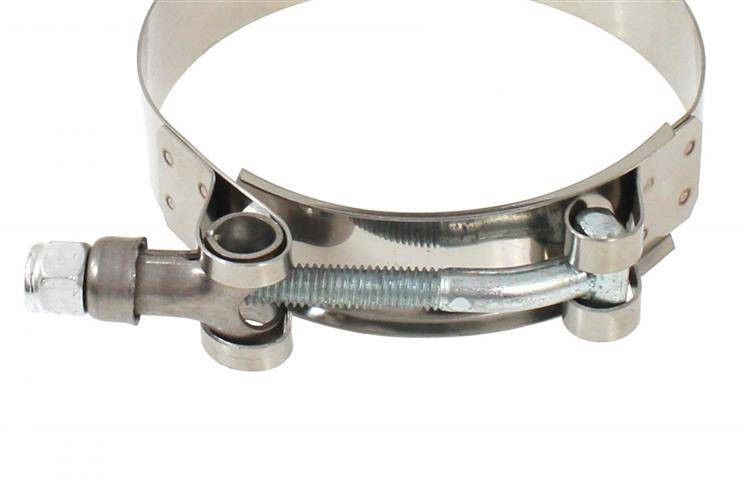

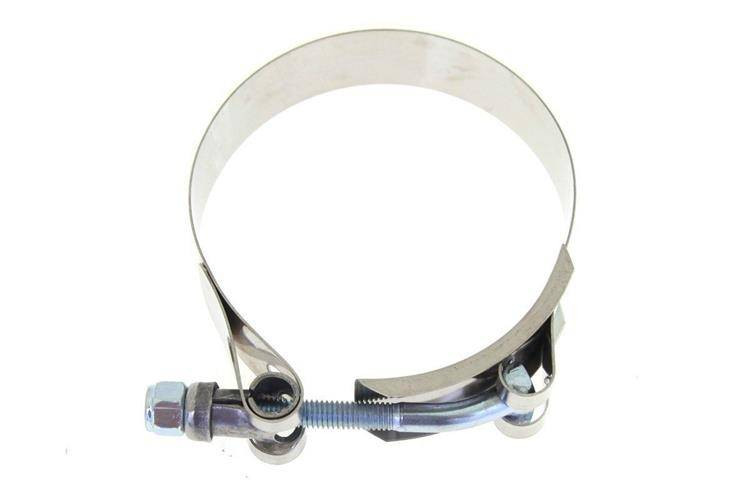

Key Features & Benefits – TurboWorks High-Clamping-Force (T-Clamp) T-Bolt Hose Clamp 73-81mm
The TurboWorks High-Clamping-Force (T-Clamp) T-Bolt Hose Clamp 73–81mm is designed for hose and pipe joints where a secure, stable clamp matters. It fits hoses with an outside diameter of 73–81mm, making it a practical choice for silicone hoses and other hose types.
Both the screw housing and band are made from AISI-304 stainless steel, and the clamp uses a 19mm wide band for broad contact on the hose. The T-Clamp construction provides high clamping force to help keep the connection stable under vibration and pressure changes.
When is this useful?
Choose it when you need a high clamping force solution for intake or boost-side hosework, especially where heat cycles and vibration can work standard clamps loose over time.
Technical specs
- Type: T-Clamp / T-bolt hose clamp
- Size range: 73–81mm
- Band width: 19mm
- Material (housing & band): AISI-304 stainless steel
Selection & installation tips
- Confirm diameter: measure the hose outside diameter at the joint and ensure it falls within the 73–81mm range.
- Check clearance: make sure there is enough room around the screw housing and T-bolt for tightening and re-checking.
- Positioning: seat the clamp just behind a bead/flange where possible to reduce the risk of the hose walking off the fitting.
- Band contact: verify the 19mm band sits flat and does not ride on sharp edges or nearby protrusions.
- Tightening: tighten gradually and re-check after the first heat cycle, as hose material and mating surfaces can settle.
Before installation, verify hose outside diameter, available clearance around the clamp hardware, and the fitting’s bead/flange geometry, then compare your measurements to the specs listed above.
