Steering angle kit BMW E36 increased angle

BMW E36 Drift Angle Kit – SWAGIER Steering Adapter Set

Steering angle kit for BMW E36 (SWAGIER Drift Kit) designed for drifting and motorsport applications. The well-engineered design allows significantly increased steering angle, improving vehicle control during drift.

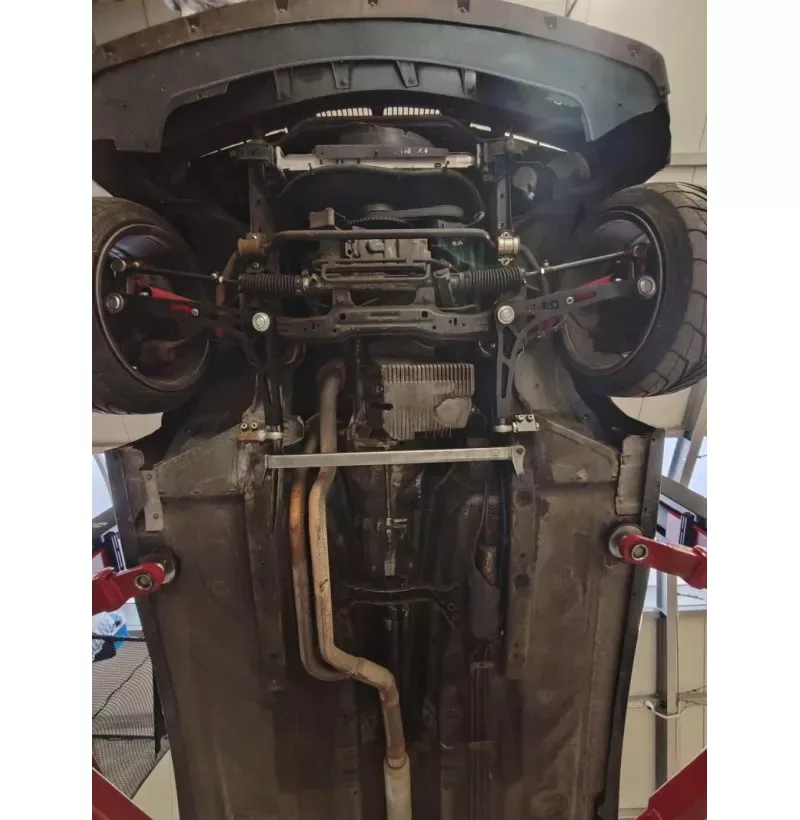

The kit widens the track by 60 mm per side (120 mm total), allowing the wheel to align with the fender when using common drift body kits.

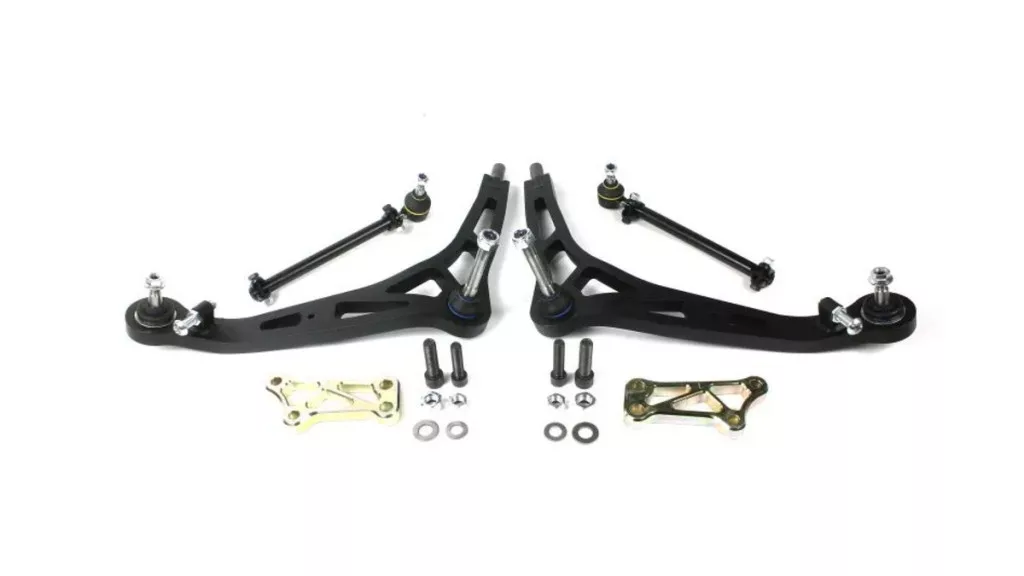

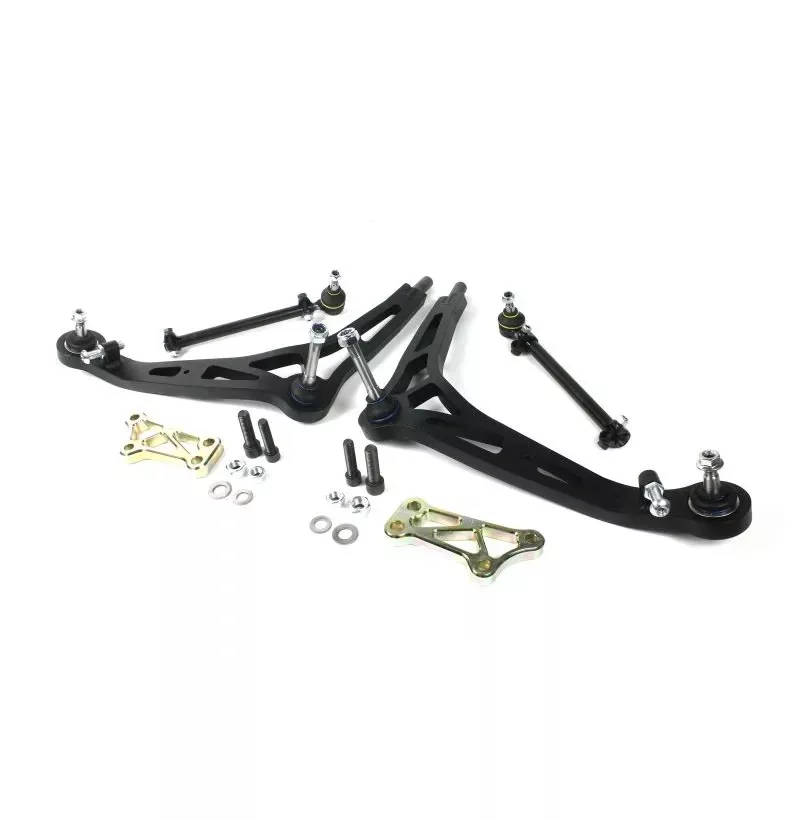

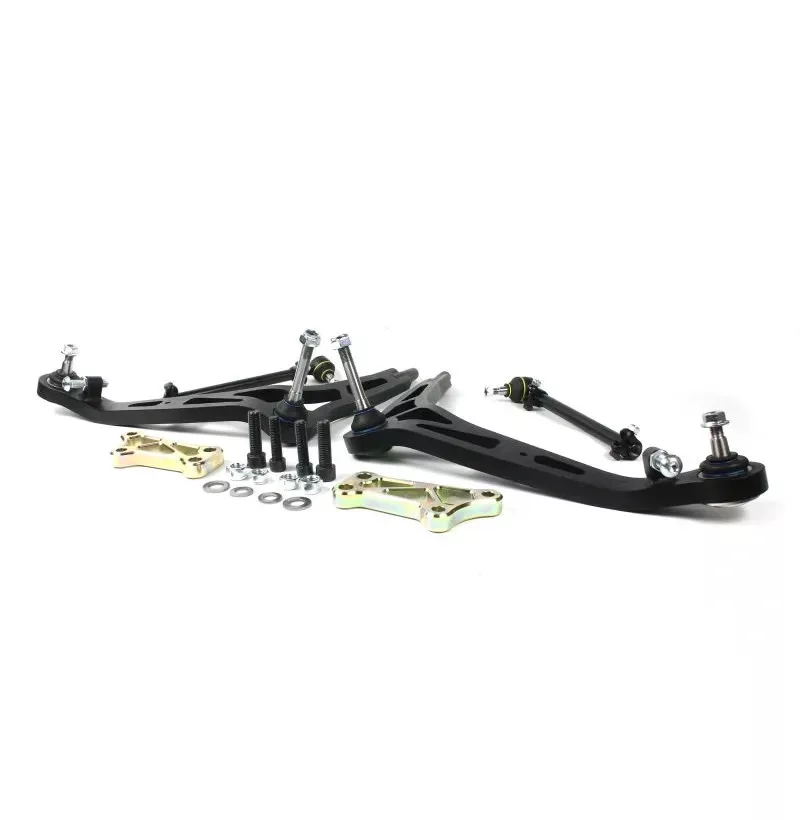

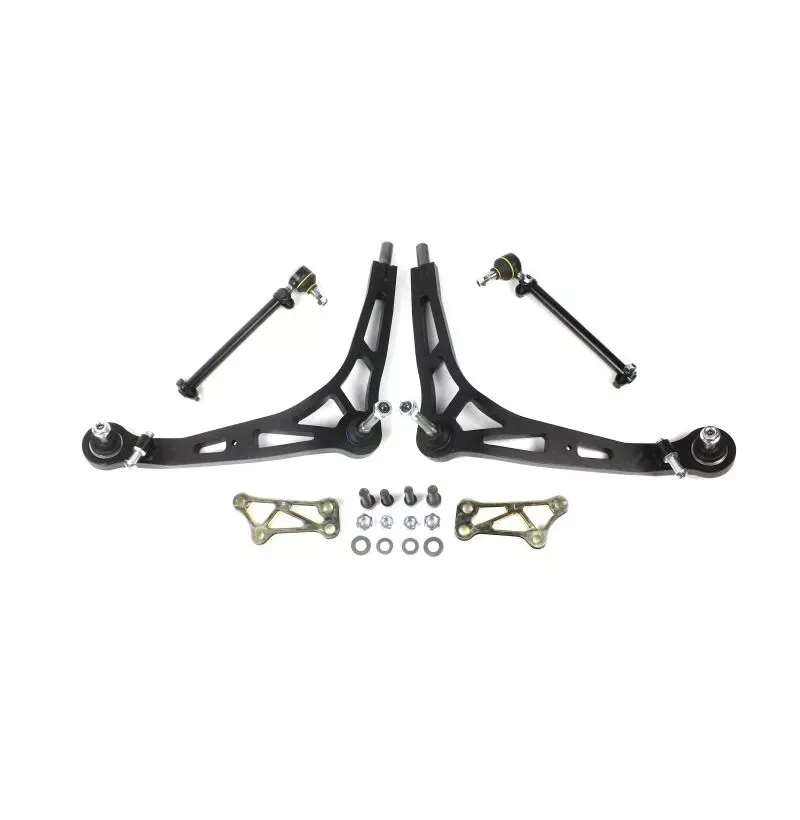

Kit includes:

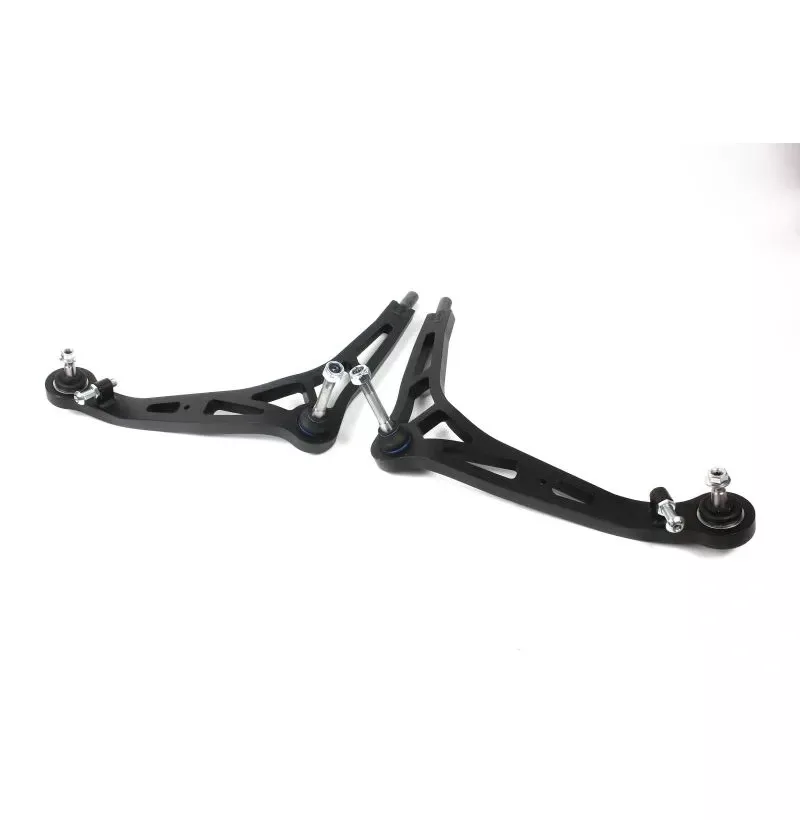

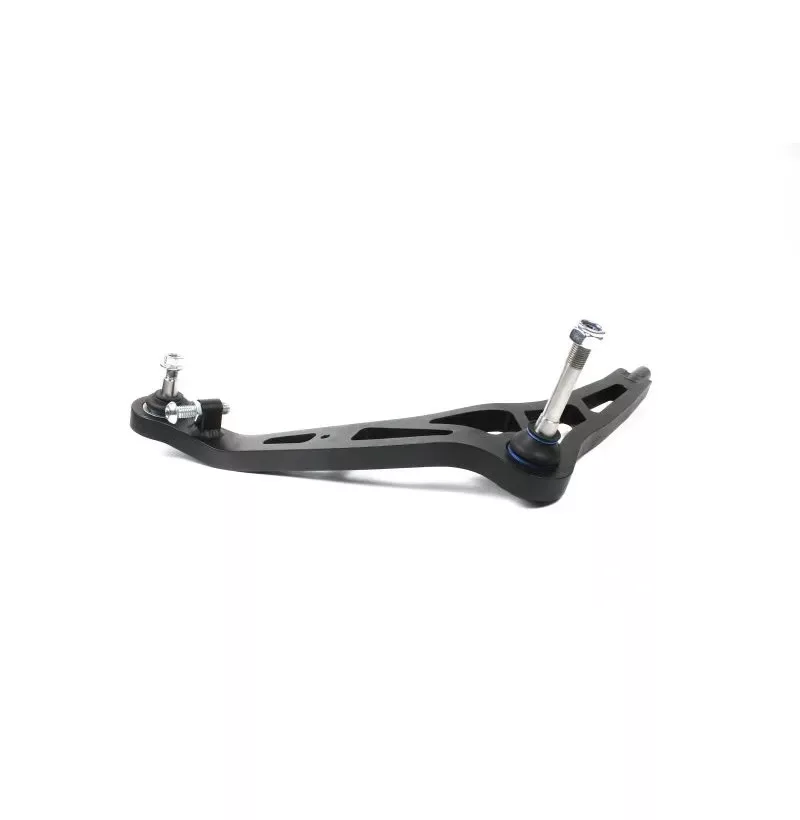

• control arms with pressed-in Meyle ball joints

• adjustable steering limiters

• Meyle tie rods

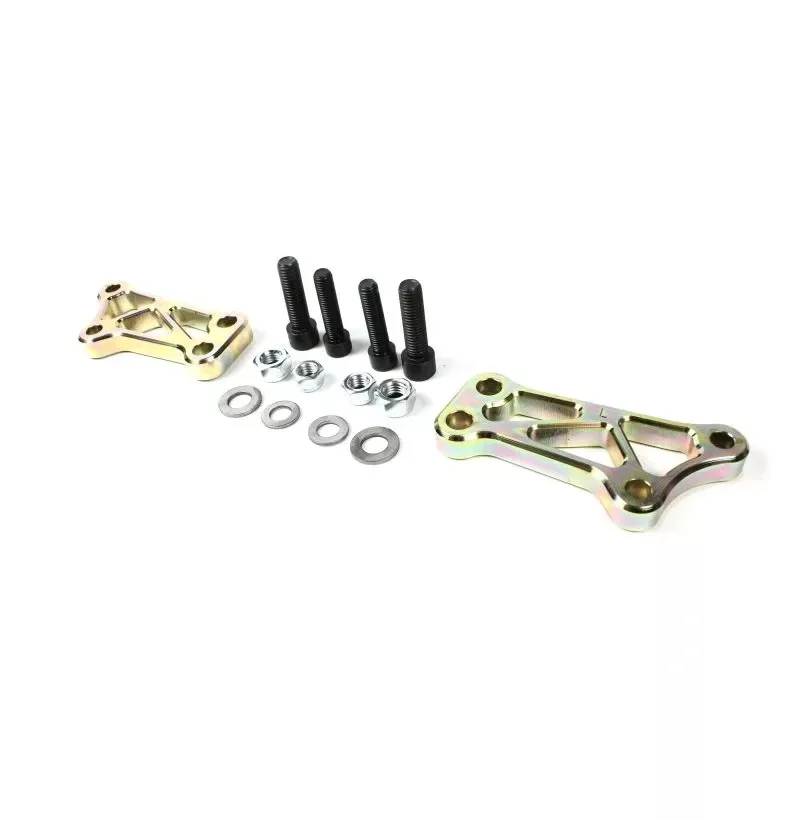

• steering angle adapters

• mounting bolts and nuts

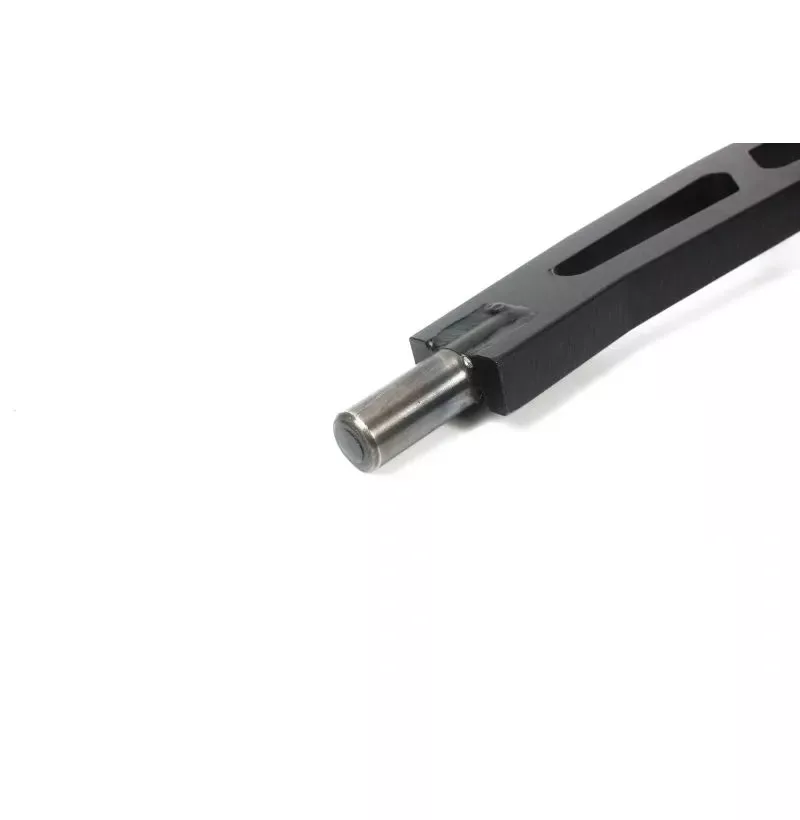

The control arms feature machined mounts for sway bar links and welded adjustable steering stops.

Recommended setup:

• shorten tie rods and ends by 15 mm per side

• toe setting approx. 20 minutes toe-out per side (40 total)

• recommended eccentric or adjustable control arm bushings

• camber plates set inward and towards the firewall

Manufactured from S355 structural steel, CNC cut, bent, and machined. Adapters are zinc coated, while control arms are black powder coated.

Made in Poland.
