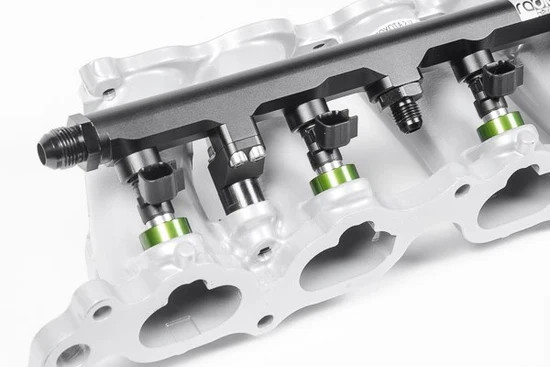

Radium Fuel Rail RAD-20-0215 – Toyota 2JZ-GTE (Top Feed Conversion)

Lightweight, precision CNC machined bolt-on fuel rail designed for Toyota 2JZ-GTE engines with the OEM intake manifold, converting the fuel system from side feed to top feed. It supports high fuel flow and is fully compatible with all fuel types, including popular alcohol blends such as E85.

Key Features

• Constructed from 6063 aluminum, black anodized for corrosion resistance and laser-etched for a premium finish.

• Large 0.69" internal diameter with 8AN ORB threaded ports providing ample flow capacity for high-power applications.

• Includes billet aluminum injector seats with 14mm injector O-rings to prevent boost leaks.

• Two sets of anodized aluminum mounting feet (tall and short) allow accommodation of various injector heights.

• Compatible with injector heights of 34mm and 48mm, suitable for popular high-flow injectors (injectors not included).

• Mounts to the intake manifold using OEM Toyota thermal insulating spacers.

• Ports allow installation of fuel pressure regulators, gauges, and pulse dampers (fittings sold separately).

Engine Compatibility

• Fits all Toyota 2JZ-GTE engines, including VVTi and non-VVTi models.

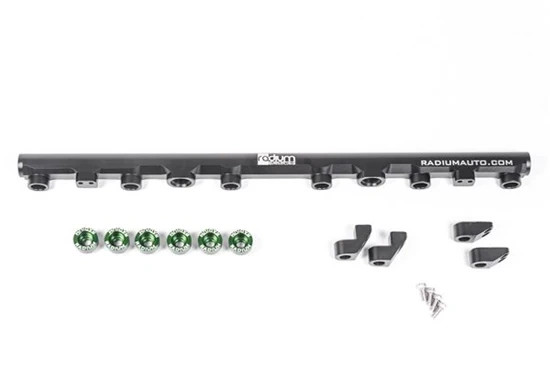

Included in the Kit

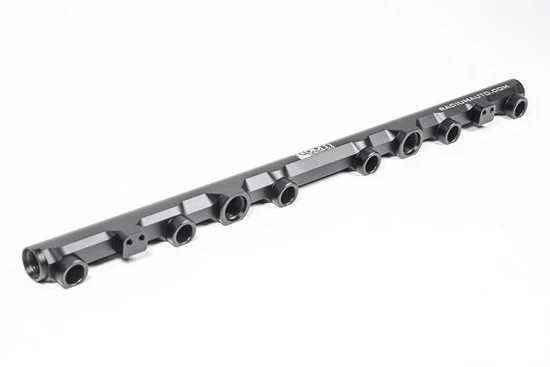

• Black anodized, laser-etched aluminum fuel rail

• Tall and short black anodized aluminum mounting feet

• Stainless steel mounting bolts (x4)

• Injector seat kit designed for 6-cylinder Toyota engines (part 20-0216-06)

Manufactured in the USA, the Radium RAD-20-0215 fuel rail offers high-quality construction, precise fitment, and reliable performance for advanced tuning and racing applications on the Toyota 2JZ-GTE engine platform
