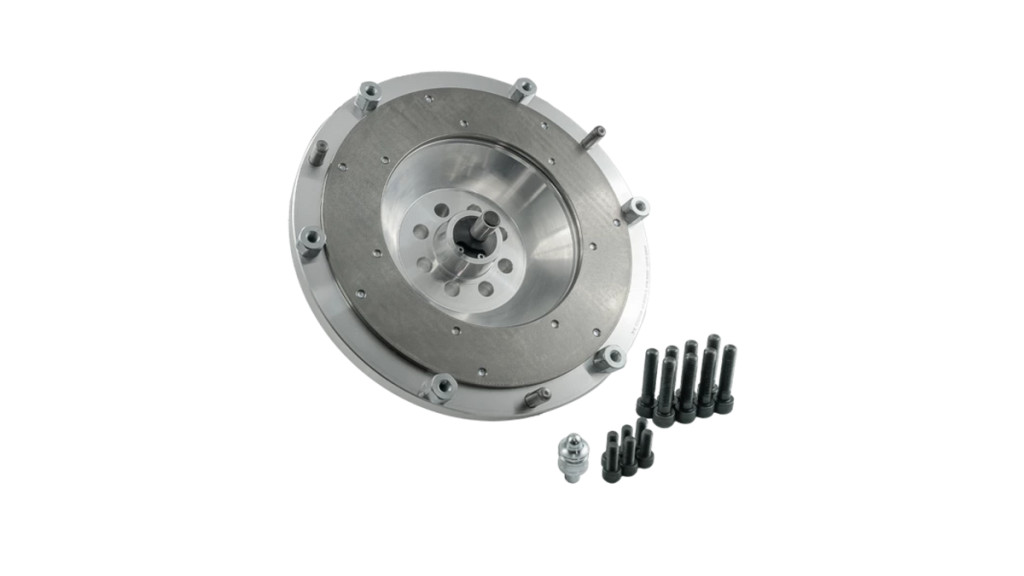

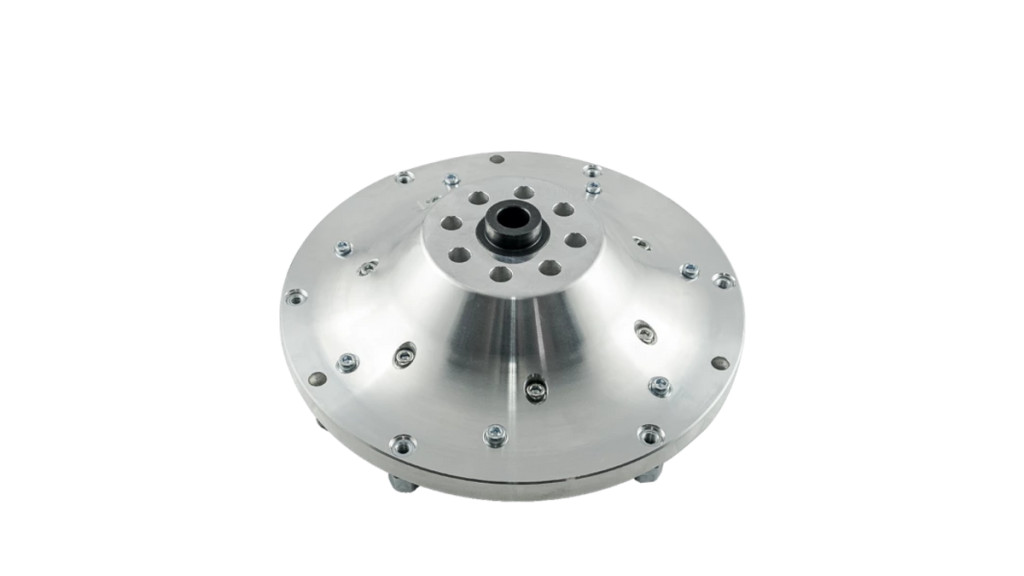

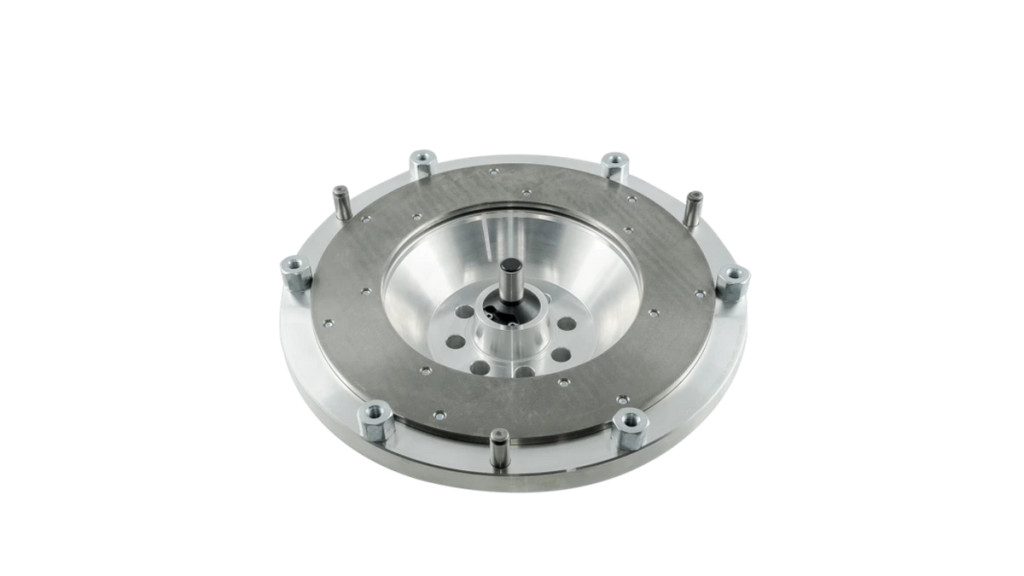

PMC Motorsport Lightweight custom aluminum flywheel Toyota / BMW B58 S58 - BMW N54 ZF GS6-53BZ 135i 335i 535i 6-speed - 240mm / 9.45"
Aluminum custom flywheel enabling to mate (SWAP / conversion) the Toyota / BMW B58 S58 engine, with the manual ZF (ZF Friedrichshafen) gearbox from BMW.
Replace the automatic transmission with a manual transmission from BMW
Why choose PMC Motorsport parts and adapters?
- Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
- Professionalism. From design to implementation, our parts go a long way. Each element for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
- Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
- Perfect alignment - our adapters guarantee an ideal fit of the engine and gearbox
- Made in EU. All our production and design departments are located in the European Union
- Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com
Engine list: | - Toyota / BMW B58 S58
- B58B30M0
- B58B30M1
- B58B30C
- B58B30O1
- S58B30T0
|
Manual BMW gearbox list (Petrol) : | - BMW ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed
- BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ HGX (THGX)
- BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGD (TJGD)
- BMW ZF (ZF Friedrichshafen) N54 E60 535i E9x 335i S6-53 GS6-53BZ JGF (TJGF)
- BMW ZF (ZF Friedrichshafen) N54 E8x 135i Z4 35i S6-53 GS6-53BZ JGK (TJGK)
|
Manual
- An adapter is required to connect the engine to the gearbox
- Use the flywheel / ring gear from the automatic version
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
- Use a 240mm clutch disc with a spline dedicate to your gearbox.
- Replace the original custom pivot pin with the one from the kit.
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
