PMC Motorsport Custom Flywheel
GM Chevrolet V8 LS - BMW M57N M57N2 E90 330D GS6-53DZ HGU HGK - 228mm / 8.98" Twin Disc

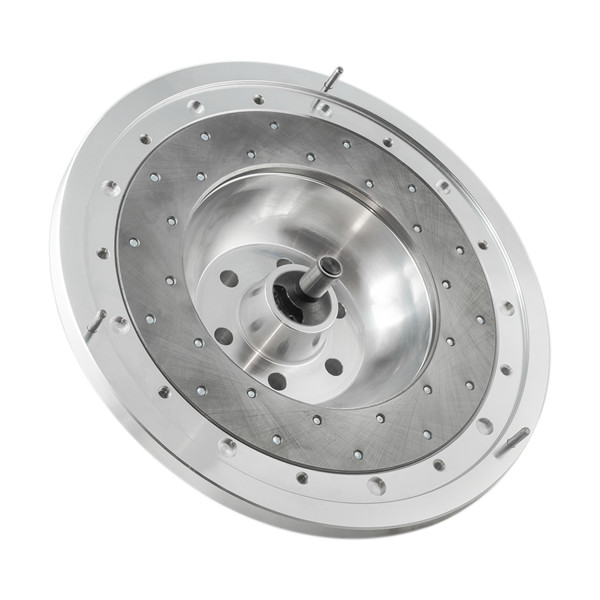

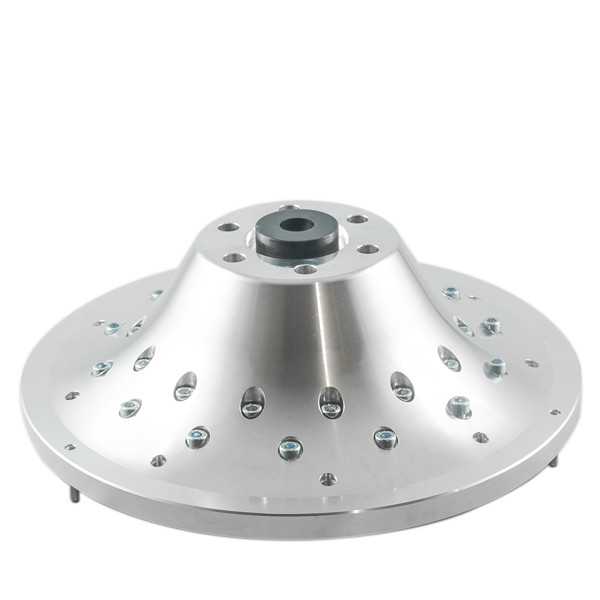

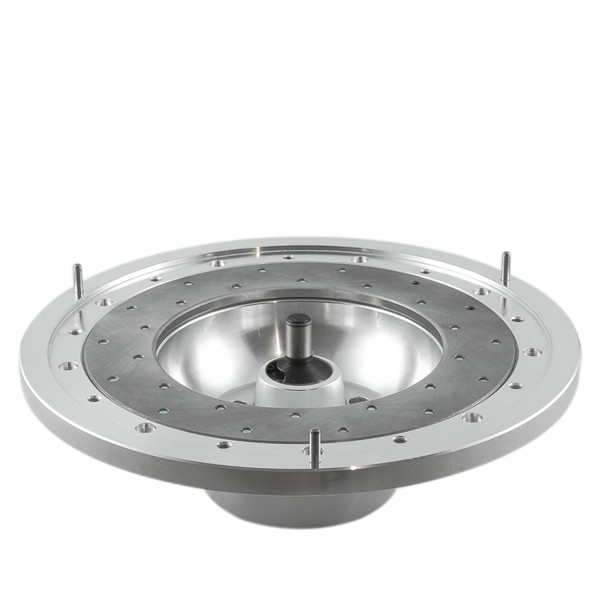

Aluminium custom flywheel designed to connect the GM Chevrolet V8 LS engine to the BMW transmission.

Designed in CAD environment.
only certified materials used in production process
CNC machining
Replaceable cast iron friction surface
Flywheel is balanced before shipment

Suitable engines:
General Motors LS
Chevrolet LS 1
Chevrolet LS 2
Chevrolet LS 3
Chevrolet LS 6
Chevrolet LS 7
Matching gearboxes:
BMW M57N M57N2 23.00 7565213 GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
BMW M57N M57N2 23.00 753 9000 GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2

Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel / rim from the automatic version
Tighten the flywheel with the same torque as the OE.
