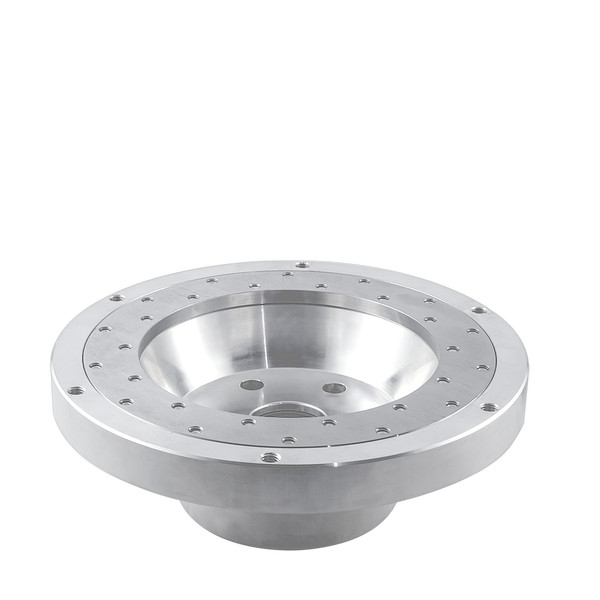

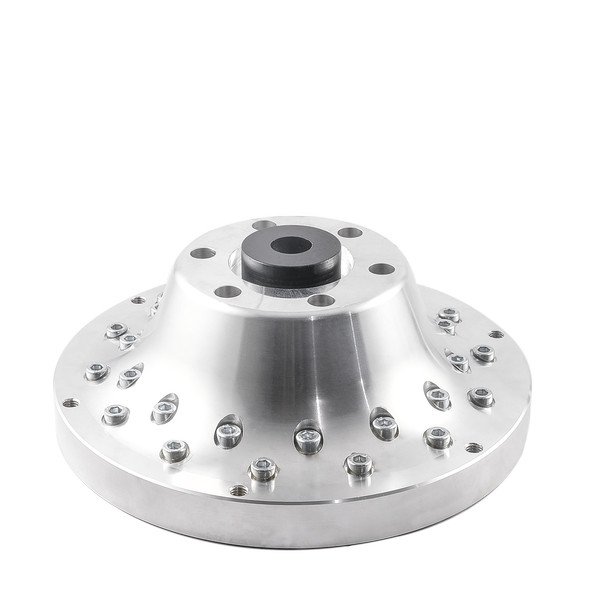

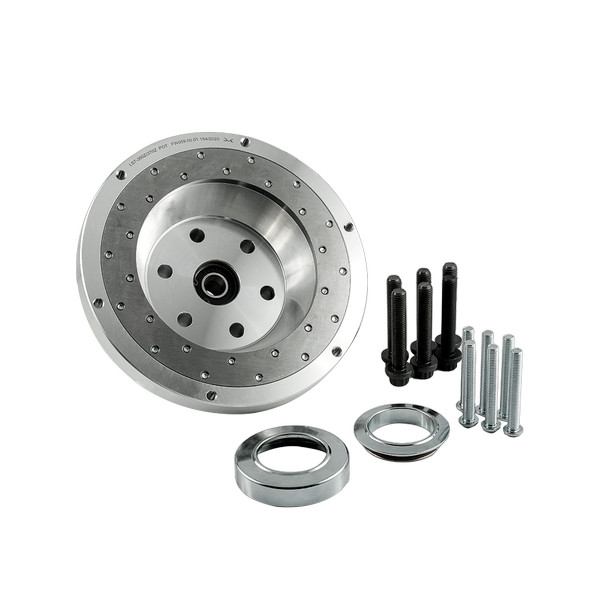

PMC Motorsport Lightweight custom aluminum flywheel
GM Chevrolet V8 LS - Nissan 350Z Z33 / Nissan 370Z Z34 - 184mm / 7.25" POT
Custom aluminum flywheel designed to mate the GM Chevrolet V8 LS engine to the Nissan 350Z / 370Z gearbox
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining

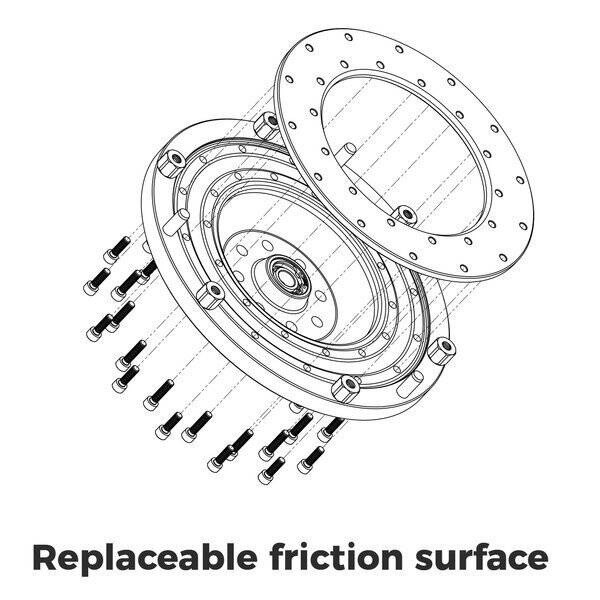

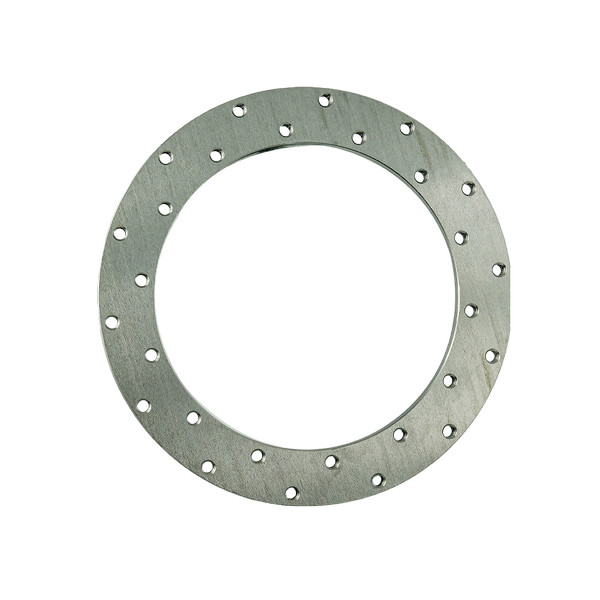

- Replaceable cast iron friction surface

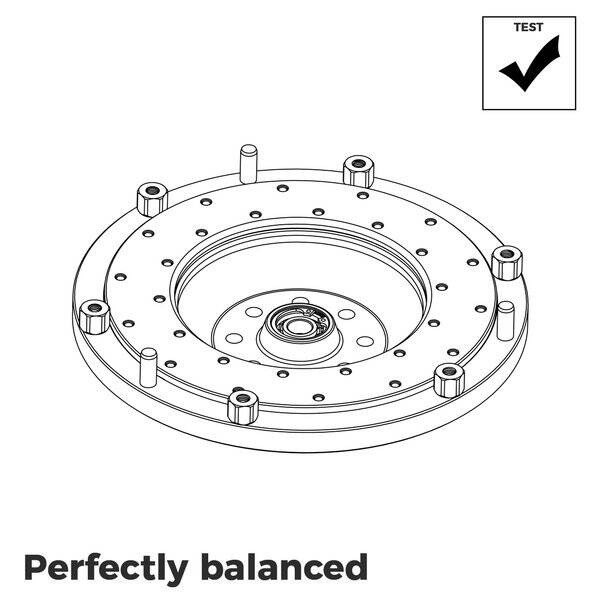

- The flywheel is balanced prior to shipment
Engine list: | - General Motors LS
- Chevrolet LS 1
- Chevrolet LS 2
- Chevrolet LS 3
- Chevrolet LS 6
- Chevrolet LS 7
|
Gearbox list: | - Nissan CD001
- Nissan 350Z type CD005 32010CD005
- Nissan 350Z type CD006 32010CD006
- Nissan 350Z type CD007 32010CD007
- Nissan 350Z type CD008 32010CD008
- Nissan 350Z type CD009 32010CD009
- Nissan 370Z 320B0-1EA0A JK40C
|
| Model | Model series | Date | Part number | | ADD |
| 350Z DE | Z33 | 06/02 -10/02 | 32010-CD000 | | 1st and 2nd Double Cone Synchro |
| | Z33 | 10/02 - 02/03 | 32010-CD003 | | 1st and 2nd Double Cone Synchro |
| | Z33 | 02/03 - 04/03 | 32010-CD005 | | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | Z33 | 04/03 - 07/03 | 32010-CD006 | | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | Z33 | 07/03 - 07/04 | 32010-CD008 | | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | Z33 | 07/04 - 11/06 | 32010-CD009 | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| 350Z HR | Z33 | 11/06 - 07/07 | 32010-JK400 | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| | Z33 | 07/07 - | 32010-JK41B | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| 370Z | Z34 | 06/09 - | 320B0-1EA0A | Non-Sport (without Synchro-rev) | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| | Z34 | 06/09 - | 320B0-1EA0B | Sport / NISMO (with Synchro-rev) | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| G35 DE | V35 | 08/02 - 02/03 | 32010-CD003 | | 1st and 2nd Double Cone Synchro |
| | V35 | 12/02 - 02/03 | 32010-CD005 | | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | V35 | 02/03 - 04/03 | 32010-CD005 | All models incl. | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | V35 | 04/03 - 09/03 | 32010-CD007 | | |
| | V35 | 09/03 - 08/04 | 32010-CD008 | | 1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro |
| | V35 | 11/04 - | 32010-CD009 | Superseded CD00A | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| G35 HR | V36 sedan | 08/06 - 06/07 | 32010-JK400 | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| | V36 sedan | 06/07 - 07/08 | 32010-JK40B | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| G37 / Q40 | V36 sedan | ALL | 32010-JK41A | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
| G37 / Q60 | CV36 Coupe | ALL | 32010-JK41A | | 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro |
RATIO:
- 1st 3.794
- 2nd 2.324
- 3rd 1.624
- 4th 1.271
- 5th 1
- 6th 0.794
- Reverse 3.446
Manual
- An adapter is required to connect the engine to the gearbox
- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
