Gearbox adapter plate BMW V12 M70 M73 - BMW M60 M62

Adapter (flange / orifice) for the BMW V12 M70 M73 S70 engine with BMW M60 M62 gearbox.

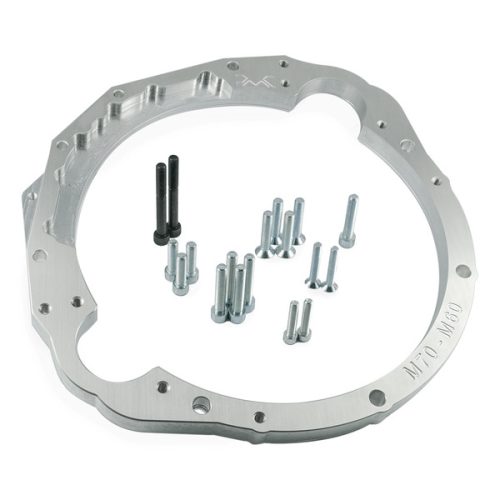

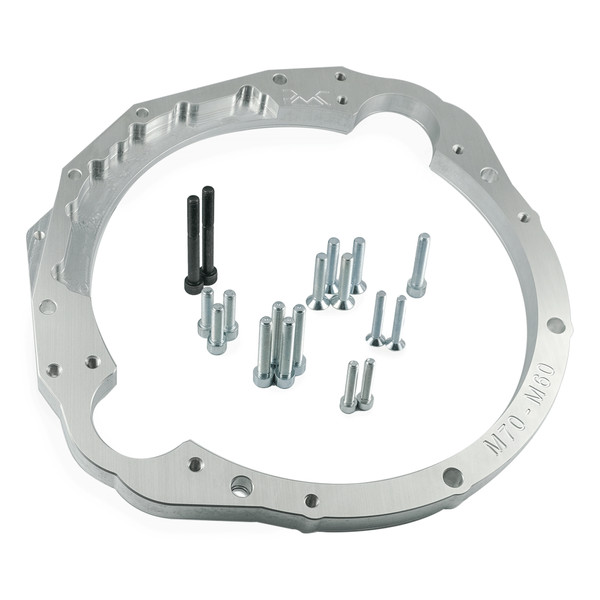

Aluminium adapter designed for the conversion (swap / connection) of the BMW V12 M70-M73 engine with gearbox from the BMW M60 M62.

Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox

Kit includes:

Aluminium adapter
Required screws
Suitable BMW engines:

BMW M70 M70B50
BMW M73 M73B54
BMW S70 S70B56 S70B60
The adapter fits engines from cars with the steering wheel on the left side.

In the case of the M73 engine, the shaft position sensor must be moved to the front of the engine as in the M70

Matching BMW gearboxes:

BMW M62 (S6S 420G GETRAG 420 540i not M3/M5)
BMW M60
A custom flywheel is required for the connection.

PMC Motorsport adapters are designed and manufactured in the European Union.
