PMC Motorsport aluminum adapter (flange / flange) Toyota Lexus V8 UZ 1UZ 3UZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen)

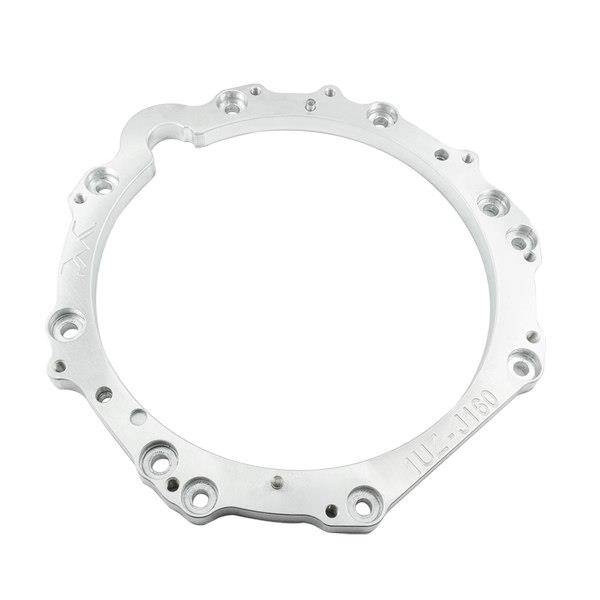

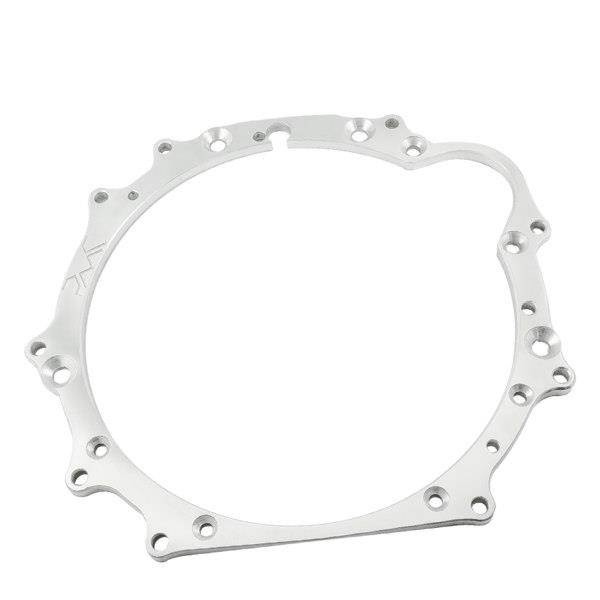

Aluminum adapter enabling the connection (swap / conversion) of the Toyota Lexus V8 UZ 1UZ 3UZ engine with the Aisin AZ6 J160 manual gearbox from the first generation Lexus IS200.

In the design process, we use a measuring arm and a high-quality 3D scanner
Thanks to the use of a measuring arm during the design process and the use of precise CNC machines - the adapter ensures perfect coaxiality of the engine and gearbox

Modern CNC machine park and qualified staff.
Certified materials
In the production process, we use only certified materials from reliable suppliers. The AW-2017A aluminum alloy is characterized by high strength properties - high tensile and fatigue strength. AW-2017A aluminum semi-finished products are used for the production of aircraft structural elements, for machine building parts, for the construction of military equipment, and components for the automotive industry.

Matching engines:
Toyota/Lexus V8 1UZ 1UZ-FE
1989–2000 Lexus LS 400/Toyota Celsior
1989–2002 Toyota Crown/Toyota Crown Majesta
1991–2000 Lexus SC 400/Toyota Soarer
1992–2000 Lexus GS400/Toyota Aristo
1995–1997 SARD MC8/MC8-R
Toyota/Lexus V8 3UZ 3UZ-FE
Lexus LS430 (2000-2006)
Lexus GS430 (2000-2007)
Lexus SC430 / Toyota Soarer (2001-2010)
Toyota Crown Majesty (2004-2010)
Hongqi HQ430
Matching gearboxes:
Lexus IS200 J160 First Gen. Aisin AZ6 (2.0 L 1G-FE AS200)

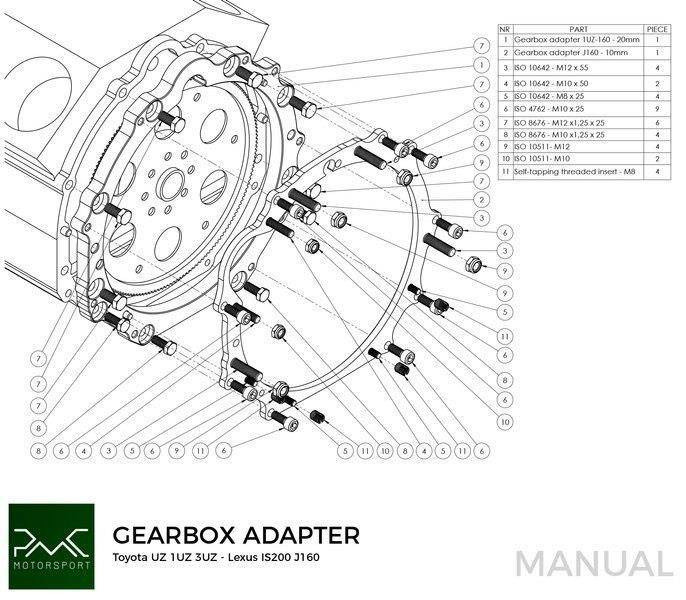

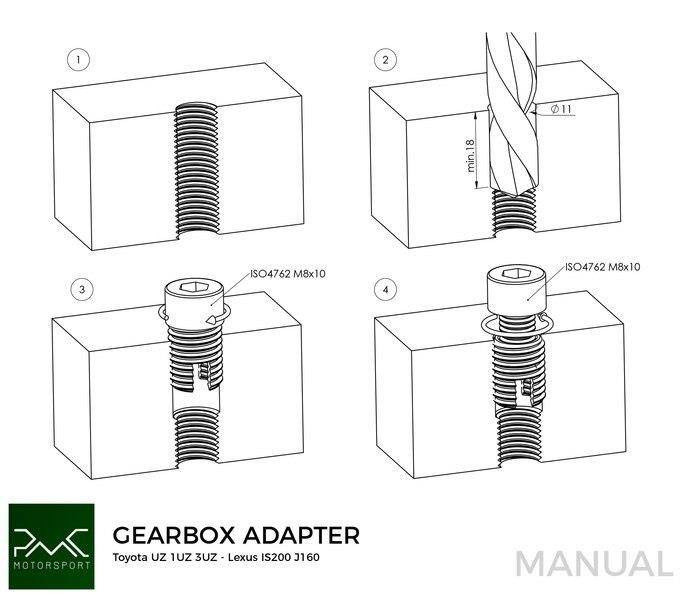

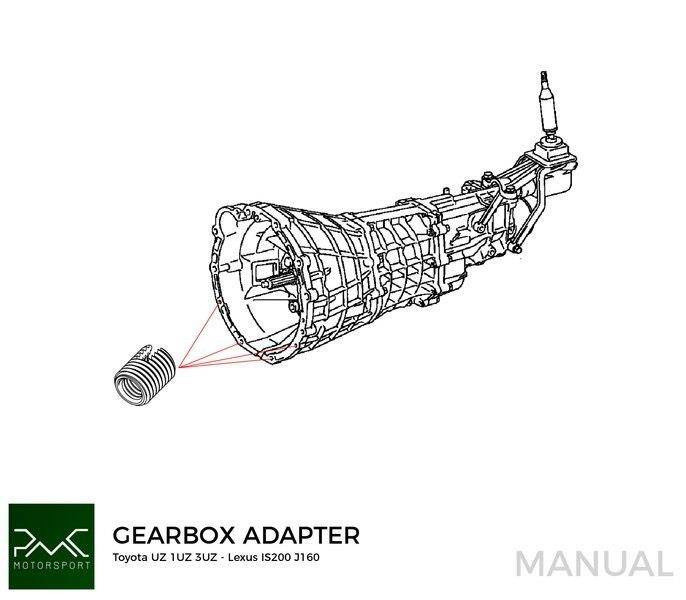

Adapter installation instructions

!!! A custom flywheel is required for connection !!!
