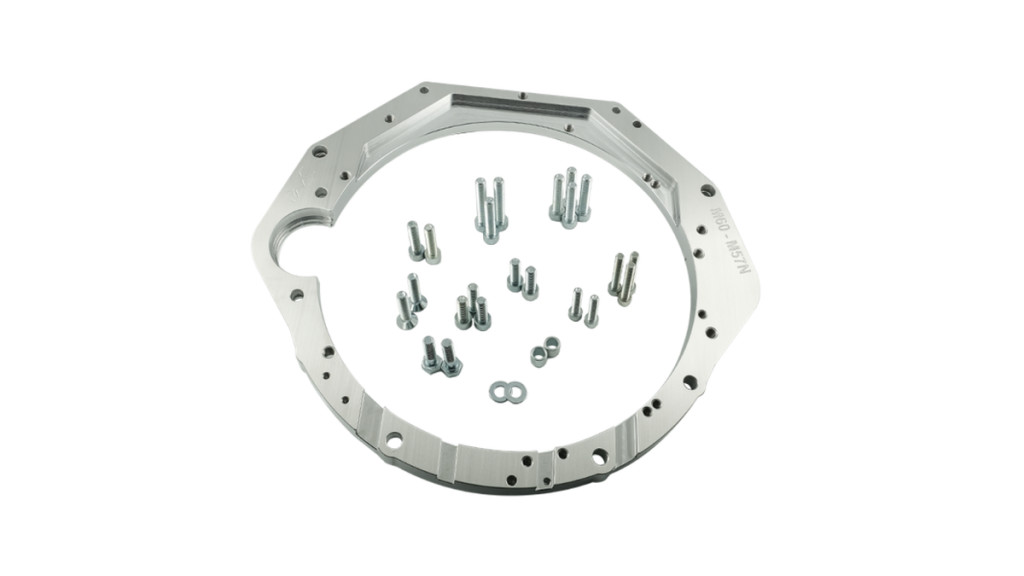

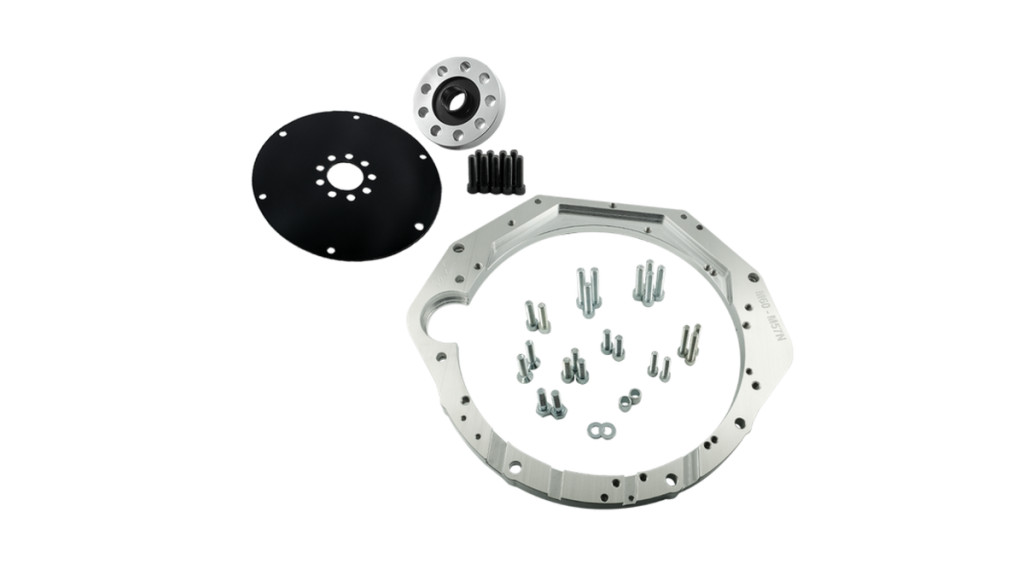

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) BMW E34 V8 M60 530i 540i - BMW ZF 8HP 8HP70 8HP50 (8-speed)
The adapter kit enables users connection of BMW V8 M60 M60B30 M60B40 (BMW E31 / E32 / E34 /E38) engine series with BMW ZF 8HP gearbox. (replace ZF 5HP18 / ZF 5HP30)
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
Engine list: | BMW V8 M60 M60B30 - 1992–1995 BMW E34 530i
- 1992–1994 BMW E32 730i
- 1994–1996 BMW E38 730i
BMW V8 M60 M60B40 - 1993–1995 BMW E34 540i
- 1992–1994 BMW E32 740i
- 1994–1996 BMW E38 740i
- 1992–1996 BMW E31 840i
The adapter fits the European version of the M60 engine. In the case of the M60 RHD engine, cut the adapter or change the starter to the European version and move it to the other side of the engine. |
Gearbox list: | - BMW ZF (ZF Friedrichshafen) 8HP
- BMW ZF 8HP 8HP70 BMW N57 / N57N 8-speed
- BMW ZF 8HP 8HP50 Z / 8HP50Z BMW B58 8-speed
|

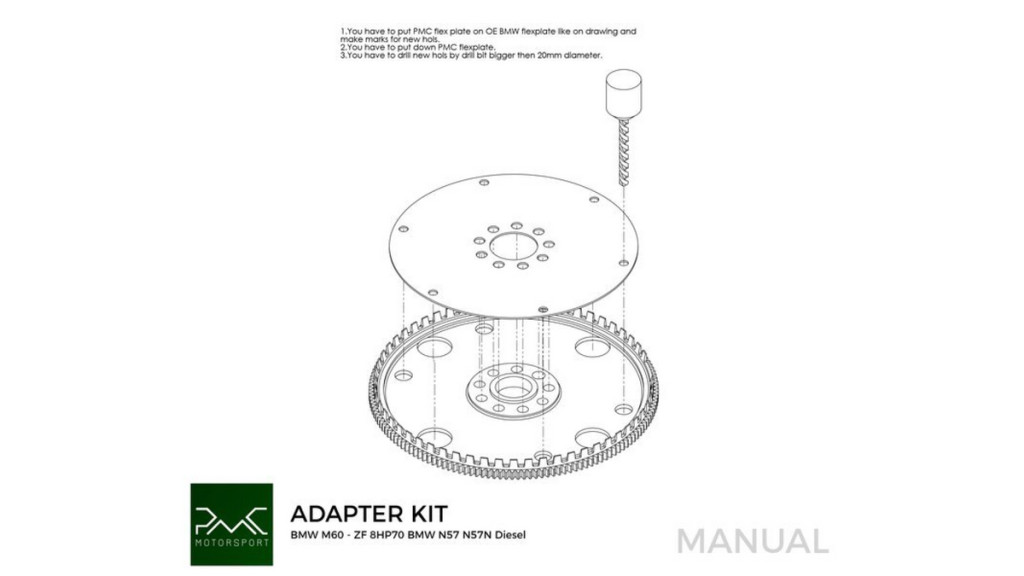

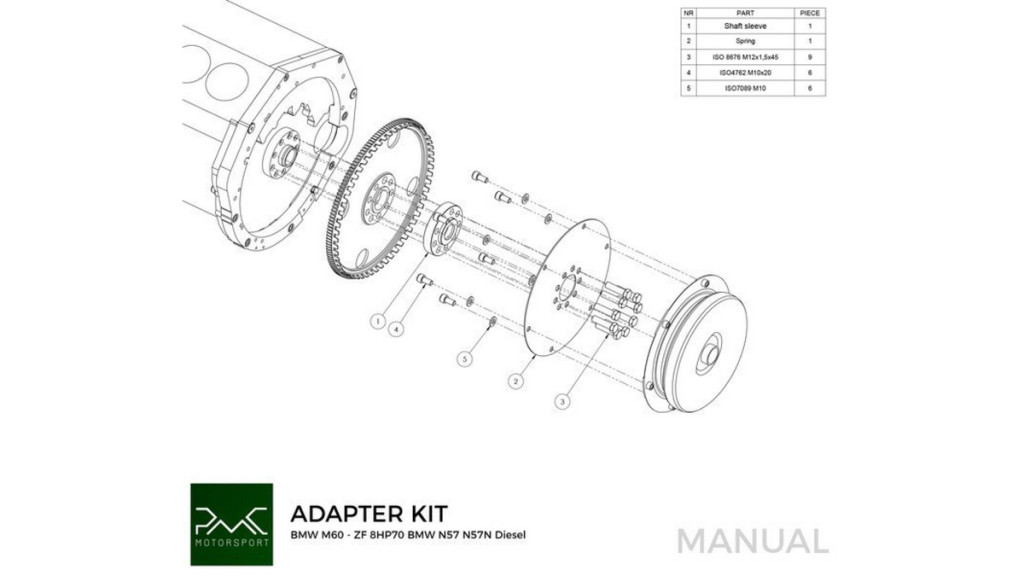

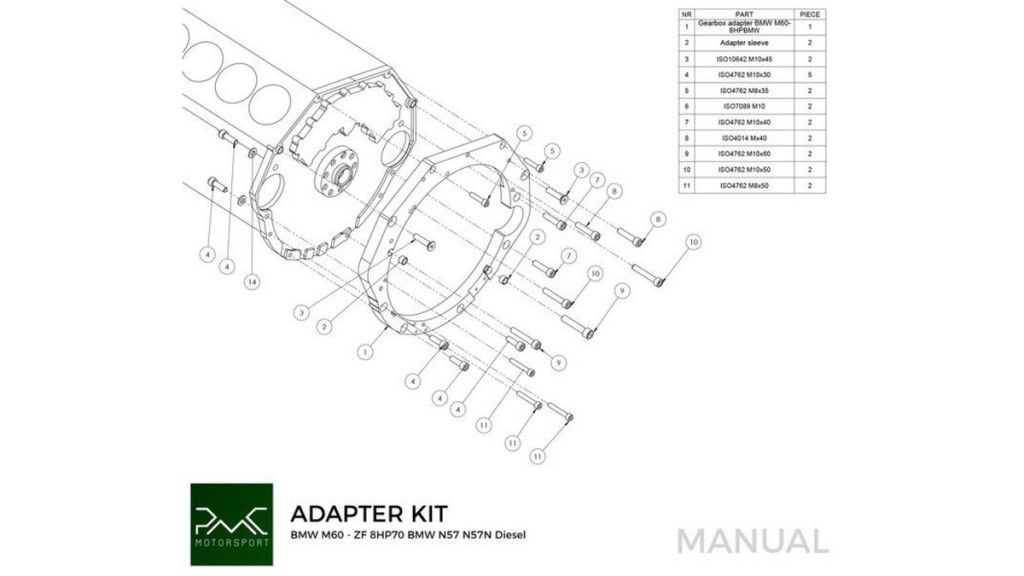

Manual

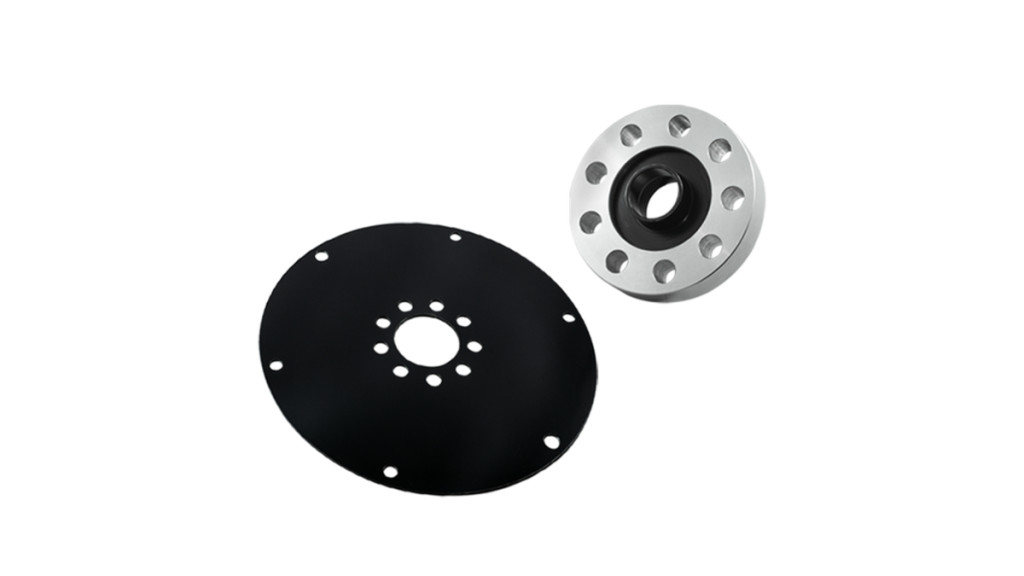

- Use the flywheel / ring gear from the automatic version
- Tighten the flywheel to the same torque as OE.
- Use torque converter from BMW N57 N57N
Grind the gearbox tabs
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
