PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) Supra JZA70 JZA80 MKIII MKIV JZ 1JZ 2JZ - BMW ZF 8HP 8HP70 8HP50

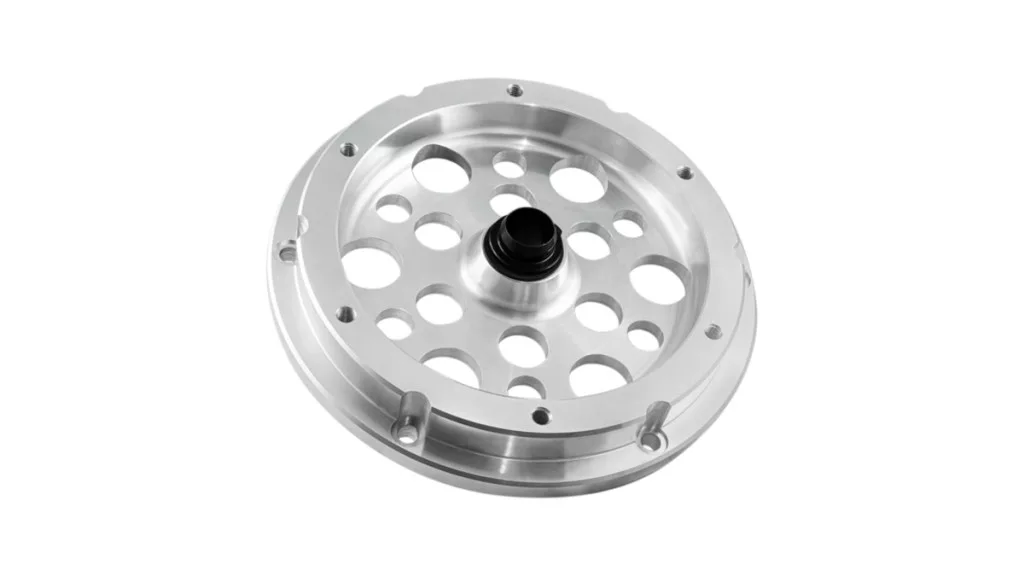

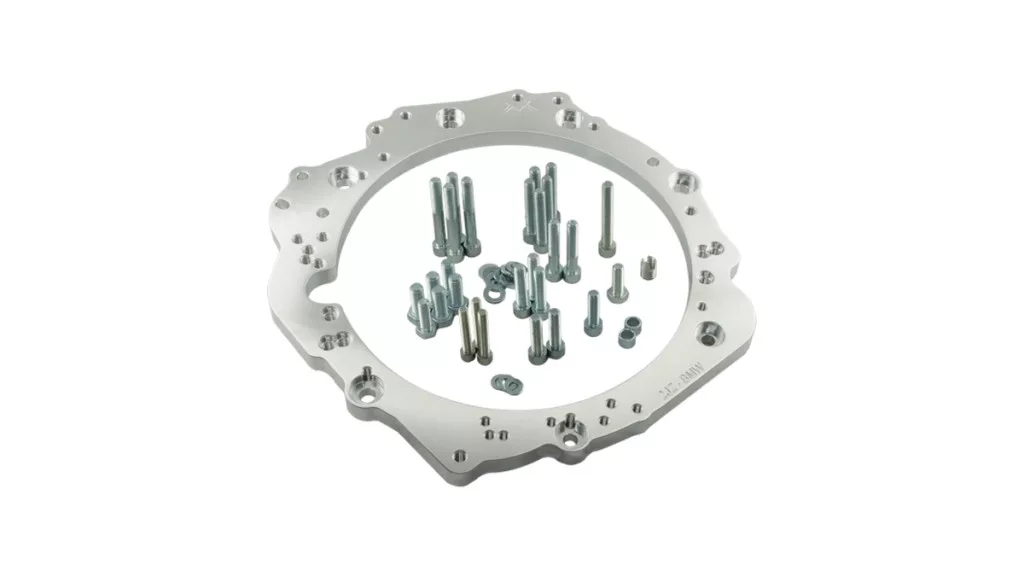

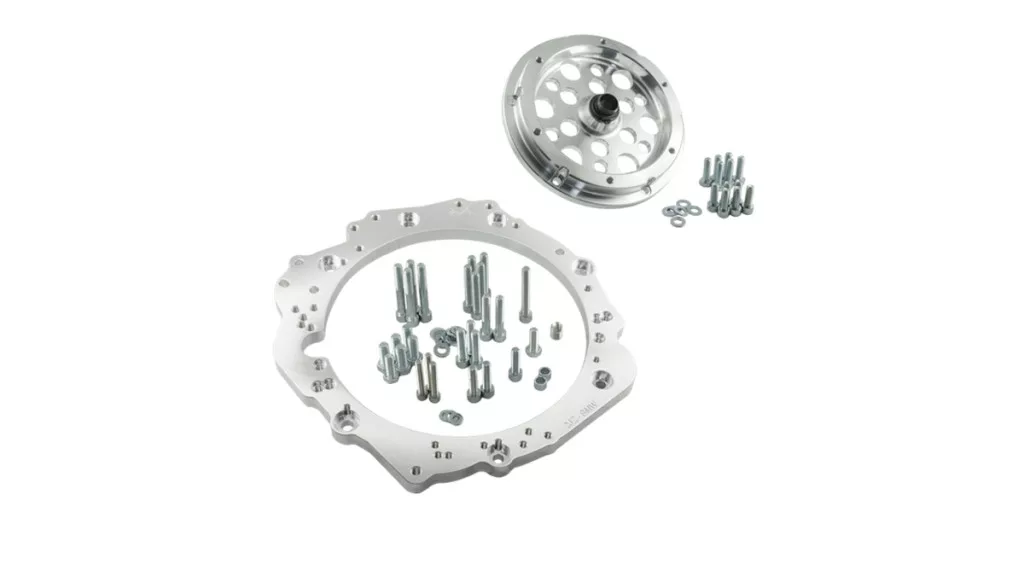

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with BMW ZF 8HP gearbox.

• Designed in a CAD environment
• Only certified materials were used in the production process
• CNC machining

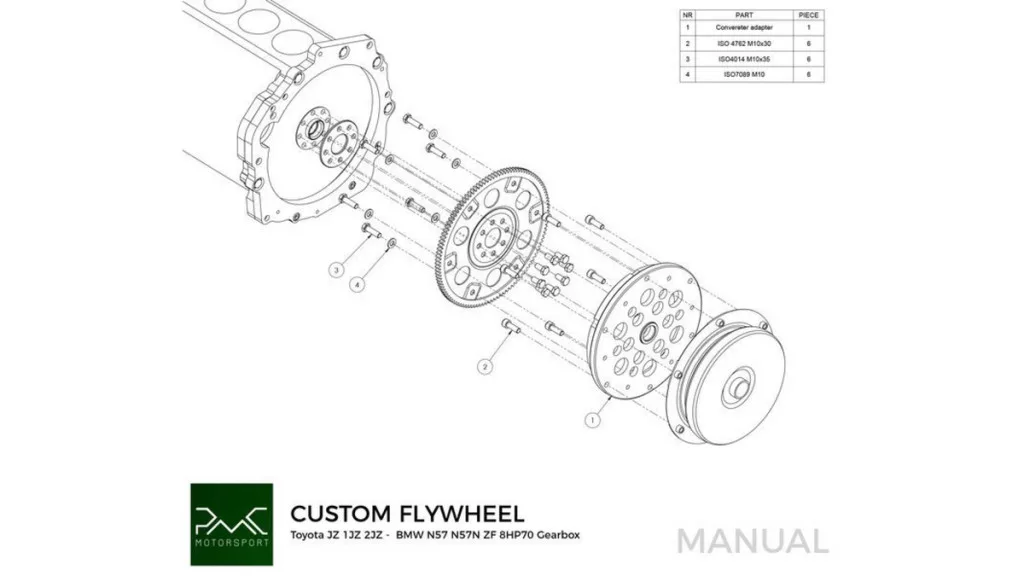

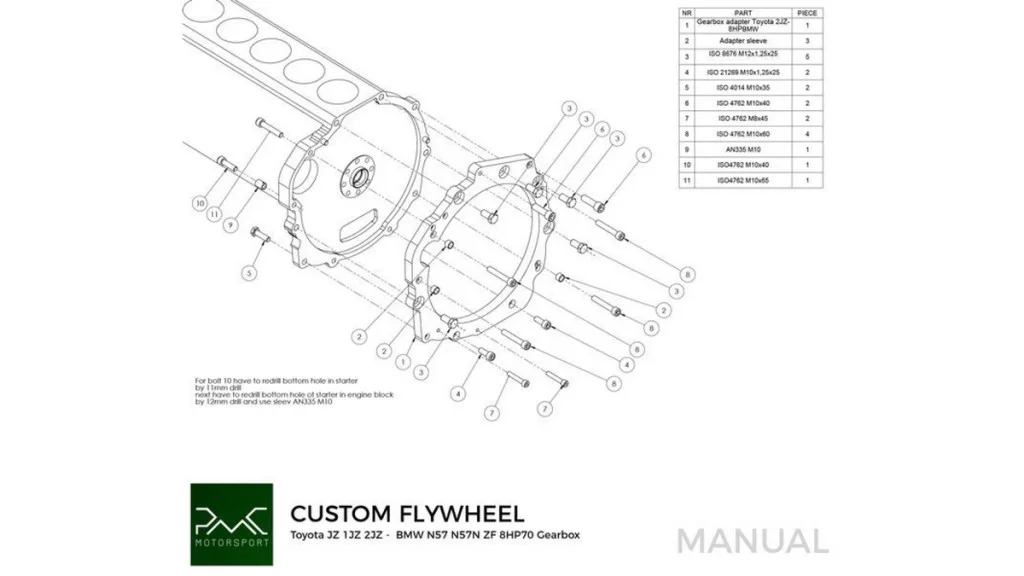

Manual

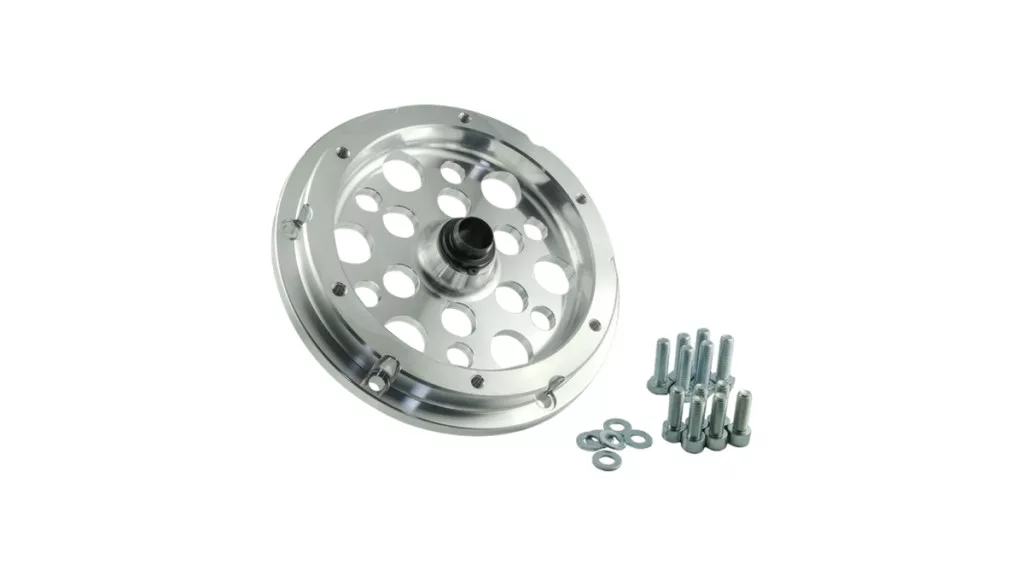

• Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
• Tighten the flywheel to the same torque as OE.
• Use torque converter from BMW N57 N57N

 Made in EU

 ISO certificate
