Multi Function Converter 9-16V

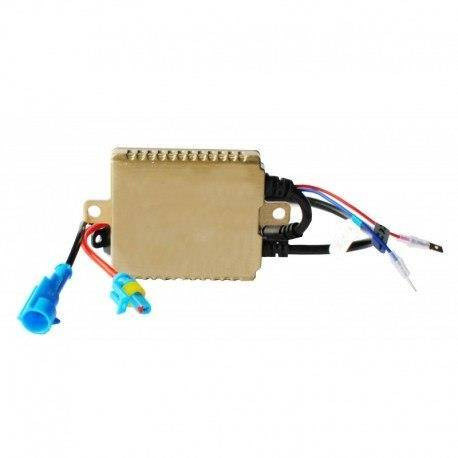

MULTI-FUNCTION INVERTER 35 / 55W

POWER: 35 / 55W

Operating voltage range: 9-16V DC

Power consumption: 3,1A (in the work), max 8A (start-up)

Working temperature range: -40 + 105'C

Watertight housing

Dimensions: 75mm x 67mm x 17mm

Compatibility: all HID filaments and HID bixenon

The Multi - Function inverter is an innovative design with a wide range of applications. The converter operates in a wide range of 9-45V. It has additional wiring (blue cable) that increases power from 35W to 55W.

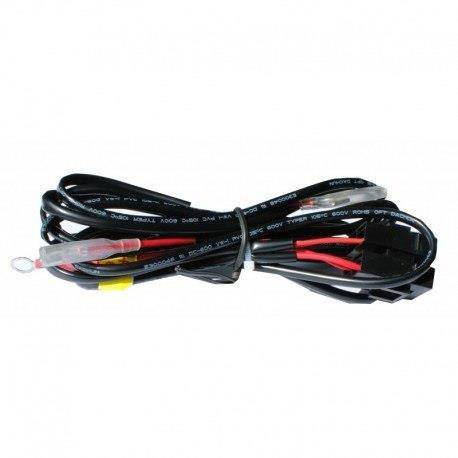

The blue cable should be:

• insulate
• the standard operating mode is 35w, -
• connect under the low beam to set the inverter to a continuous 55w operating mode
• connect to the main beam for higher brightness of the burner when switching to long lights (variable mode of 35w / 55w).
