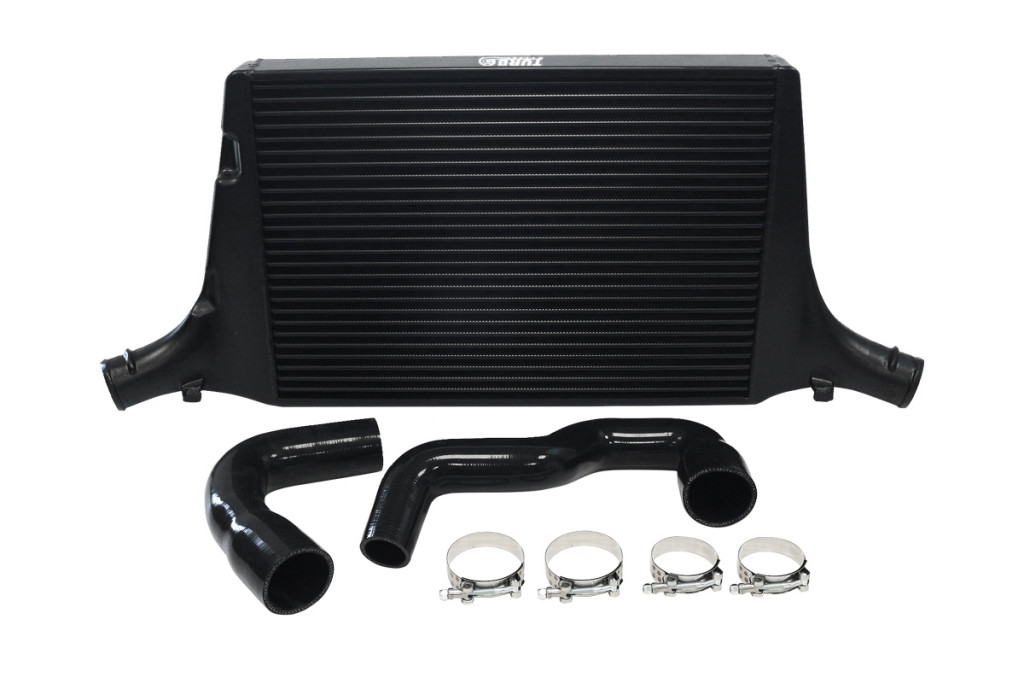

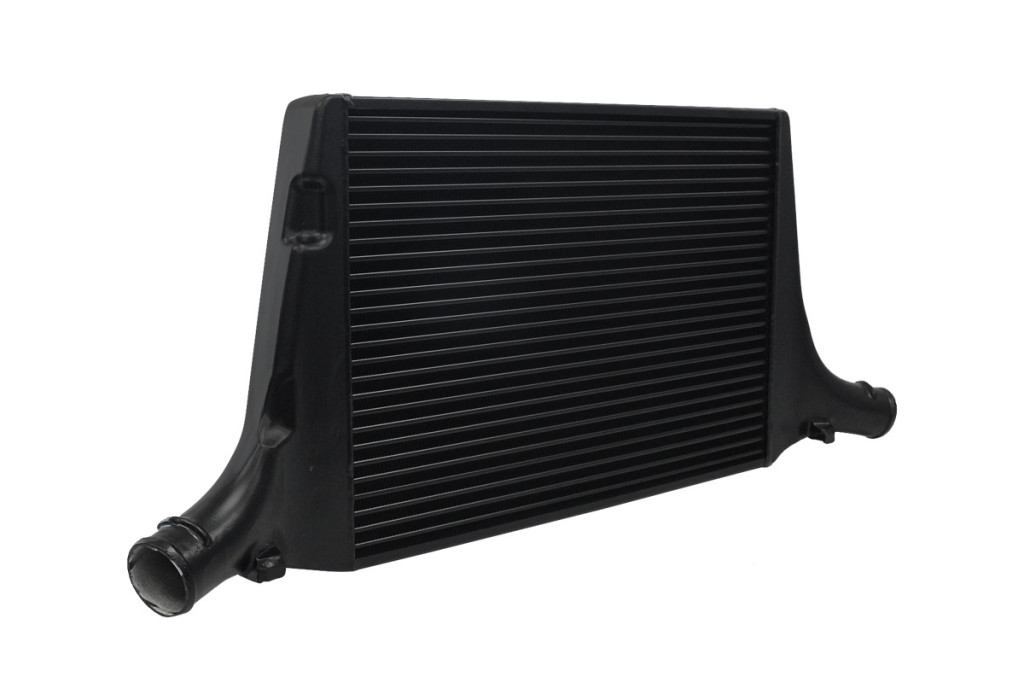

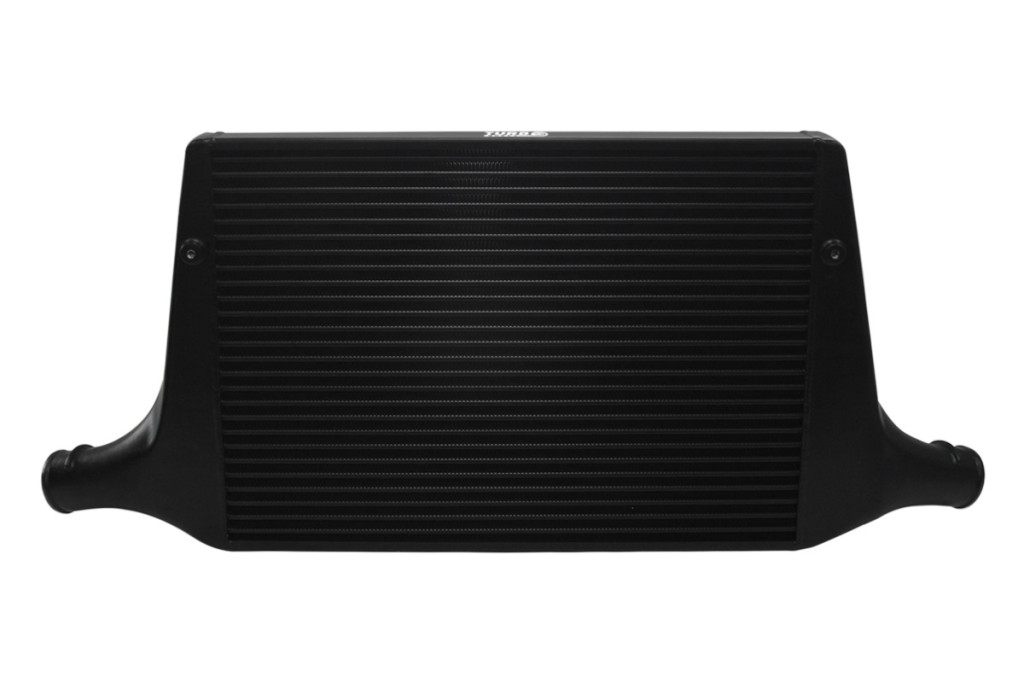

INTERCOOLER for the brand and model given in the subject name. The whole is made very carefully and accurately, the welded elements are so-called TIGIEM, T-6061 Aluminum.
Fits:
Audi A4 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
Audi A4 B8 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A4 B8 Allroad 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A5 B8 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
Audi A5 B8 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Audi A5 B8 Sportback 1,8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CDHB)*
Audi A5 B8 Sportback 2,0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
The dimensions of the core itself:
- Width: 600mm
- Height: 440mm
- Thickness: 60mm
Inlet/Outlet: 70mm
Our intercoolers were one of the few tested over 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC + core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC + cores are made of finer-sized ribs, which guarantees a significant improvement in cooling.
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CDNC, CPMA) | 1984 | 211 (155) | 2009 - 2016 |
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CPMB) | 1984 | 220 (162) | 2013 - 2016 |
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CNCD) | 1984 | 224 (165) | 2013 - 2016 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI quattro (CFKA) | 1984 | 180 (132) | 2009 - 2012 |
