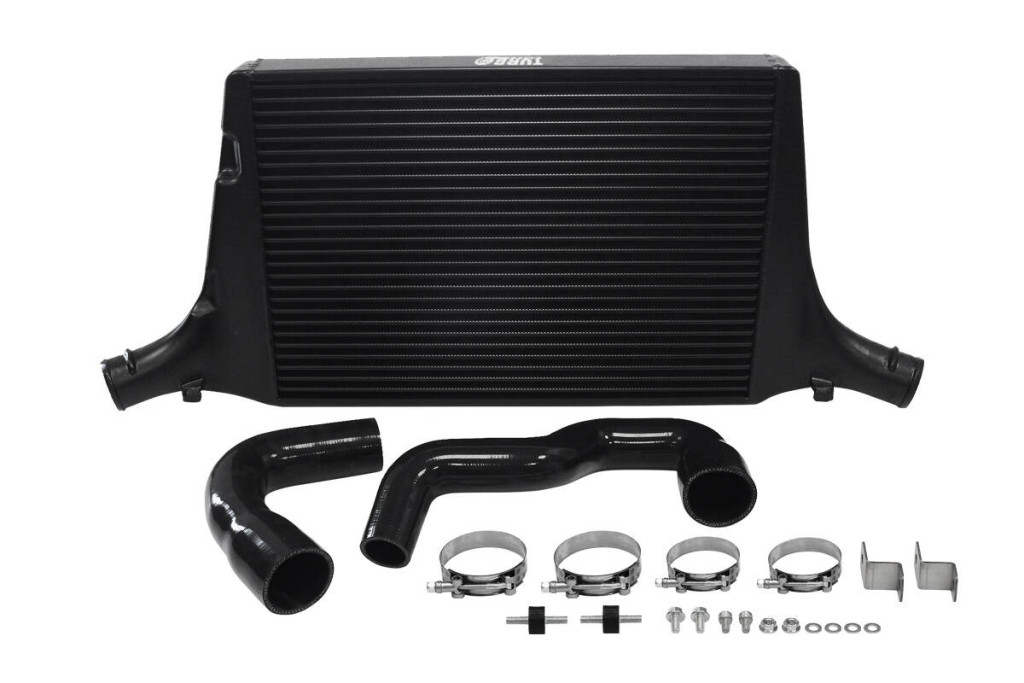

The kit contains all the necessary components needed for installation in the car. The whole is made very carefully and thoroughly, the elements are welded so-called. TIGIEM, T-6061 Aluminium.
Fits:
- Audi A4 B8 1.8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
- Audi A4 B8 2.0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
- Audi A4 B8 Allroad 2.0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
- Audi A5 B8 1.8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CABD, CDHB)*
- Audi A5 B8 2.0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
- Audi A5 B8 Sportback 1.8 TFSI 2008-2013 (MKB:CABA, CDHA, CABB, CDHB)*
- Audi A5 B8 Sportback 2.0 TFSI 2008-2013 (MKB: CDNB; CAEA; CDNC; CAEB; CFKA)*
Dimensions of the core itself:
- Width: 600 mm
- Height: 440 mm
- Thickness: 65 mm
Output:66 mm
Our intercoolers as some of the few have been tested above 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC+ core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC+ cores are made of thicker-stacked ribs for a significant improvement in cooling.
In the photo below you can see how the new COOL-TEC+ core is built
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CDNC, CPMA) | 1984 | 211 (155) | 2009 - 2016 |
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CPMB) | 1984 | 220 (162) | 2013 - 2016 |
| AUDI A4 Allroad B8 (8KH) (2009-2016) | 2.0 TFSI quattro (CNCD) | 1984 | 224 (165) | 2013 - 2016 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI (CDNB, CAEA, CFKA) | 1984 | 180 (132) | 2008 - 2015 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI quattro (CFKA) | 1984 | 180 (132) | 2009 - 2012 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI flexible fuel (CFKA) | 1984 | 180 (132) | 2009 - 2015 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI flexible fuel quattro (CFKA) | 1984 | 180 (132) | 2009 - 2015 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI (CDNC, CAEB) | 1984 | 211 (155) | 2008 - 2013 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI quattro (CDNC, CAEB, CPMA) | 1984 | 211 (155) | 2008 - 2015 |
| AUDI A4 B8 (8K2) (2007-2016) | 2.0 TFSI (CNCD) | 1984 | 224 (165) | 2013 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI (CDNB, CFKA) | 1984 | 180 (132) | 2008 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI flexible fuel (CFKA) | 1984 | 180 (132) | 2009 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI flexible fuel quattro (CFKA) | 1984 | 180 (132) | 2009 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI (CDNC, CAEB) | 1984 | 211 (155) | 2008 - 2013 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI quattro (CDNC, CAEB) | 1984 | 211 (155) | 2008 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI (CNCD) | 1984 | 224 (165) | 2013 - 2015 |
| AUDI A4 B8 Avant (8K5) (2007-2015) | 2.0 TFSI quattro (CNCD) | 1984 | 224 (165) | 2013 - 2015 |
| AUDI A5 (8T3) (2007-2017) | 2.0 TFSI (CNCE) | 1984 | 230 (169) | 2015 - 2017 |
| AUDI A5 (8T3) (2007-2017) | 2.0 TFSI quattro (CNCE) | 1984 | 230 (169) | 2015 - 2017 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI (CDNB) | 1984 | 180 (132) | 2009 - 2014 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI (CDNC) | 1984 | 211 (155) | 2009 - 2013 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI quattro (CDNC) | 1984 | 211 (155) | 2009 - 2017 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI (CNCD) | 1984 | 224 (165) | 2013 - 2016 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI quattro (CNCD) | 1984 | 224 (165) | 2013 - 2016 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI (CNCE) | 1984 | 230 (169) | 2015 - 2017 |
| AUDI A5 Sportback (8TA) (2007-2017) | 2.0 TFSI quattro (CNCE) | 1984 | 230 (169) | 2015 - 2017 |
| AUDI A5 Kabriolet (8F7) (2009-2017) | 2.0 TFSI quattro (CDNC, CAEB, CPMA) | 1984 | 211 (155) | 2009 - 2017 |
