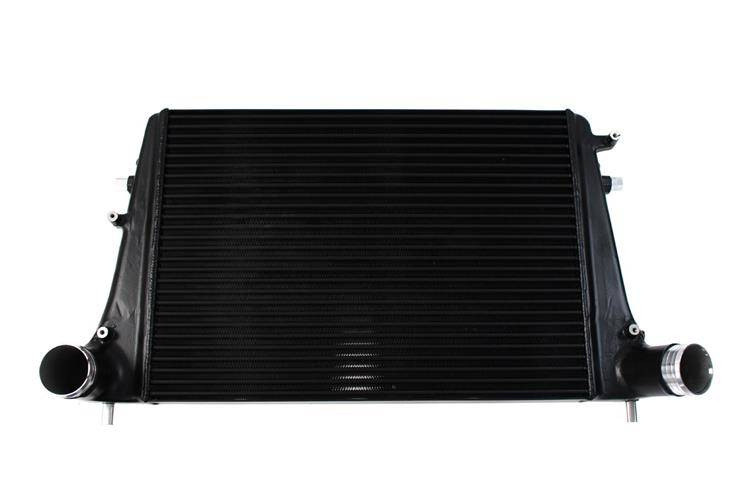

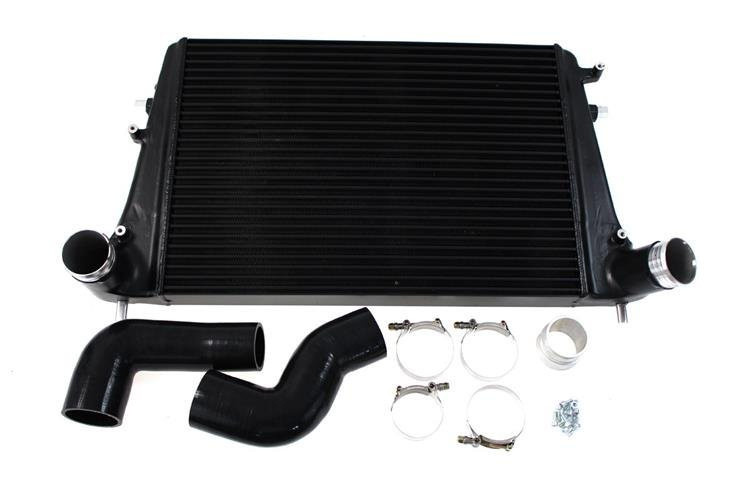

INTERCOOLER for the brand and model given in the subject name. The whole is made very carefully and accurately, the welded elements are so-called TIGIEM, T-6061 Aluminum.
The dimensions of the core itself:
- Width: 600mm,
- Height: 430mm,
- Thickness: 60mm.
Inlet/Outlet: 67mm
Our intercoolers were one of the few tested over 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC + core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC + cores are made of finer-sized ribs, which guarantees a significant improvement in cooling.
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| AUDI A3 (8P1) (2003-2013) | S3 quattro (BZC, CDLC) | 1984 | 256 (188) | 2007 - 2012 |
| AUDI A3 Sportback (8PA) (2004-2015) | S3 quattro (CDLC) | 1984 | 256 (188) | 2008 - 2013 |
| AUDI A3 (8P1) (2003-2013) | 2.0 TFSI quattro (AXX, BWA, CCZA, CBFA, CCTA) | 1984 | 200 (147) | 2004 - 2012 |
| AUDI A3 Kabriolet (8P7) (2008-2013) | 2.0 TFSI (CAWB, CCZA) | 1984 | 200 (147) | 2008 - 2013 |
| SEAT ALHAMBRA (710, 711) (2010-2022) | 2.0 TSI (CCZA) | 1984 | 200 (147) | 2010 - 2012 |
| VW GOLF VI (5K1) (2008-2014) | 2.0 R 4motion (CDLC, CRZA) | 1984 | 256 (188) | 2009 - 2013 |
| VW SCIROCCO III (137, 138) (2008-2017) | 2.0 R (CDLC) | 1984 | 256 (188) | 2009 - 2017 |
| VW GOLF VI (5K1) (2008-2014) | 2.0 GTi (CCTA, CBFA, CCZA) | 1984 | 200 (147) | 2009 - 2013 |
