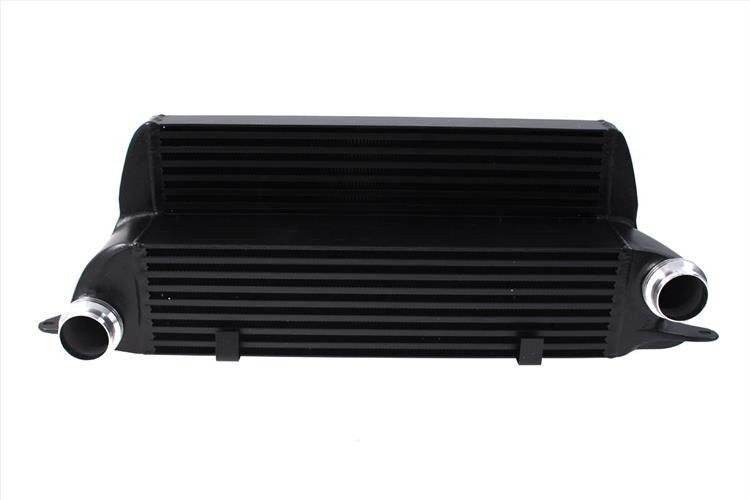

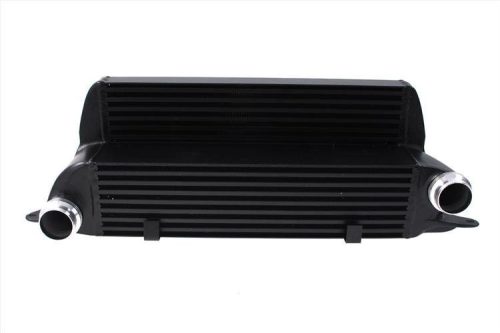

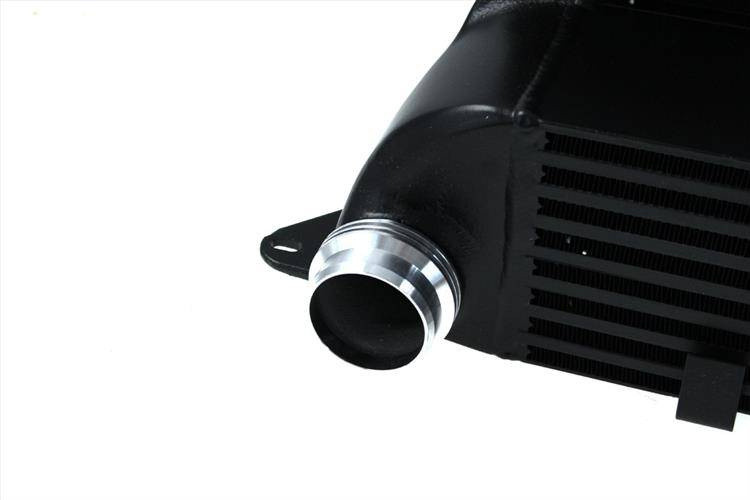

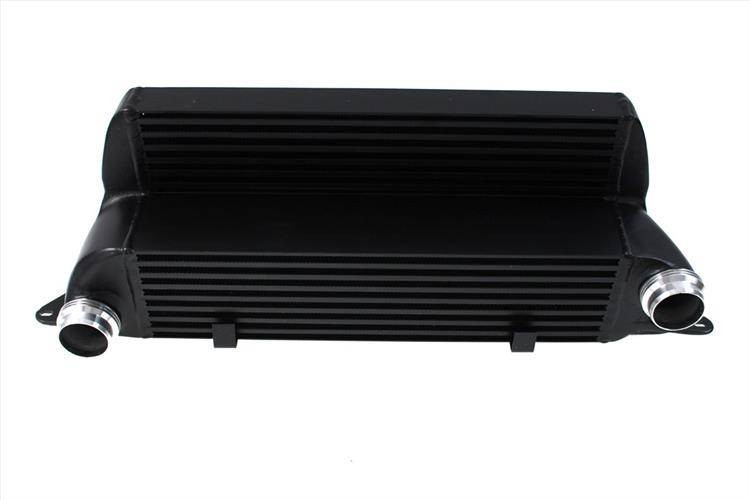

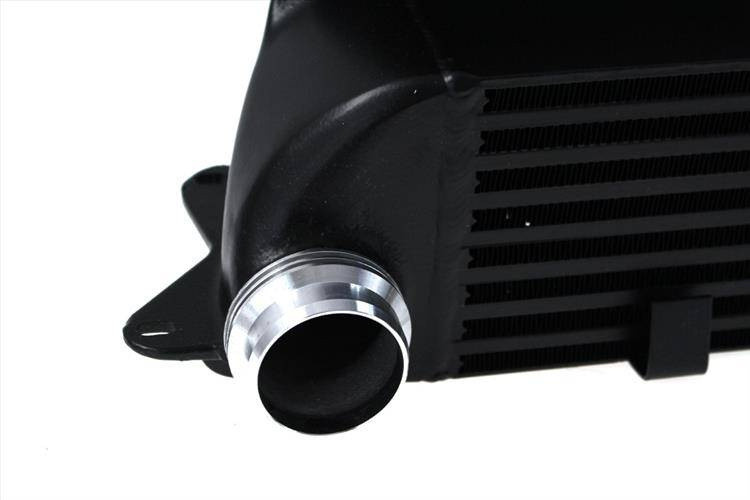

INTERCOOLER for the brand and model given in the subject name. The whole is made very carefully and accurately, the welded elements are so-called TIGIEM, T-6061 Aluminum.
Fits:
- BMW 535i 2006-2009 E60/E61 225KW/306PS*
- BMW 525d 2004-2010 E60/61 130-145KW/177-197PS**
- BMW 530d 2003-2010 E60/61 160-173KW/218-235PS**
- BMW 535d 2004-2010 E60/E61 200-210KW/272-286PS
- BMW 635d 2006-2010 E63/E64 200-210KW/272-286PS
The dimensions of the core itself:
- Width: 520mm,
- Height: 135/240mm,
- Thickness: 100/150mm.
Inlet/Outlet: Dedicated (59-68mm)
Our intercoolers were one of the few tested over 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC + core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC + cores are made of finer-sized ribs, which guarantees a significant improvement in cooling.
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| BMW 5 (E60) (2001-2010) | 520 d (M47 D20 (204D4)) | 1995 | 150 (110) | 2005 - 2007 |
| BMW 5 (E60) (2001-2010) | 525 d (M57 D25 (256D2)) | 2497 | 163 (120) | 2004 - 2010 |
| BMW 5 (E60) (2001-2010) | 530 d (M57 D30 (306D3)) | 2993 | 231 (170) | 2005 - 2007 |
| BMW 5 (E60) (2001-2010) | 530 d xDrive (M57 D30 (306D3)) | 2993 | 235 (173) | 2007 - 2009 |
| BMW 5 (E60) (2001-2010) | 535 d (M57 D30 (306D4)) | 2993 | 272 (200) | 2004 - 2010 |
| BMW 5 (E60) (2001-2010) | 535 d (M57 D30 (306D5)) | 2993 | 286 (210) | 2007 - 2010 |
| BMW 5 Touring (E61) (2004-2010) | 520 d (M47 D20 (204D4)) | 1995 | 150 (110) | 2005 - 2007 |
| BMW 5 Touring (E61) (2004-2010) | 530 d (M57 D30 (306D2), M57 D30 (306D3)) | 2993 | 211 (155) | 2004 - 2010 |
| BMW 5 Touring (E61) (2004-2010) | 530 d xDrive (M57 D30 (306D3)) | 2993 | 235 (173) | 2007 - 2010 |
| BMW 5 Touring (E61) (2004-2010) | 535 d (M57 D30 (306D5)) | 2993 | 286 (210) | 2007 - 2010 |
| BMW 6 (E63) (2003-2010) | 635 d (M57 D30 (306D5)) | 2993 | 286 (210) | 2007 - 2010 |
| BMW 6 Kabriolet (E64) (2004-2010) | 635 d (M57 D30 (306D5)) | 2993 | 286 (210) | 2007 - 2010 |
