BMW GS6-53DZ GEARBOX ADAPTER FOR NISSAN PATROL TRANSFER CASE

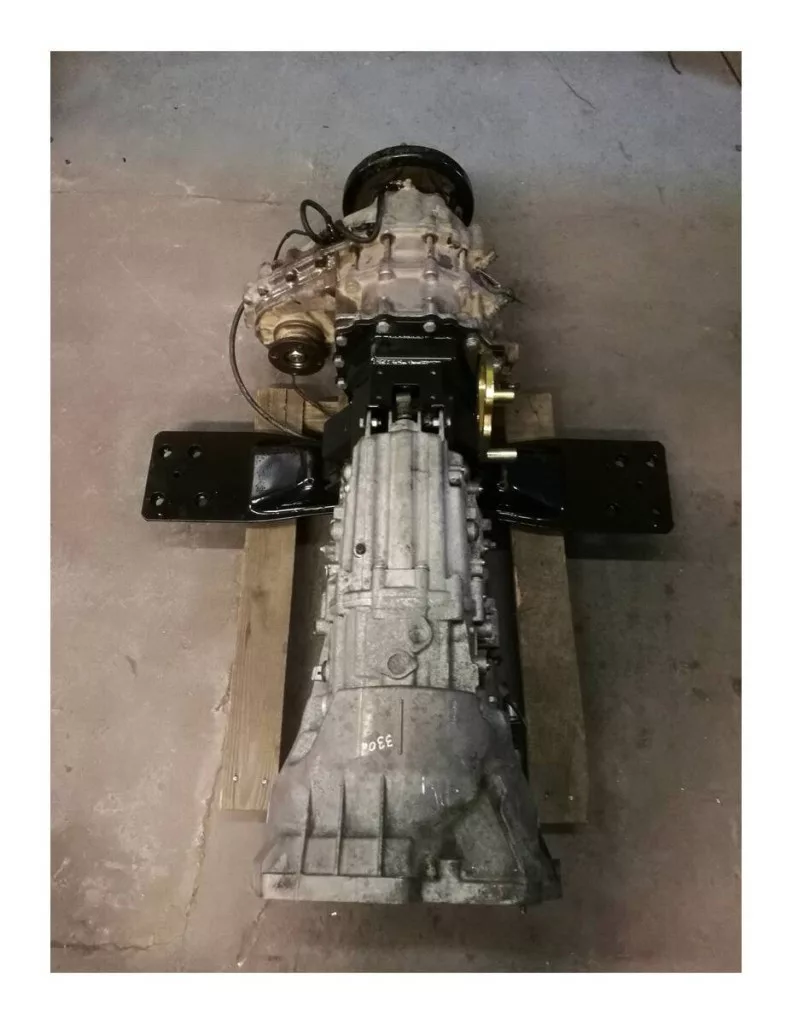

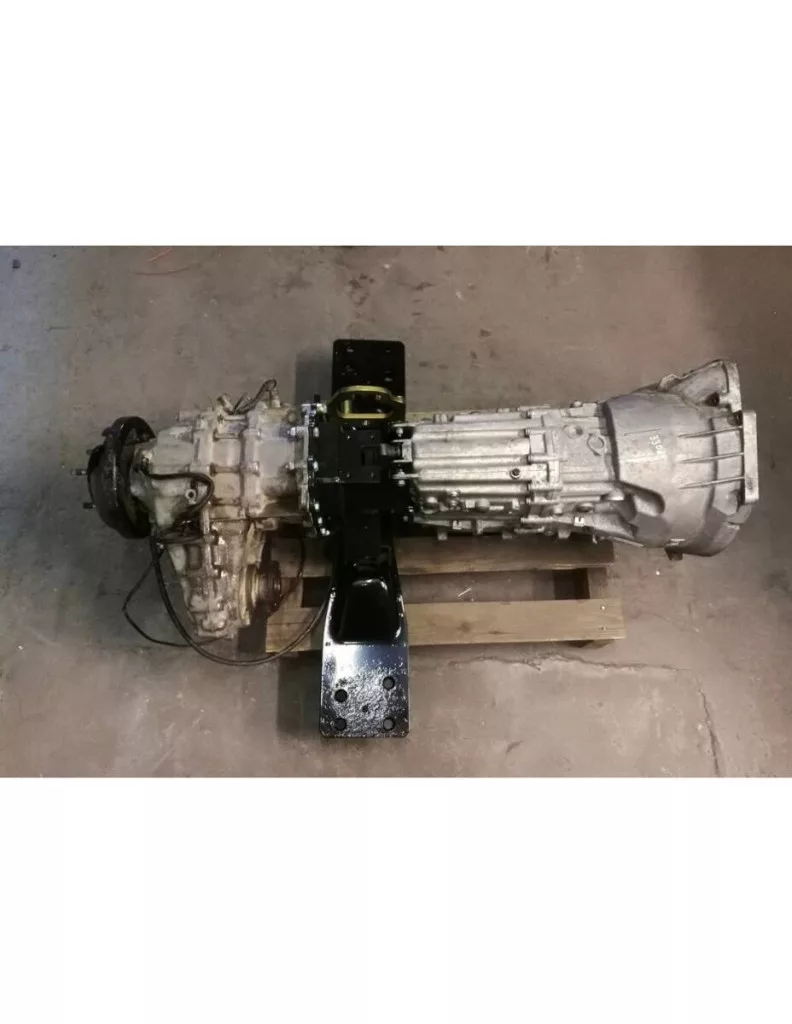

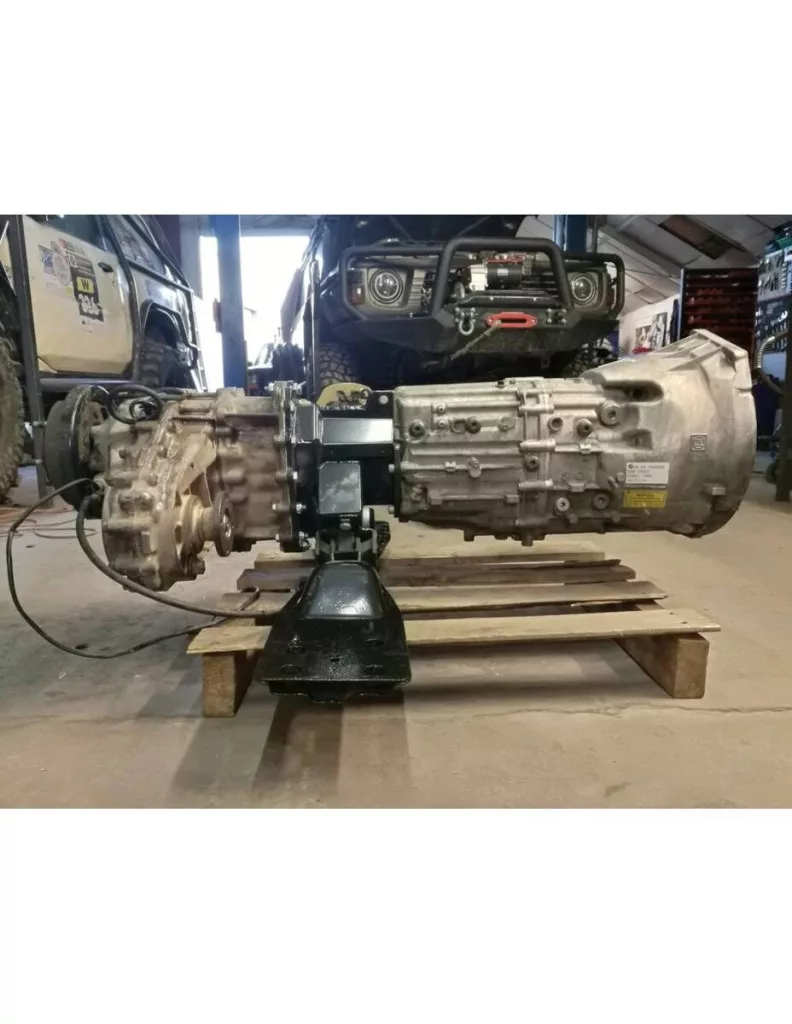

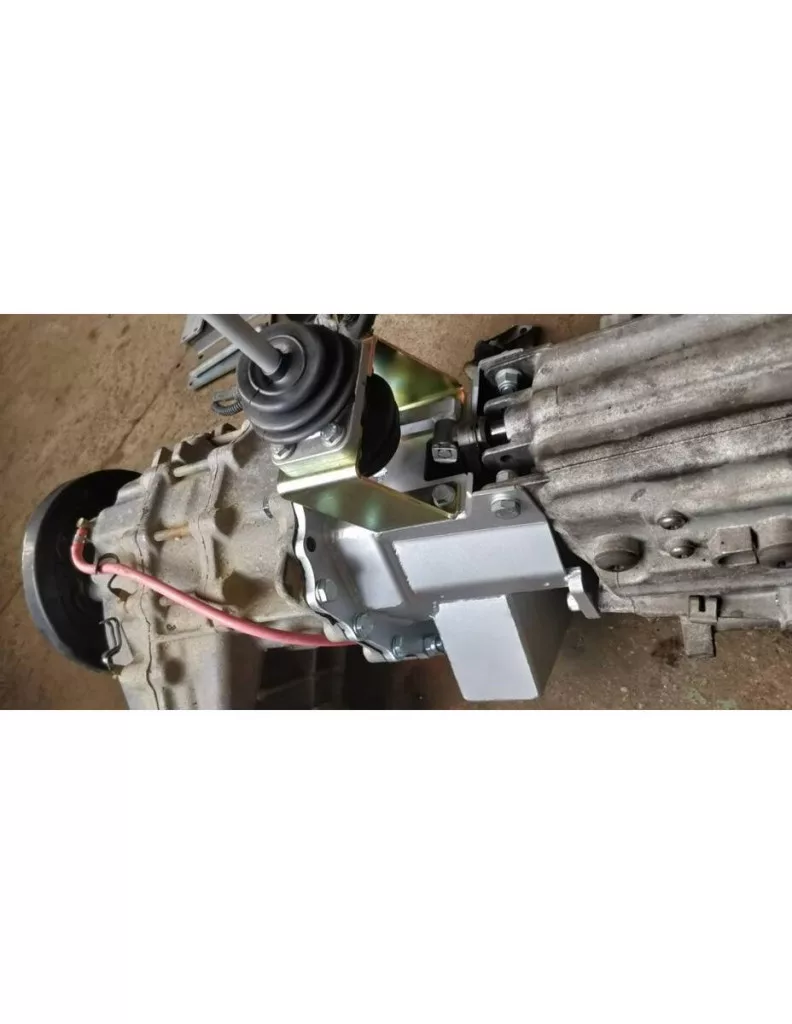

A complete assembly kit that allows for easy and quick connection of the BMW gearbox and the Nissan Patrol transfer case during conversion of the engine to BMW M57 3.0D.

• Fixed position of the transfer case, no need to modify the drive shafts.


• Installation using the original nissan patrol gearbox bar and mounts.


• Connecting shaft made of high-quality heat-treated chrome-molybdenum steel.


• Wide range of easily available clutch kits:



  • Single-disc.


  • Double-disc.


  • 1300Nm+ high-performance kits.






• Low weight of the complete set of BMW gearbox + adapter + Nissan transfer case.


• Possibility to install the engine in a higher position, without interfering with the partition wall of the vehicle - smaller diameter of the gearbox bell housing, compared to the zd30 gearbox.


• Precise gear selector


• Possibility to design the exhaust system within the frame.


• Easy assembly and disassembly due to the size and low weight of the gearbox.


• Sets available in sports version (with rigid connector) and comfort version (with flexible connector).

Adapter thickness 181mm

It is possible to install the adapter and motor in our service.

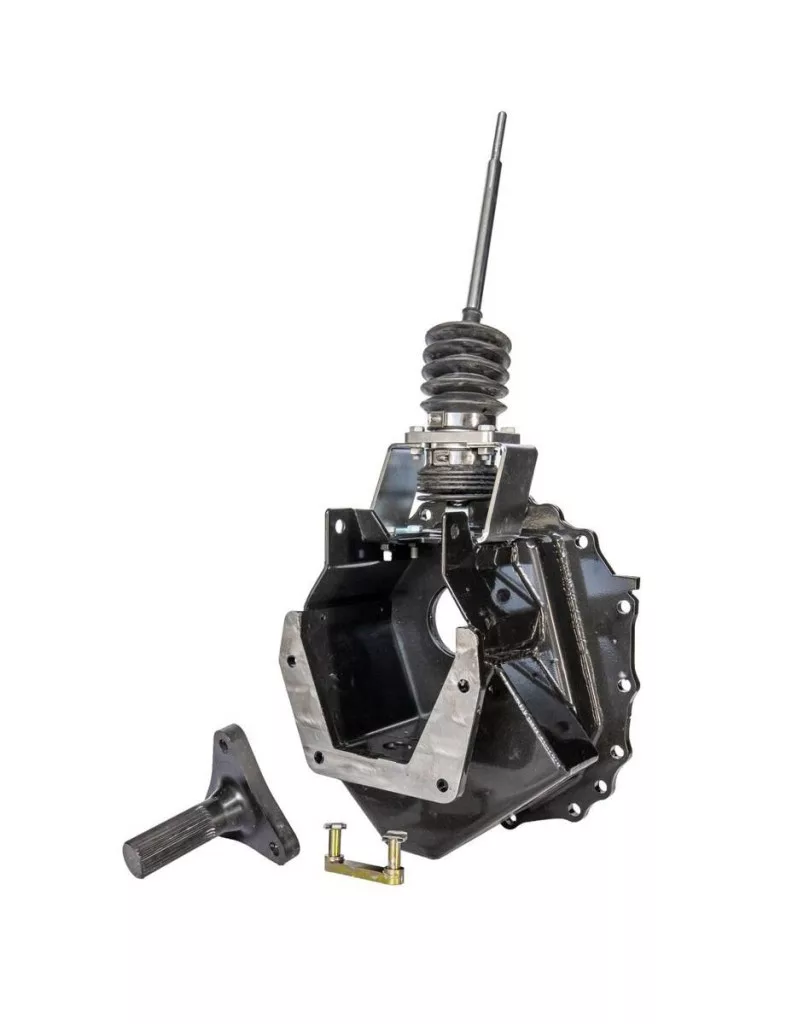

The set contains the following elements:

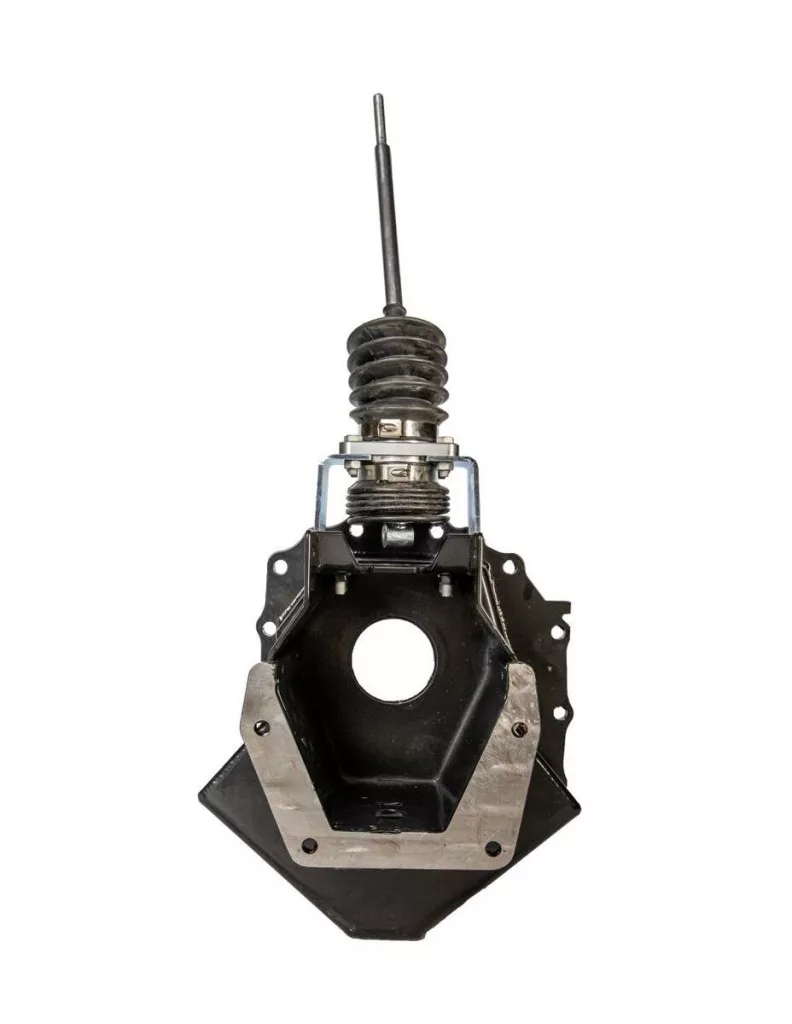

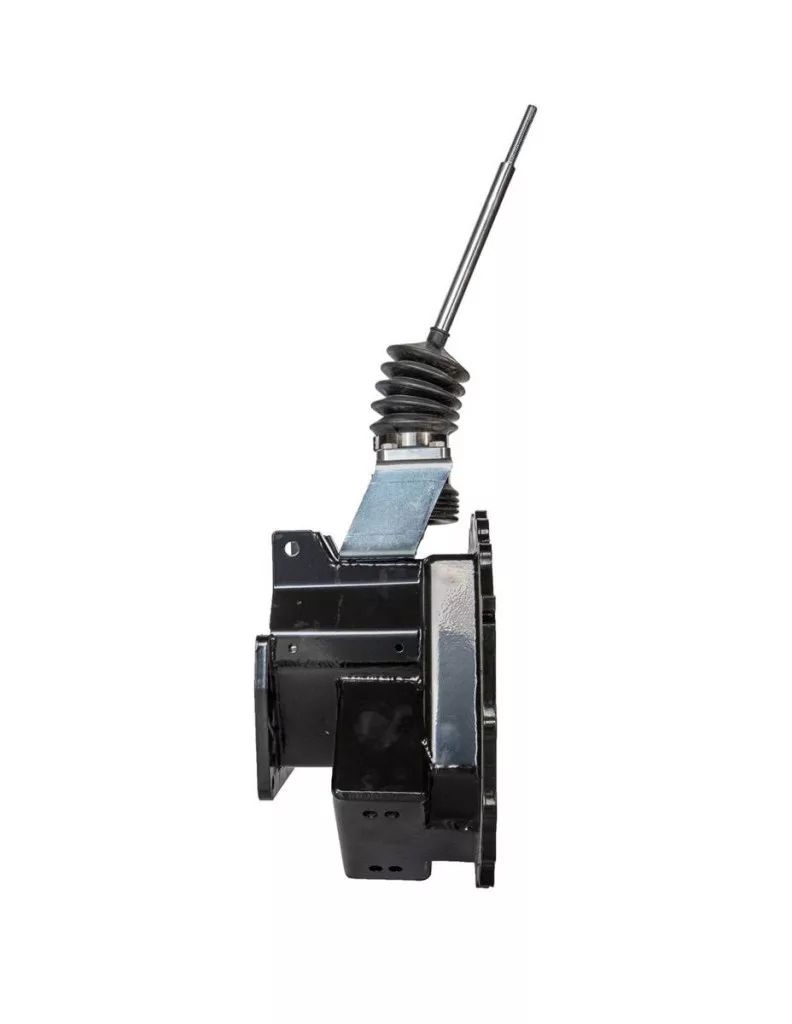

• Adapter.


• Connecting shaft (rigid or flexible).


• Gear lever with rubber covers.


• Cable with safeguards.


• Connecting shaft seal.


• Set of mounting screws.
