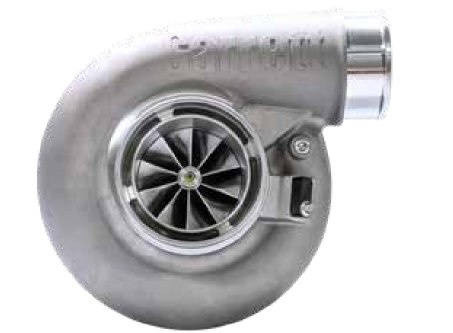

Garrett G35 1050 A/R 1.23 V band

The Garrett G-Series G35-1050 turbochargers are compatible with engines with a capacity of 2.0 L – 5.5 L and can generate up to 1050 horsepower.

The G35-1050 series turbochargers are smaller and outperform all comparable products on the market. They offer higher durability due to better materials, can withstand higher temperatures, and have higher safety margins.

The Garrett G-Series G35-1050 turbochargers provide more power and durability in a smaller housing than ever before.

Power: 700 - 1050 HP
Capacity: 2.0 - 5.5 L

Compressor

Exducer: 84mm
Inducer: 68mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.75
Maximum Flow: 101 lbs/min
Maximum Recommended Speed: 130000 RPM

Compressor Housing Connections

Inlet: 4.0″ Hose Connection
Outlet: 2.5″ Hose Connection

Turbine

Inducer: 62mm
Inducer: 68mm
Trim: 84
Material: Mar-M
A/R: 0.83
Maximum Temperature: 1050C / 1922F
Wastegate: No
Twin scroll: No
