Before fitment, please ensure the spacer fits flat to the back of the wheel. Please also test for clearance after fitment at the wheel arch under full right and left wheel lock.
Extended wheel bolts are not supplied.
These wheel spacers are hubcentric

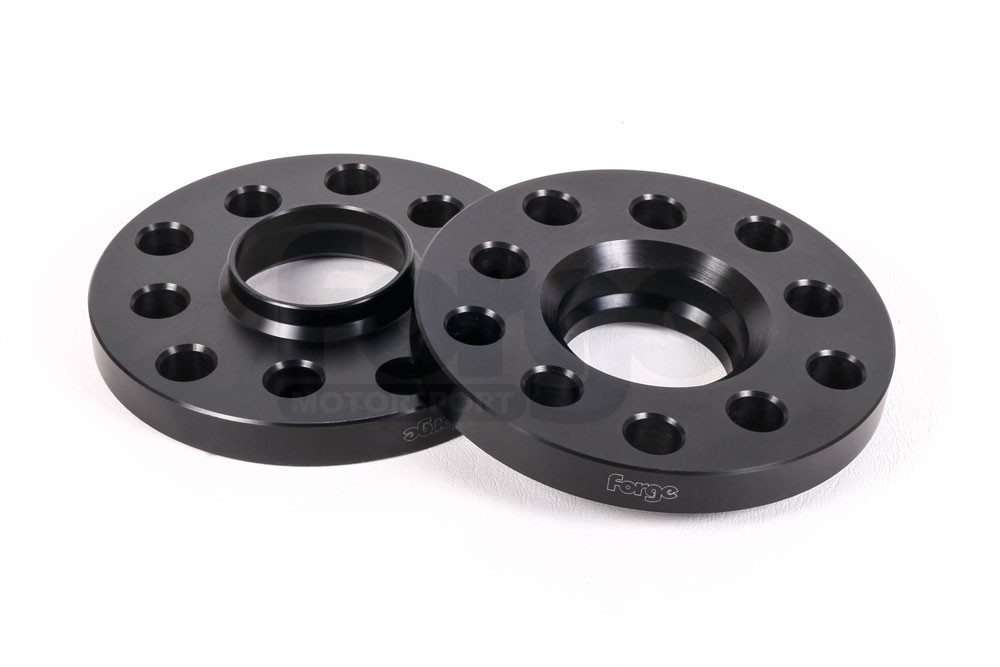

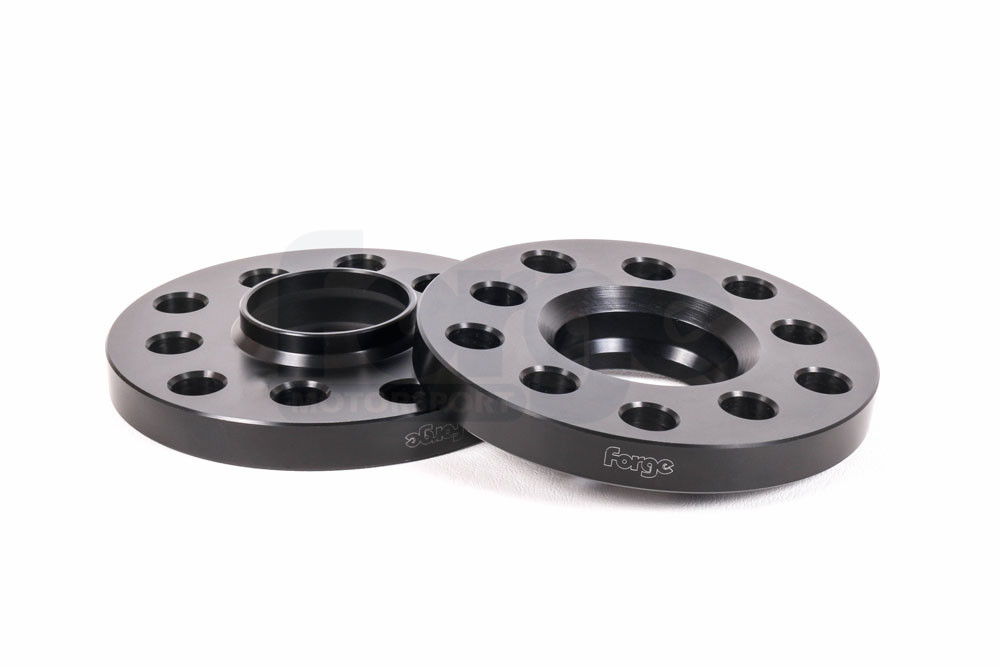

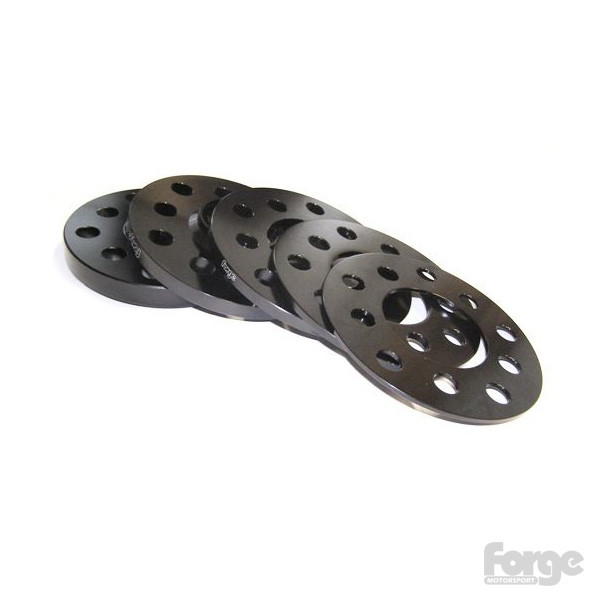

These CNC machined precision alloy wheel spacers are 16mm thick with a 57.1mm bore and dual 5 stud bolt pattern for both 100 and 112mm PCD fitments. The spacers are anodised black to inhibit corrosion and "bonding" to the wheel or hub and are machined with an alloy spigot to allow centering on the hub. (often called "hubcentric" spacers) The spacers are suitable for most vehicles produced by Volkswagen Group. A 16mm spacer will give an overall track increase of 32mm when fitted to both sides of an axle.
These spacers are priced and sold per pair.
Please note: Our 11mm, 16mm, and 20mm hubcentric wheel spacers will NOT work on the rear wheels of the MK3 VW 5x100 applications due to the longer length of the center spigot. There is no problem with the smaller 3mm, 5mm, and 8mm NON-hubcentric spacers.
In The Box:
2 x FMWS16 16mm Wheel Spacer
1 x Forge Sticker
All Forge wheel spacers are manufactured from 6082 alloy
Cupra:
Leon > 2.0 TSI (300 BHP)
Formentor > 1.5 TSI
Formentor > 2.0 TSI (245 BHP)
Formentor > 2.0 TSI (310 BHP)
Formentor > VZ5 (385 BHP)
Leon > 1.5 eTSI
Leon > 2.0 TSI (245 BHP)
Leon > 1.4 E-Hybrid
Ateca > 2.0 TSI > 2018-2023
Ateca > 2.0 TSI > 2023-
