T2 Actuator Single Spring - FMAS049-Colour Blue 18psi

Article No.:
FMAS049-BLU
Brand:
Forge Motorsport
Available for order
22
Net price: 17
Looking for discounts?
Details

A single replacement spring for your Forge Motorsport Actuator. This is the T2, small body type spring (049).

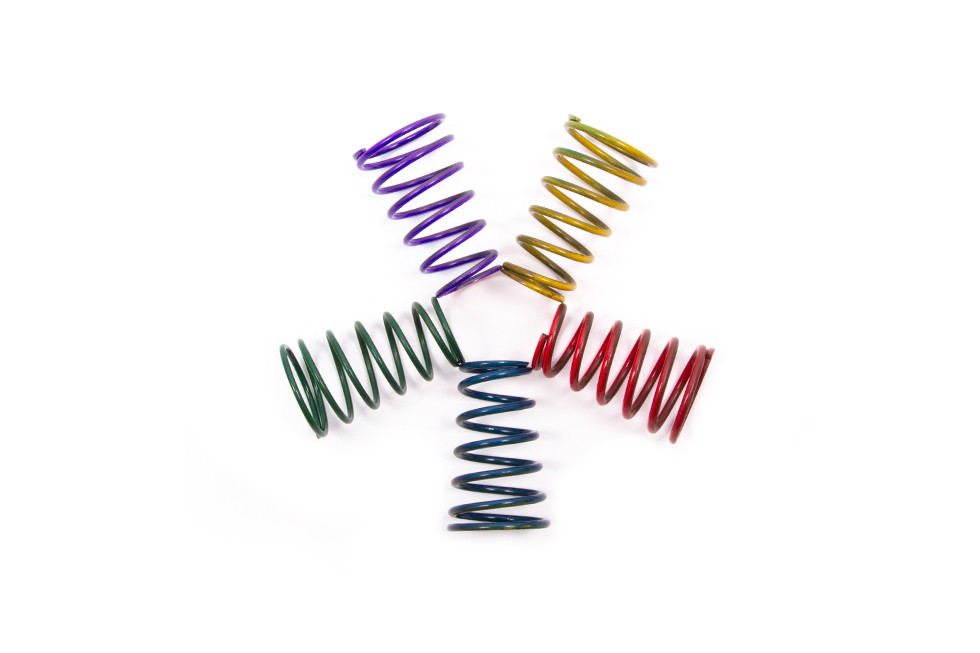

The spring colour codes and their running pressures are as listed below.

T2 049 (Small) Actuator Springs (Both Piston and Diaphragm Type 049):
Green –  running pressure 10 psi (0.7 bar) - spool up/opening pressure 5 psi (0.35 bar)
Purple - running pressure 13 psi (0.9 bar) - spool up/opening pressure 7 psi (0.5 bar)
Yellow – running pressure 15 psi (1.0 bar) - spool up/running pressure 9 psi (0.6 bar)
Blue – running pressure 18 psi (1.2 bar) - spool up/running pressure 14 psi (0.95 bar)
Red – running pressure 20 psi (1.4 bar) - spool up/running pressure 17 psi (1.1 bar)

If you are unsure if this product is suitable for your application, please contact us.


Universal:
Universal Application - Please Contact Us If You Are Unsure Whether This Product Is Suitable
