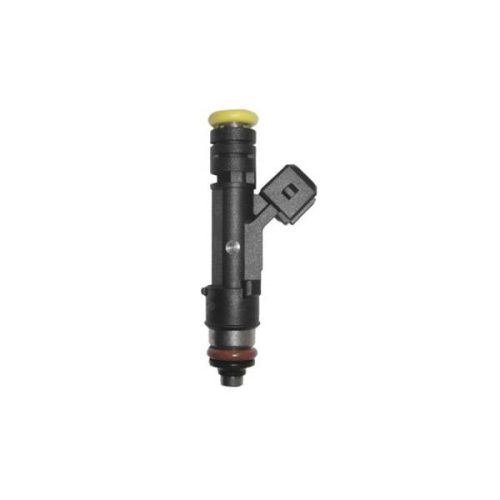

Bosch fuel injector 980cc
Net price: 85 €
BOSCH 1700cc
Coil resistance: 9.1 Ohm / High impedance
Dead time: 0.45ms at 14 volts
Static flow at 43.5 PSI (300 kPa) with gas: 1700 cm3 / min = 160 lb / hour.
Static flow at 50 PSI (350 kPa) with gas: 1875 cm3 / min = 180 lb / hour.
Static flow at 58 PSI (400 kPa) with gas: 2000 cm3 / min = 195 lb / hour.
Connector: Bosch EV1
Injector length: O-ring for O-Ring: 62 mm
Total injector length: 74 mm
Injector body diameter: 16 mm
O-ring: 14.5mm Viton
Technical data:
Coil resistance: 9.1 Ohm / High impedance
Dead time: 0.45ms at 14 volts
Static flow at 43.5 PSI (300 kPa) with gas: 1700 cm3 / min = 160 lb / hour.
Static flow at 50 PSI (350 kPa) with gas: 1875 cm3 / min = 180 lb / hour.
Static flow at 58 PSI (400 kPa) with gas: 2000 cm3 / min = 195 lb / hour.
Connector: Bosch EV1
Injector length: O-ring for O-Ring: 62 mm
Total injector length: 74 mm
Injector body diameter: 16 mm
O-ring: 14.5mm Viton
Acceptable fuels: Although Bosch advertises this injector only to work with CNG, however, many in the automotive industry also use it for gaseous/gasoline, alcohol/methanol fuels, type E85
Net price: 85 €
