Lock adapters BMW E36 ACKERMAN – STOCK ARM

The subject of the sale is a set of adapters with a set of mounting bolts for the factory control arms.

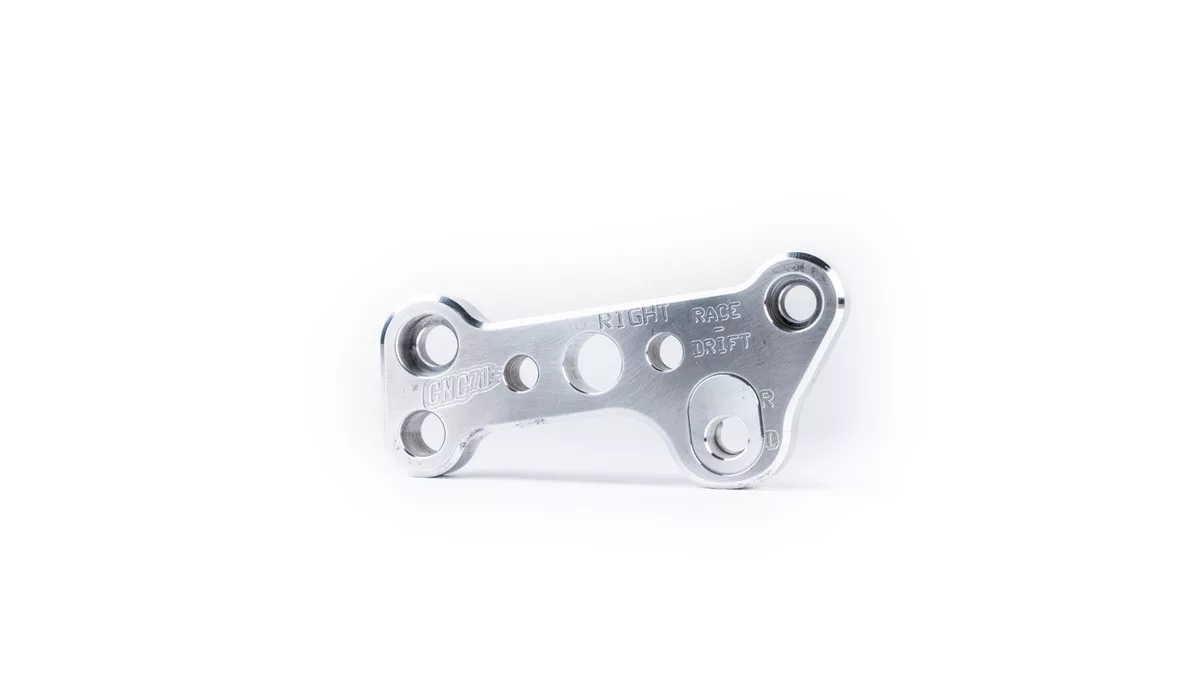

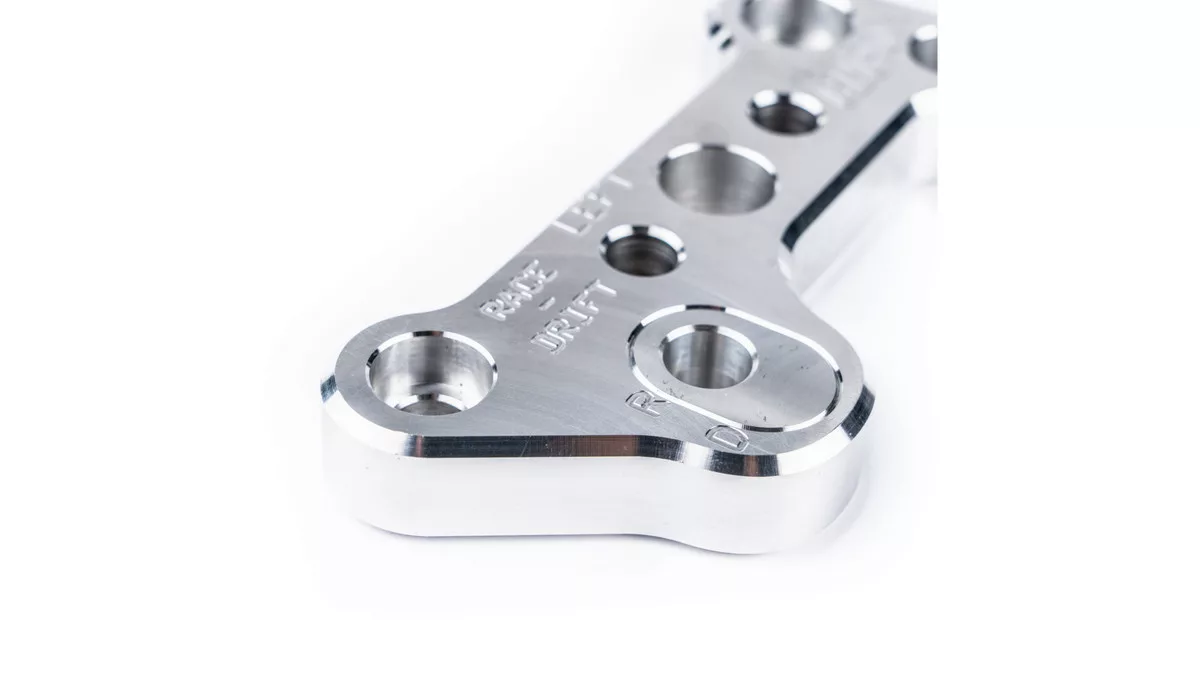

This product allows to adjust Ackerman geometry in two ways - DRIFT and RACE.

Adapters are milled on CNC machines, which gives a high quality finish and 100% matching of the adapter to the steering knuckle and pin ends. For E36 M3 the adapters are made of the hardest aluminum acc. To Polish standards.

During assembly, the steering rod and tie rod end should be shortened by 1 centimeter, bodywork remains intact.

The minimum inside diameter of the rim to fit the adapter is 370mm.

Adapters extend the spacing by 2 cm per side. To obtain approximately 55 degrees of twist.

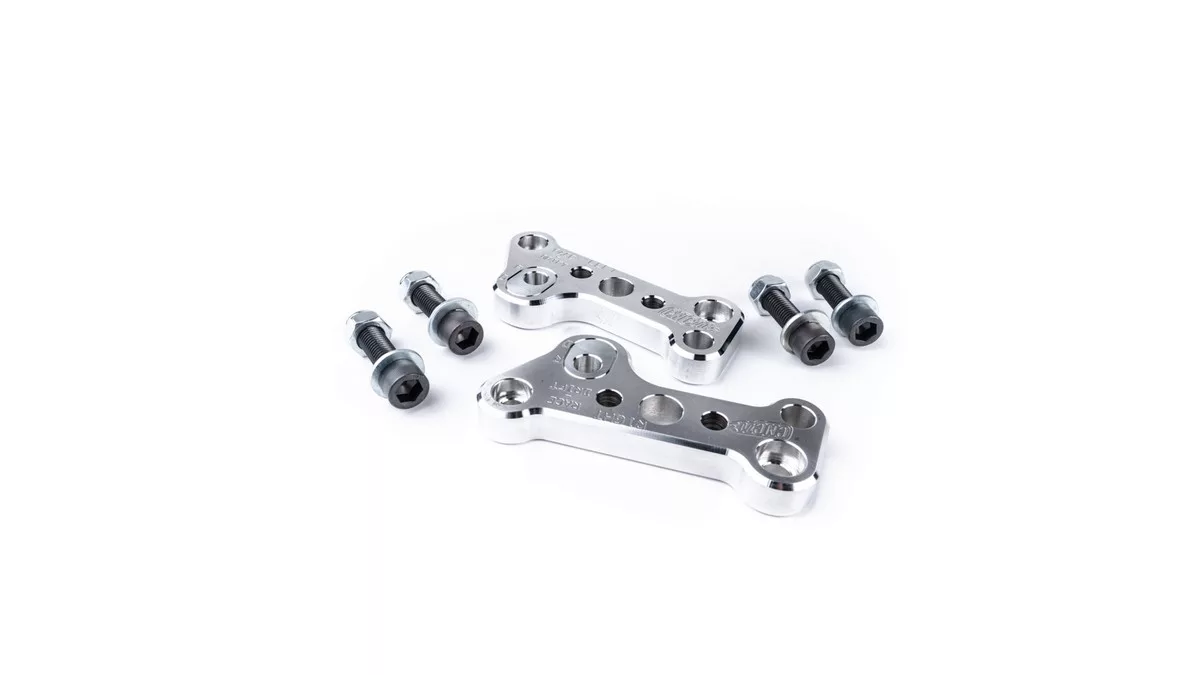

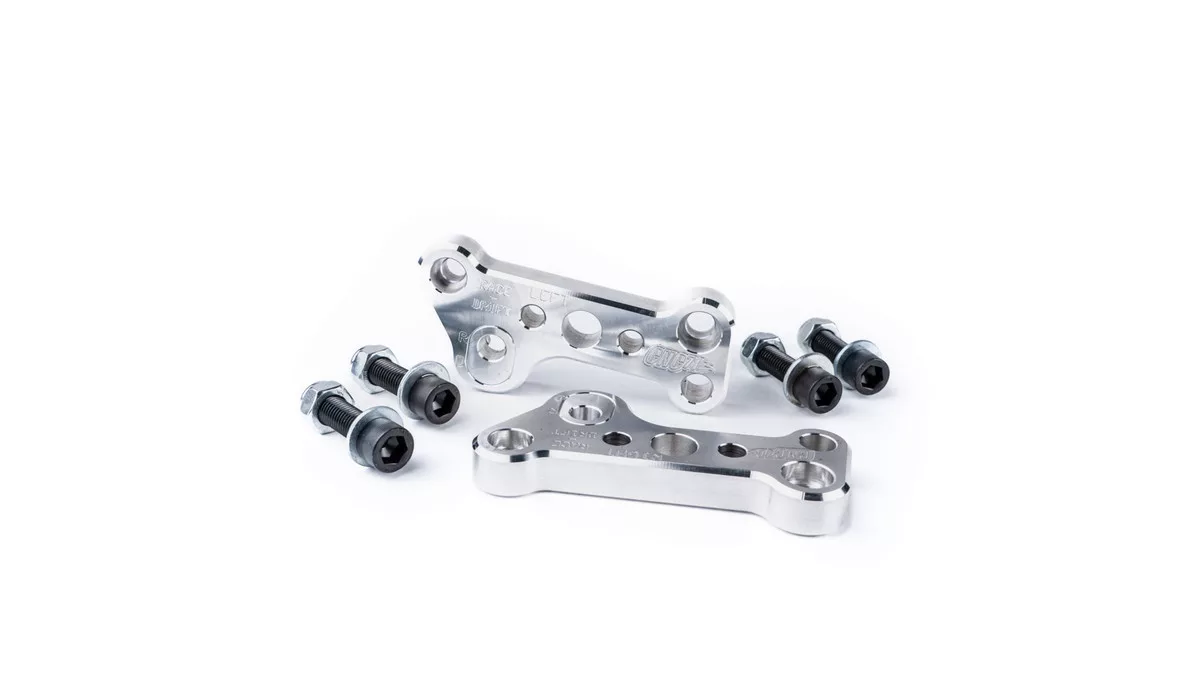

The kit includes:

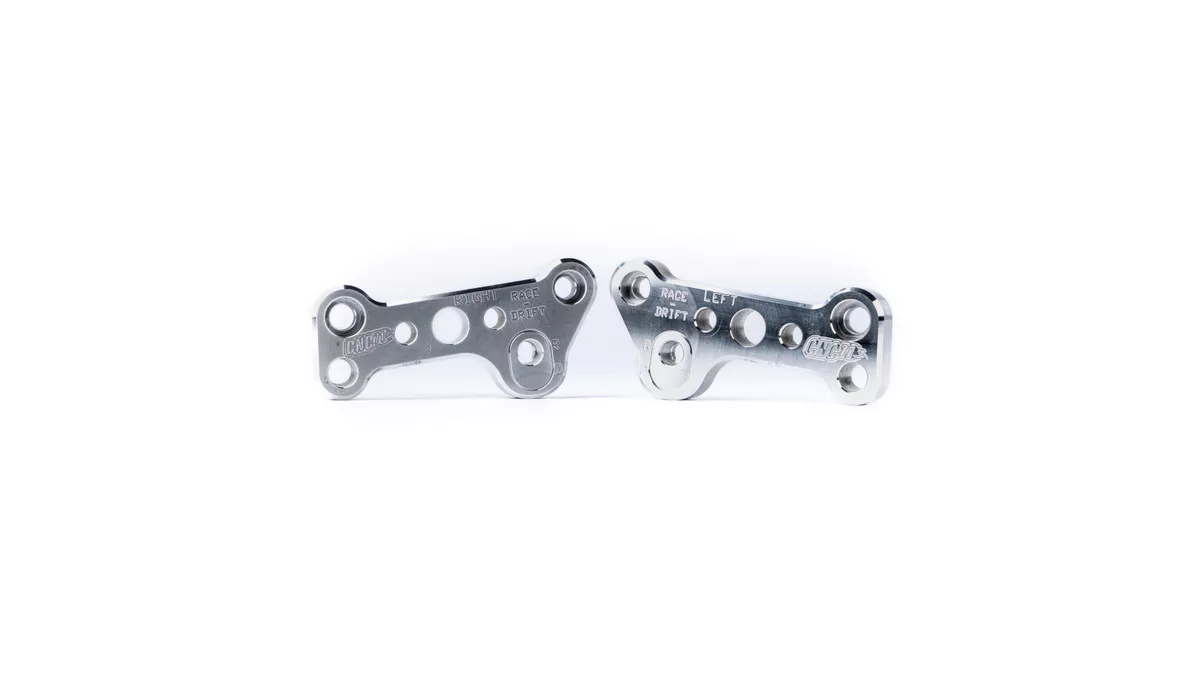

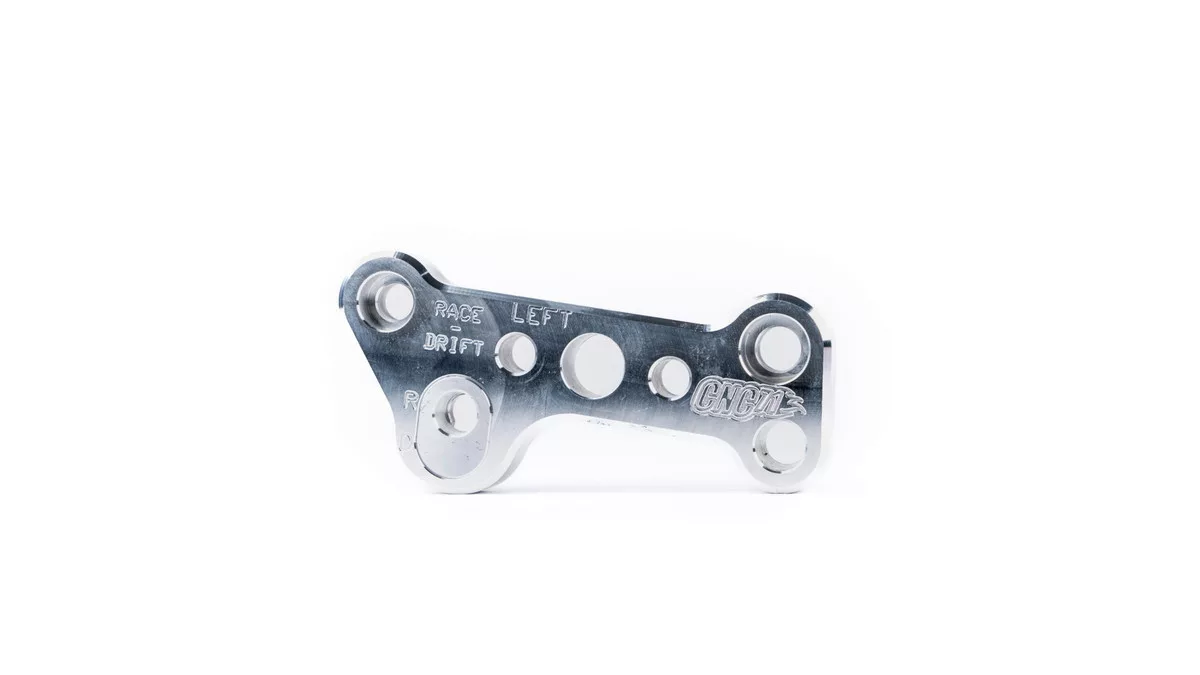

• LEFT knuckle adapter - 1 piece
• RIGHT knuckle adapter - 1 piece
• fixing bolts - 4 pieces,

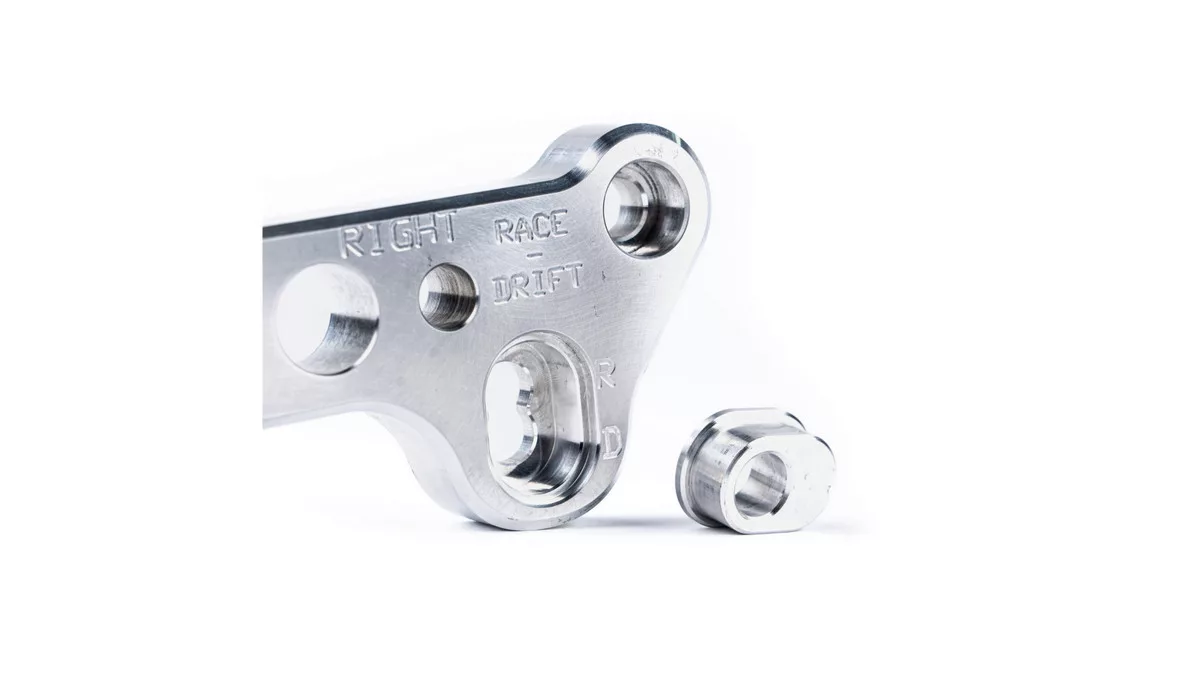

• Ackermann adjusters - 2 pieces

We add assembly instructions to the set
