Reference: 276257B

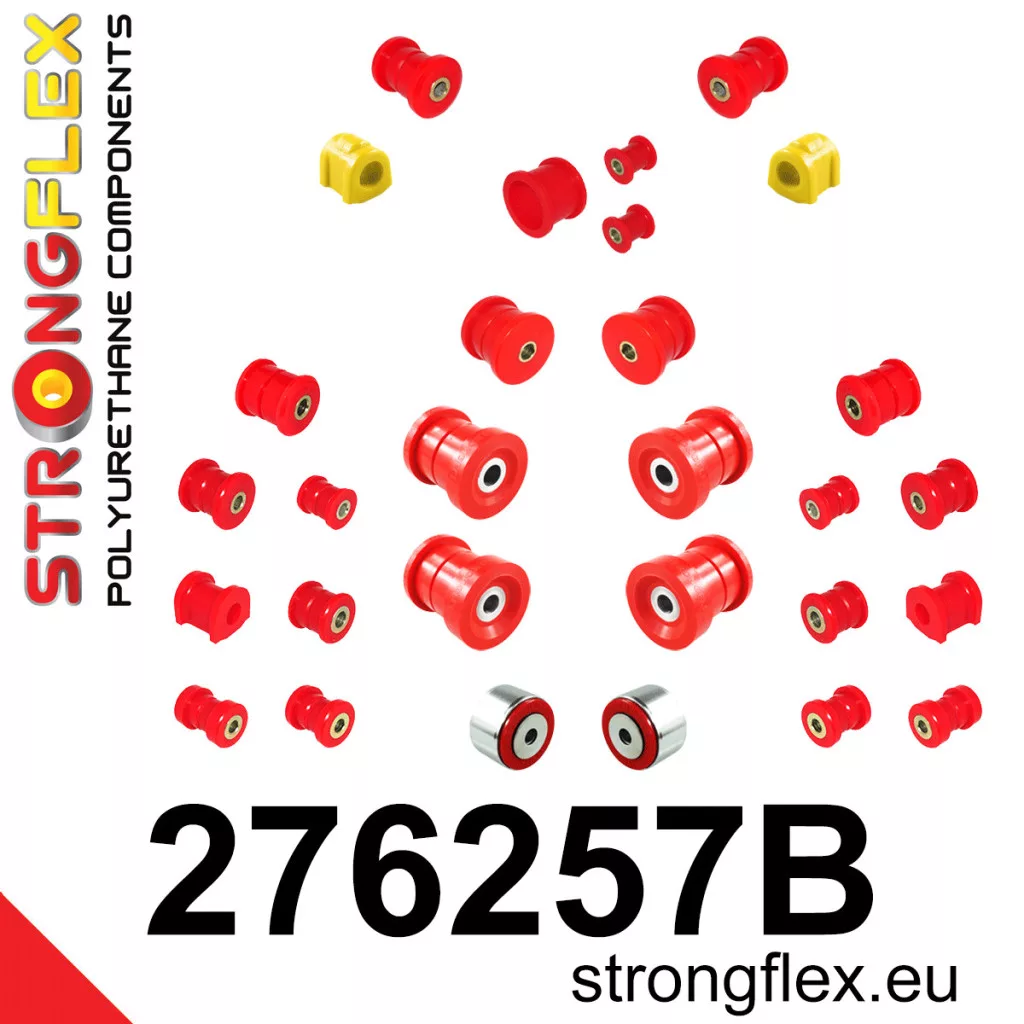

Product name: Full suspension polyurethane bush kit

Fits to:

• Subaru Levorg (14-20) VM


• Subaru WRX STI (14-22) VA

Include:

• 2x 271529B: Front arm front bush


• 2x 271922A: Front anti roll bar bush SPORT




• 2x 271698B: Rear trailing arm front bush


• 2x 271611B: Rear trailing arm rear bush


• 2x 271612B: Rear toe adjuster inner bush


• 2x 271613B: Rear lower track control inner bush


• 2x 271614B: Rear upper arm front bush


• 2x 271615B: Rear upper arm rear bush


• 2x 271616B: Rear anti roll bar bush




• 2x 271541B: Rear diff front mounting bush


• 2x 271923B: Rear subframe – front bush


• 2x 271924B: Rear subframe – rear bush


• 2x 271925B: Rear differential – rear bush




• 0/1x 271620B: Steering rack mount bush


• 0/2x 271621B: Steering rack mount bush

Diagrams:

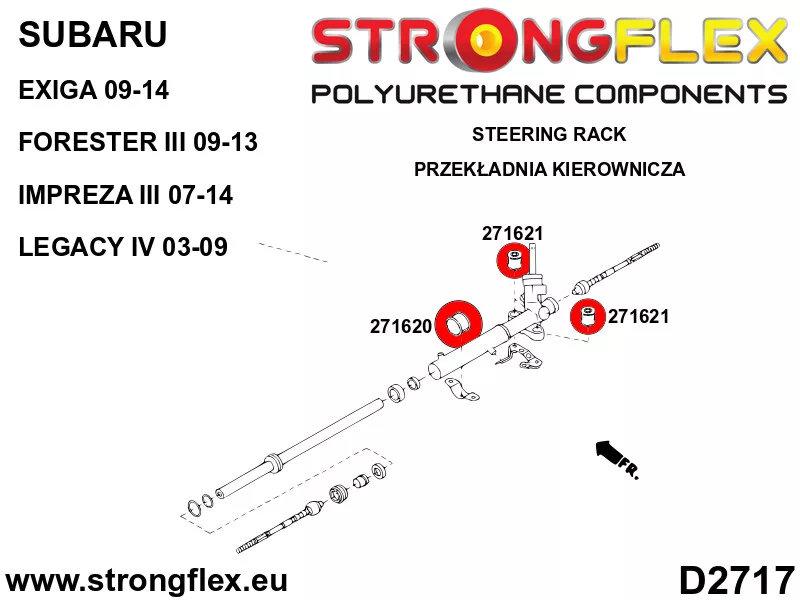

• D2717

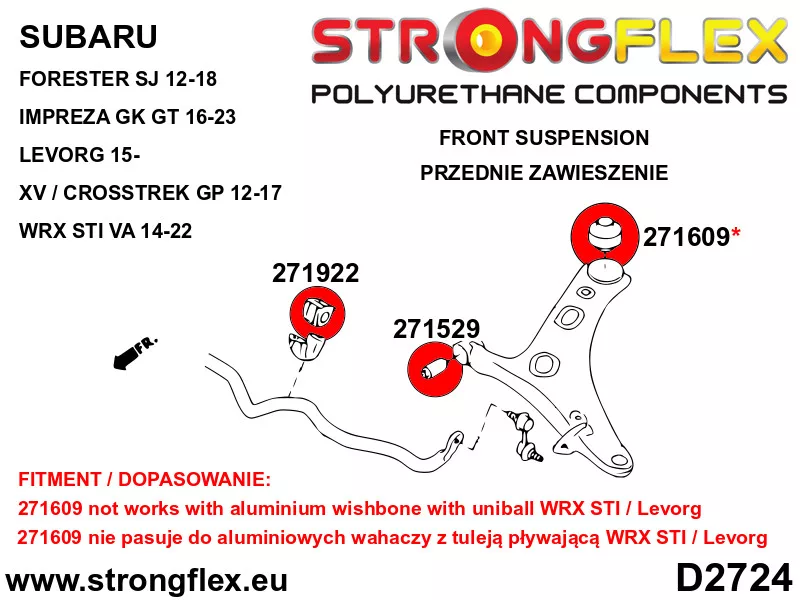

• D2724

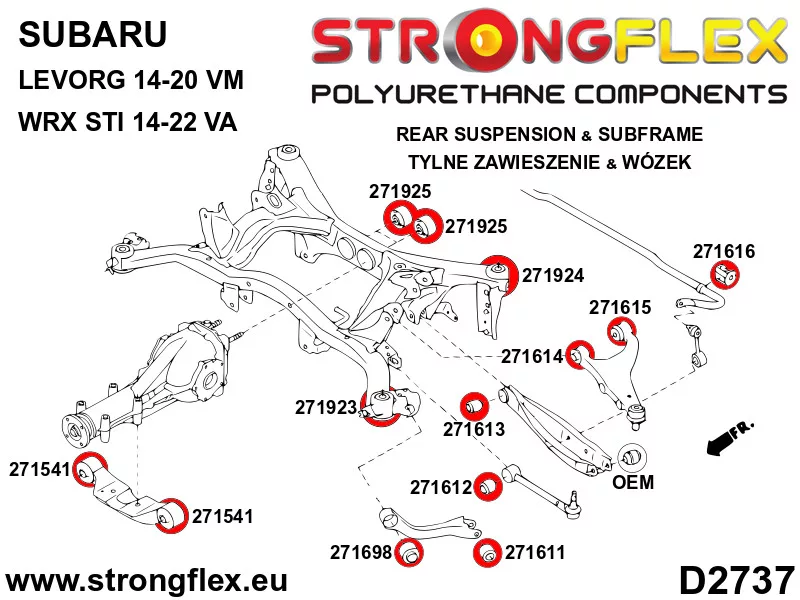

• D2737

Notes

• Steering gear bushings:
  Bushings 271620 and 271621 fit hydraulic steering gear only. They do not fit electric steering gear.




• For bushes 271923 and 271924:
  During assembly, original metal washers must be used between the polyurethane bushes and the chassis.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26/29

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
