Reference: 081105B

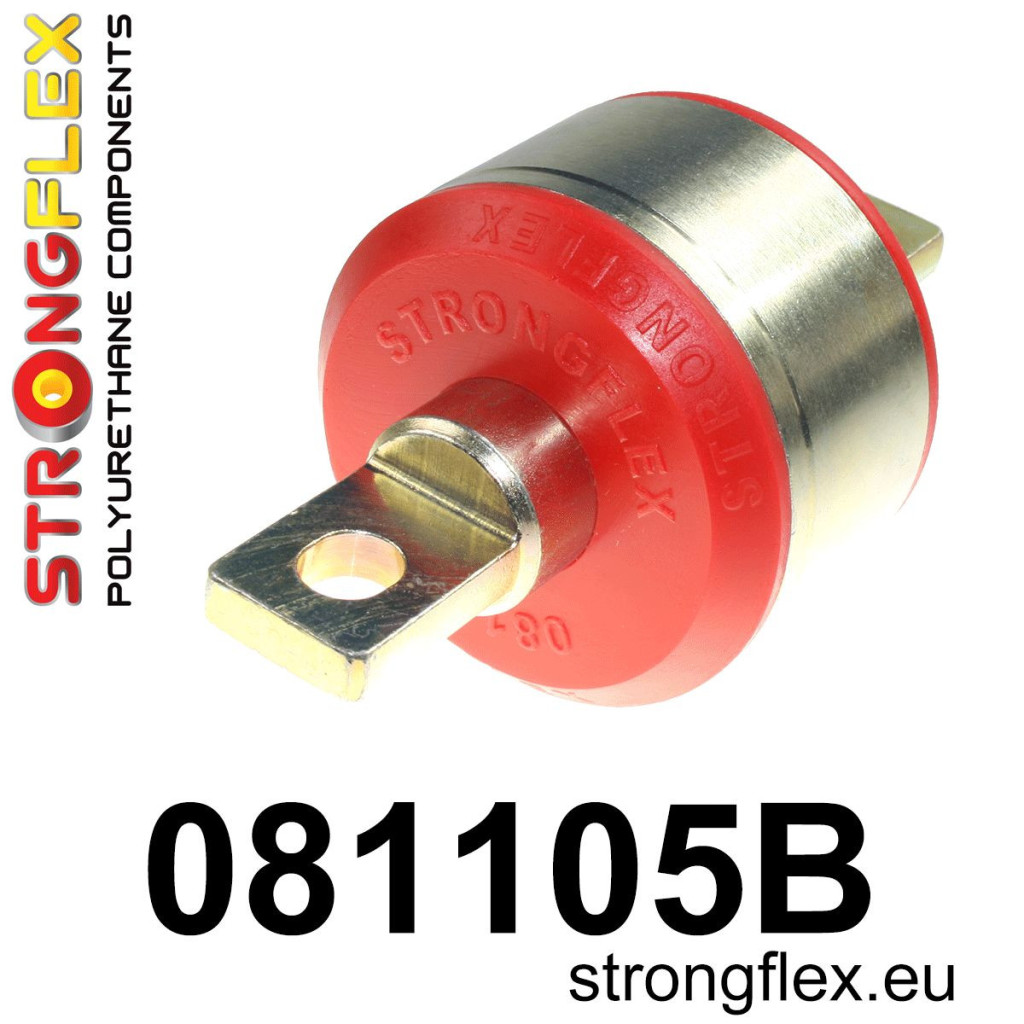

Product name: Rear trailing arm mount bush

Fits to:

• Acura Integra III (93-01) DB6/7/8/9 / DC1/2/4 DC1/4


• Acura Integra III (95-00) DC2 Type R




• Honda CR-V I (95-02) RD1 / RD2 / RD3


• Honda CRX II (88-91)


• Honda CRX del Sol (92-97)


• Honda Civic IV (88-91) EC / ED / EE / EF / EX


• Honda Civic V (91-95) EG / EH / EJ


• Honda Civic VI (95-00) JAPAN


• Honda Civic VI (95-00) UK


• Honda Concerto (88-95)


• Honda Integra III (93-01) DB6/7/8/9 / DC1/2/4 DC1/4


• Honda Integra III (97-01) DC2 Type R




• MG ZS / 5 (95-07)




• Rover 400 II (95-00) HH-R


• Rover 45 (99-05)

OEM

• 52385-SR3-000

NOTES!

Bushings can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).

To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.

The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.

Diagrams:

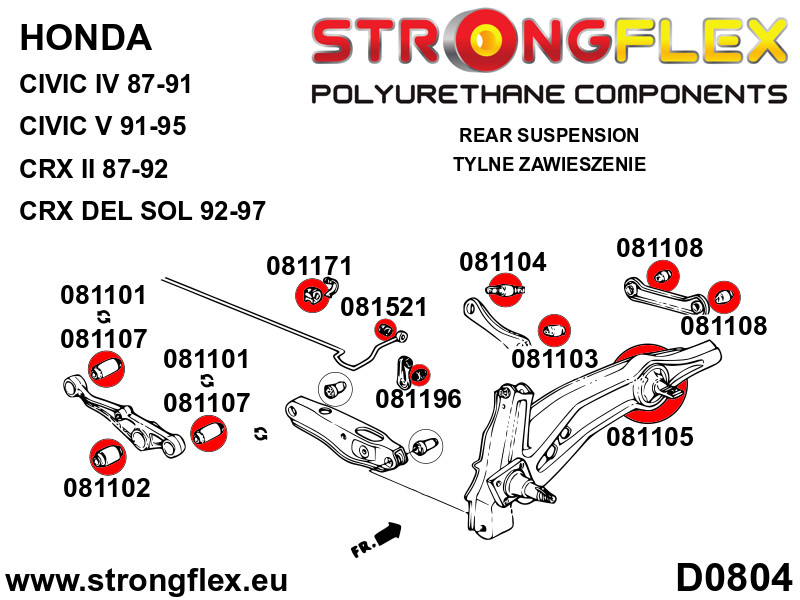

• D0804

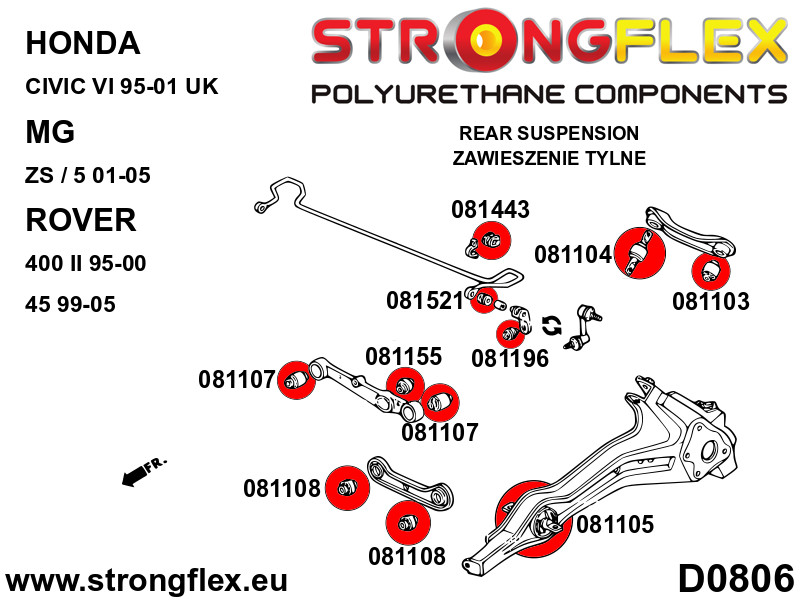

• D0806

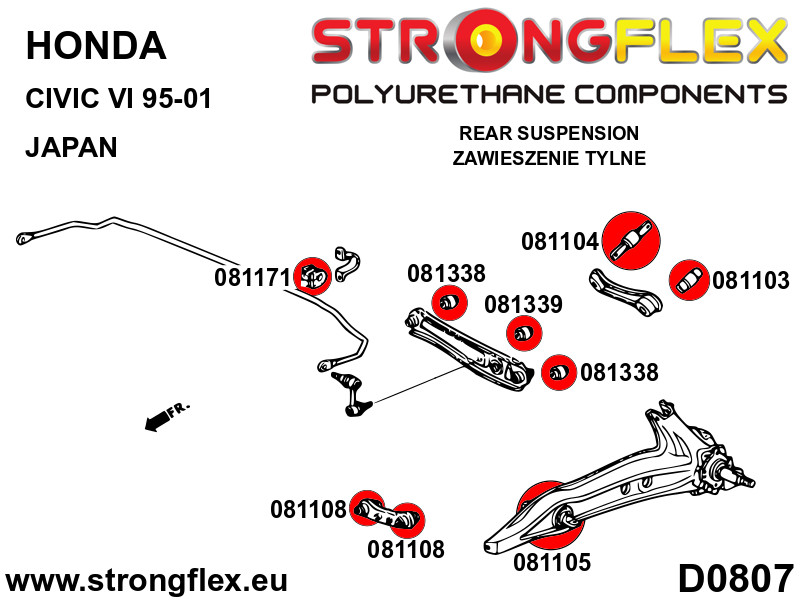

• D0807

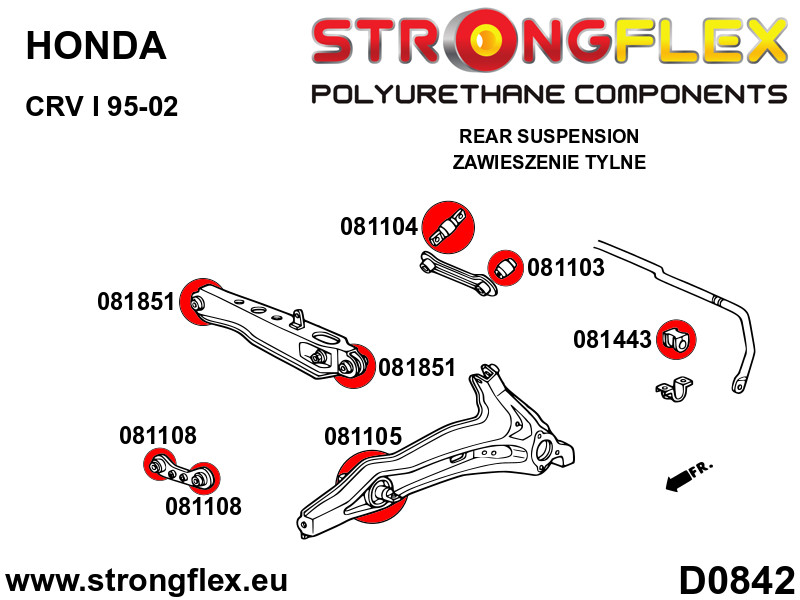

• D0842

Required/car: 2

Pcs / prod: 1

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
