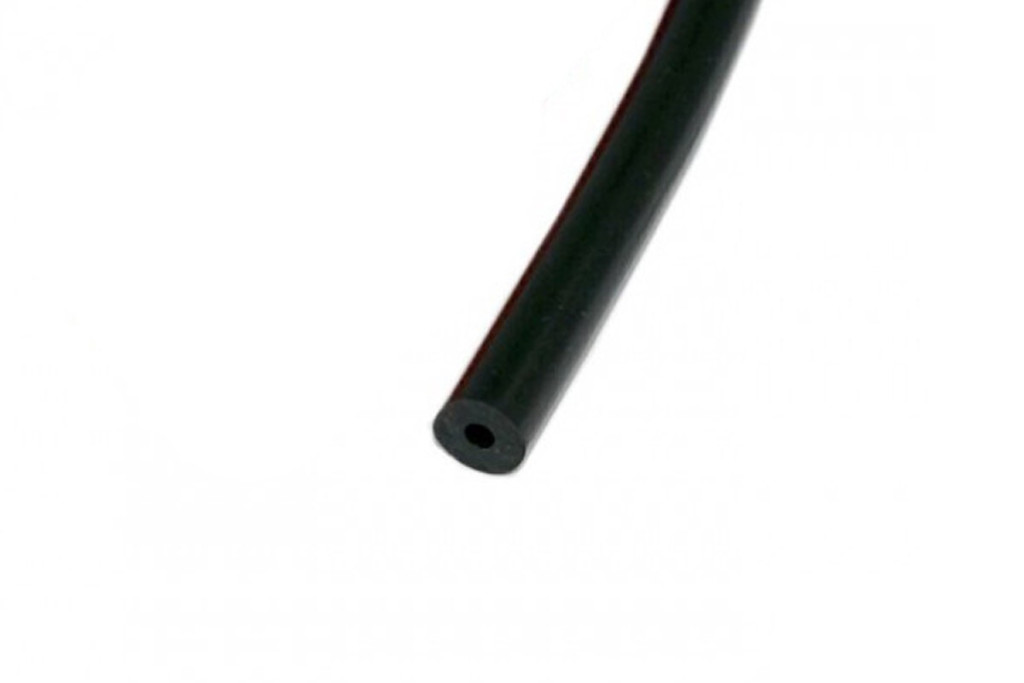

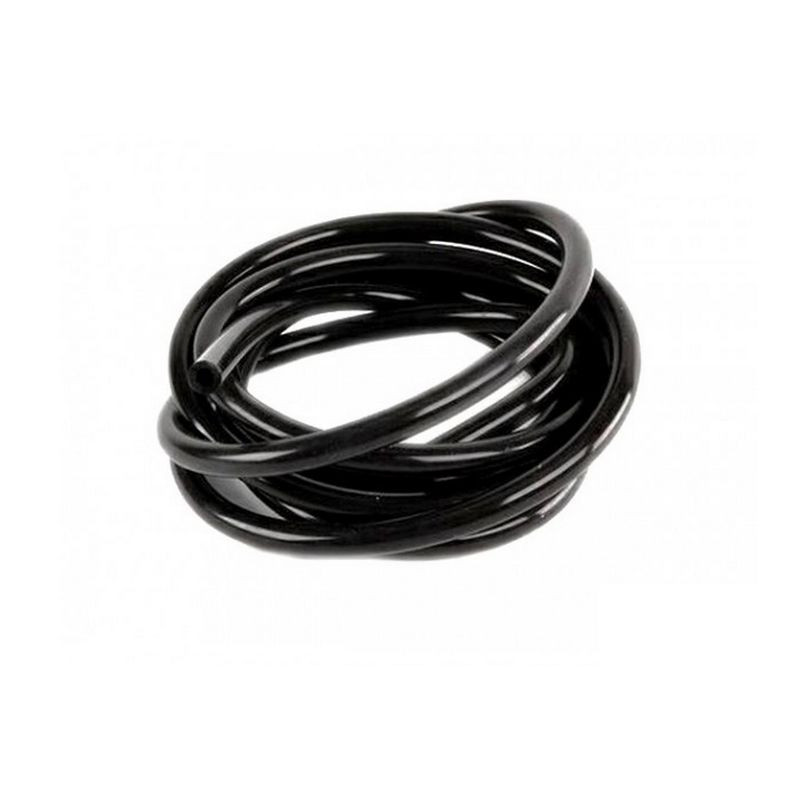

Silicone Vacuum Hose TurboWorks 3mm, Black
TurboWorks silicone vacuum hose with 3 mm inner diameter and 2 mm wall thickness (±0.5 mm), rated for -60°C to +260°C and up to 5 bar. Black finish, supplied as a running meter for vacuum and pressure signal routing.
Net price: 2 €
Key Features & Benefits – TurboWorks silicone vacuum hose 3mm black
The TurboWorks silicone vacuum hose 3mm black is made from 100% silicone and is intended for vacuum and pressure systems where a small, flexible line is required.
The silicone material is compatible with oil vapours, lubricants and coolants, with a temperature range of -60°C to +260°C and a stated maximum pressure of 5 bar. Typical uses include blow-off valve control, pressure and vacuum sensors, turbo and EGR connections, and HVAC routing.
When is this useful?
It fits applications where a 3 mm signal line needs clean routing in the engine bay and you want heat resistance and flexible installation for vacuum or pressure references.
Technical specs
- Brand: TurboWorks
- Material: 100% silicone
- Color: black
- Inner diameter: 3 mm
- Wall thickness: 2 mm (±0.5 mm)
- Temperature range: -60°C to +260°C
- Maximum pressure: 5 bar
- Supply: sold by running meter
Selection & installation tips
- Size check: measure the barb outside diameter and match it to the hose 3 mm inner diameter for a secure push-on fit.
- Retention: use an appropriate clamp or retainer where needed to prevent the hose slipping under vibration.
- Heat routing: keep distance from hot components, especially around the exhaust side.
- Media & purpose: this hose is intended for vacuum/pressure lines and is not suitable for liquid transfer.
- Protection: avoid sharp edges and tight kinks, and use grommets where the line passes through panels.
Before installation, verify the required diameter, expected temperature exposure and system pressure range, then compare them with the technical specs listed above.
Net price: 2 €
