Key Features & Benefits – TurboWorks silicone hose straight reducer 67-76mm red

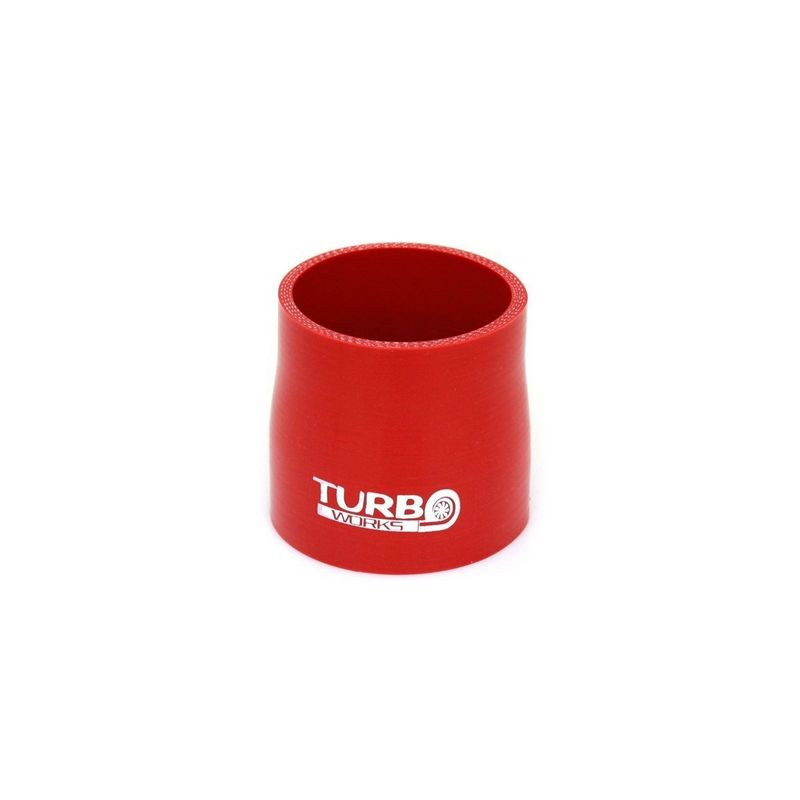

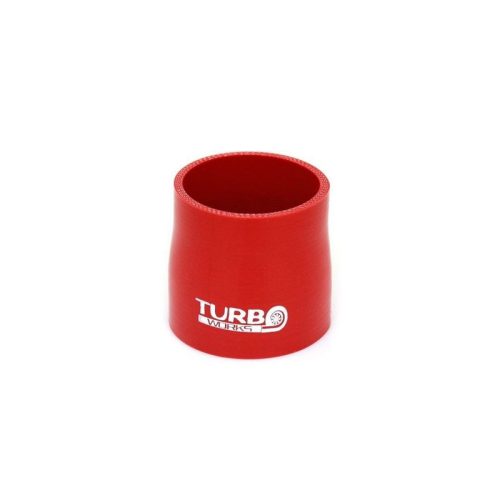

TurboWorks silicone hose straight reducer 67-76mm red is a straight reducer designed to connect 67mm and 76mm hose/pipe ends. It can be used in the intake system, cooling system, and intercooler piping where a diameter change is needed.

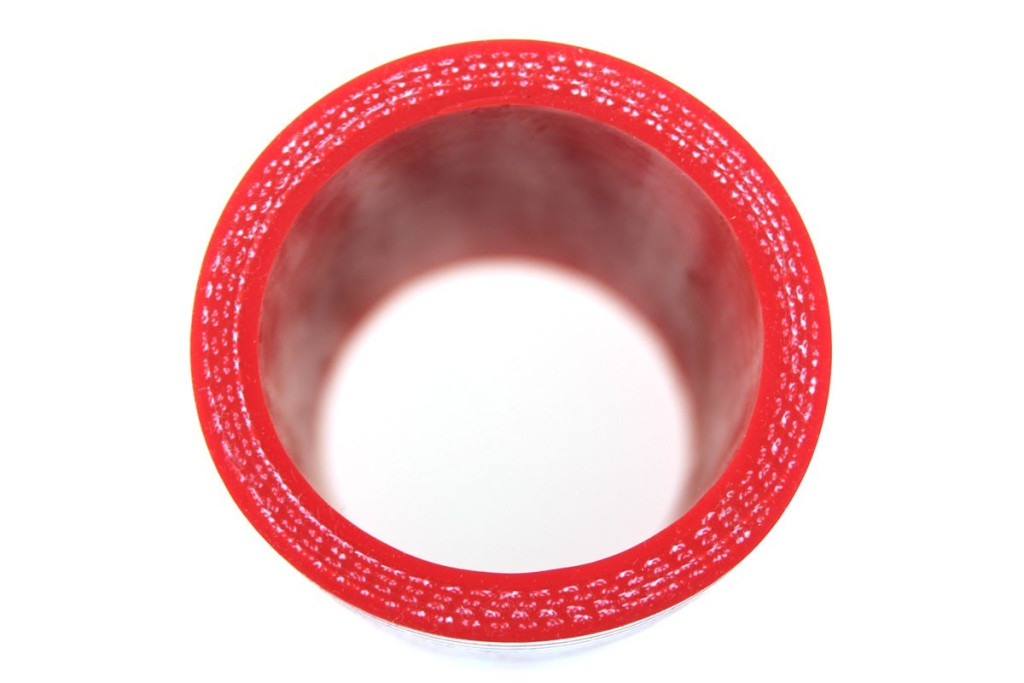

The 4-layer reinforcement supports stable joints, the part is tested up to 7 bar, and it is intended for a -50 to +260°C temperature range. The silicone material resists coolants, greases, and oil vapors for mixed operating environments.
When is this useful?
This is useful when one side of your setup needs a 67mm connection and the other needs 76mm, and you want a clean, straight transition between sections. It helps solve a diameter change without stacking multiple adapters.
Technical specs
- Brand: TurboWorks
- Item code: CN-SL-048
- Material: silicone
- Color: red
- Type: straight reducer
- Dimensions: D1 = 67mm, D2 = 76mm
- Layers: 4
- Tested: up to 7 bar
- Temperature range: -50 to +260°C
- Application: intake system, cooling system, intercooler
- EAN: 5903713116882
Selection & installation tips
- Diameter check: measure your pipe/hose ends and match them to the 67mm and 76mm sides.
- End prep: use clean, burr-free ends so sharp edges do not stress the silicone.
- Clamps: choose correctly sized clamps for both diameters and tighten evenly around the circumference.
- Engagement length: ensure enough insertion on each side so the clamp compresses the full sealing area.
- Operating range: compare your system temperature and pressure to the -50 to +260°C range and the tested up to 7 bar figure.
Before installation, verify both connection diameters, the condition of the mating ends, and clamp fitment, then compare the listed specs to your actual routing and joint layout.
