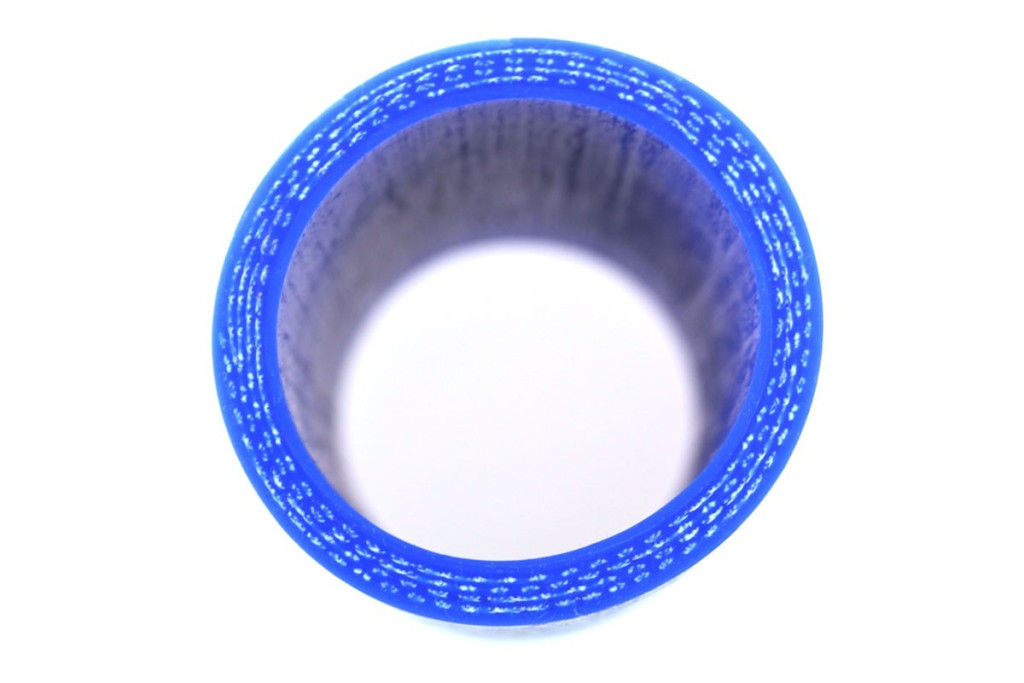

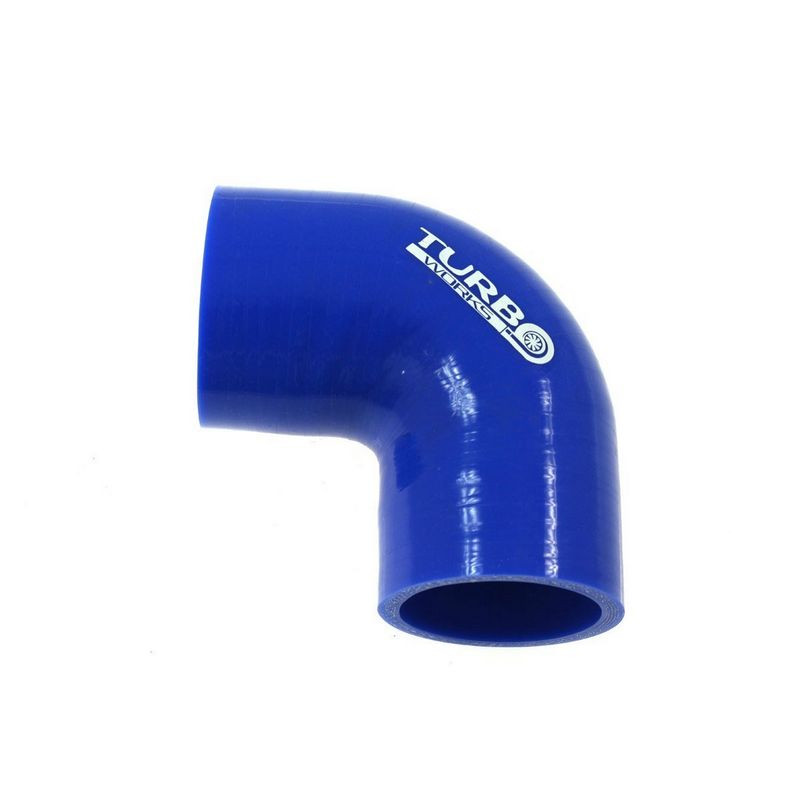

Key Features & Benefits – TurboWorks silicone hose 90 degree reducer 51–57 mm blue
The TurboWorks silicone hose 90 degree reducer 51–57 mm blue is a 90° silicone reducer elbow designed to join 51 mm and 57 mm pipe ends. It suits intake, cooling and intercooler piping where you need both a turn and a diameter transition in one connector.
It has a 4-layer construction, is tested to 7 bar, and the stated temperature range is -50 to +260 °C. The listed dimensions are D1 = 51 mm, D2 = 57 mm, L = 100 mm, which helps you plan clamp placement and clearance.
When is this useful?
Use it on turbo and intake pipework when a 90° reroute is needed while stepping from 51 mm to 57 mm. It also fits cooling or intercooler layouts when you are connecting two different outlet sizes with a tidy, serviceable bend.
Technical specs
- Brand: TurboWorks
- Type: 90° reducer
- Color: Blue
- Diameter (D1): 51 mm
- Diameter (D2): 57 mm
- Length (L): 100 mm
- Layers: 4-layer
- Tested pressure: 7 bar
- Temperature range: -50 to +260 °C
- General resistance: refrigerants, greases, oil vapors
Selection & installation tips
- D1/D2 check: measure the outer diameter of the mating pipe ends and match the reducer sizes to your join method.
- Straight length for clamps: confirm there is enough straight section at both ends so the clamp does not sit on the bend radius.
- Bead and blow-off control: a beaded pipe end helps the hose stay in place under load compared to a plain cut tube.
- Clamp sizing: choose clamps whose adjustment range fits the hose outer diameter and applies even pressure.
- Heat and rubbing: keep clearance to hot or moving parts and avoid contact with sharp edges.
Before installation, verify the mating pipe diameters, available space and clamp positions, then compare them to the D1, D2 and L values listed above. This keeps the TurboWorks silicone hose 90 degree reducer 51–57 mm blue predictable to fit in your own piping layout.
