Key Features & Benefits – TurboWorks PRO silicone hose 90 degree elbow 63mm blue

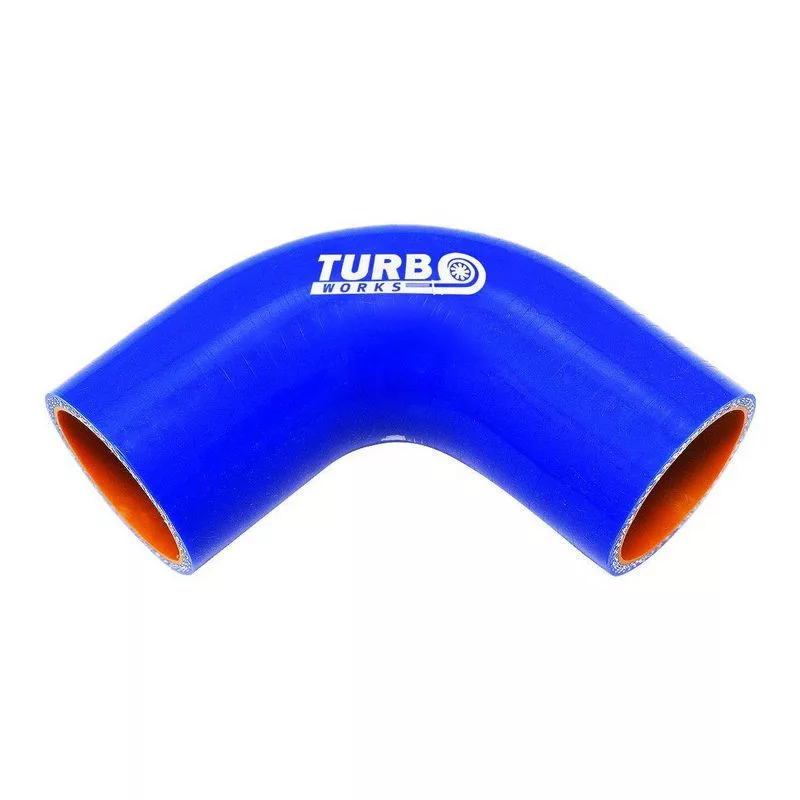

TurboWorks PRO silicone hose 90 degree elbow 63mm blue is a 90° silicone hose elbow designed to join 63mm hose/pipe ends. It fits intake system, cooling system, and intercooler piping layouts where you need a direction change while keeping the same diameter.
The part uses 4-layer reinforcement with a 5.5–6mm wall thickness, is tested up to 8 bar, and is designed for a -70 to +260°C temperature range. The silicone compound resists oil vapors, grease, and cooling fluids in mixed operating environments.
When is this useful?
This is useful when you need to turn a 63mm pipe run through a tight area with a clean 90° bend and no diameter change. It helps keep hose routing compact and reduces stress from forcing straight sections into an angle.
Technical specs
- Brand: TurboWorks
- Series: PRO
- Part number: TW-2067
- Material: silicone
- Color: blue
- Shape: 90° elbow
- Dimensions: D1 = 63mm; D2 = 63mm; L = 100mm
- Layers: 4
- Wall thickness: 5.5–6mm
- Tested: up to 8 bar
- Temperature range: -70 to +260°C
- EAN: 5903713108924
Selection & installation tips
- Diameter match: measure both mating ends and confirm they suit a 63mm connection.
- Packaging: allow for the elbow sweep and the L = 100mm length so the hose is not forced into tension.
- Clamps: use correctly sized clamps for 63mm and tighten evenly around the circumference.
- End preparation: use clean, burr-free ends so sharp edges do not stress the silicone.
- Operating limits: compare your system load to the -70 to +260°C range and the tested up to 8 bar figure.
Before installation, compare your routing to the 63mm connections and the L = 100mm dimension, then re-check clamp seating and leak tightness after fitting.
