Key Features & Benefits – TurboWorks silicone hose 90 degree elbow 76mm red

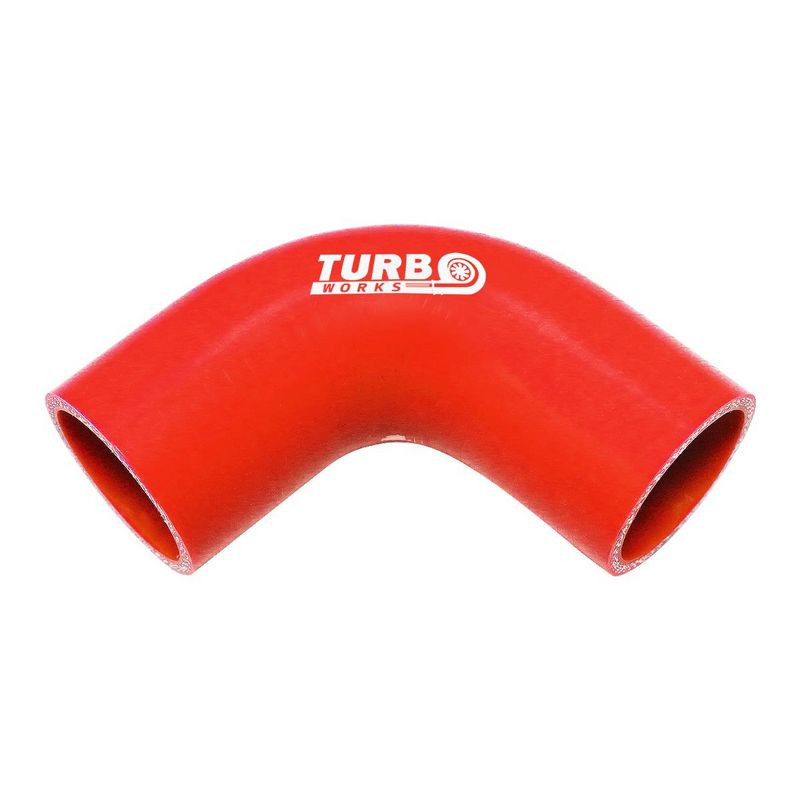

TurboWorks silicone hose 90 degree elbow 76mm red is a 90° silicone connector designed to join 76mm hose/pipe ends. Typical use areas include the intake system, cooling system, and intercooler piping where a clean direction change is needed.

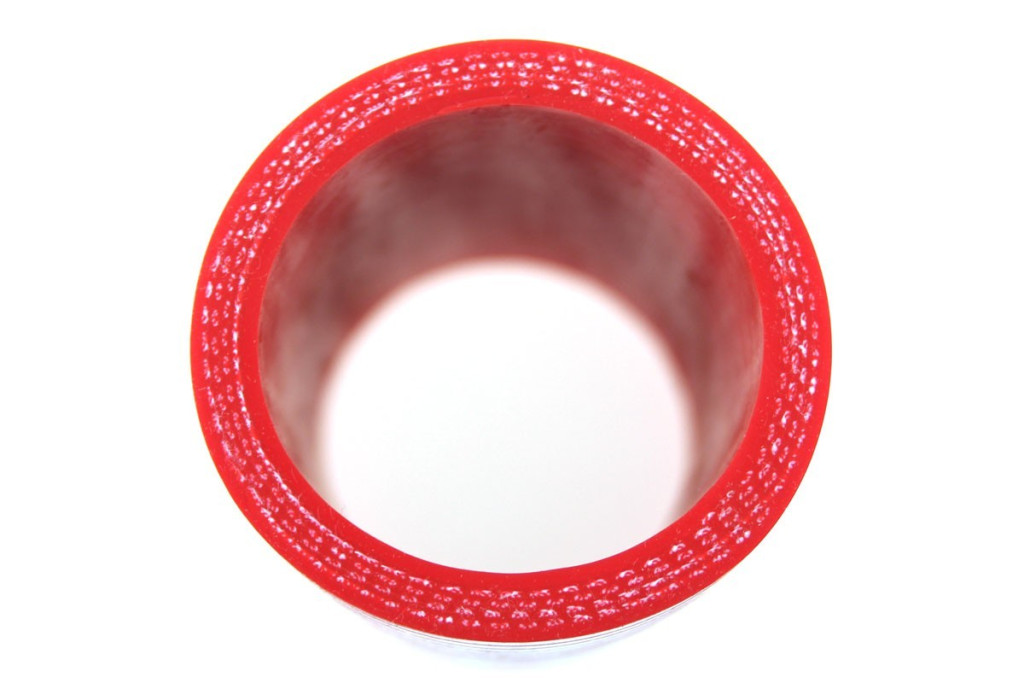

The 4-layer reinforcement and 6mm wall thickness are intended for durable hose joints, and the part is tested up to 7 bar. The silicone material is suitable across a -50 to +260°C range and resists refrigerants, greases, and oil vapors.
When is this useful?
This is useful when you need to route a 76mm pipe run around a tight corner while keeping a 90° turn and the same diameter on both ends. It helps connect straight sections cleanly when packaging or layout requires an elbow instead of a straight coupler.
Technical specs
- Brand: TurboWorks
- Item code: CN-SL-017
- Material: silicone
- Color: red
- Shape: 90° elbow

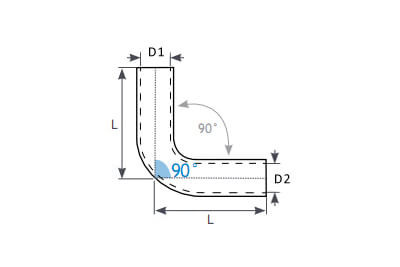

- Dimensions: D1 = 76mm, D2 = 76mm, L = 100mm
- Layers: 4
- Wall thickness: 6mm
- Tested: up to 7 bar
- Temperature range: -50 to +260°C
- Application: intake system, cooling system, intercooler
- EAN: 5903713115380
Selection & installation tips
- Diameter match: confirm your hose/pipe ends are sized to suit the 76mm connection.
- Clearance: check available space for the elbow sweep and account for L = 100mm.
- Clamps: use correctly sized clamps and tighten evenly so the full bead area is compressed uniformly.
- End preparation: work with clean, burr-free ends to avoid cutting or stressing the silicone.
- Operating conditions: compare your system temperature and pressure to the -50 to +260°C range and the tested up to 7 bar figure.
Before installation, compare the 76mm connection size, the 90° bend, and the L = 100mm dimension to your routing, then verify the clamp load is even around the full circumference.
