Key Features & Benefits – SGB Clamp 11-13mm Stainless

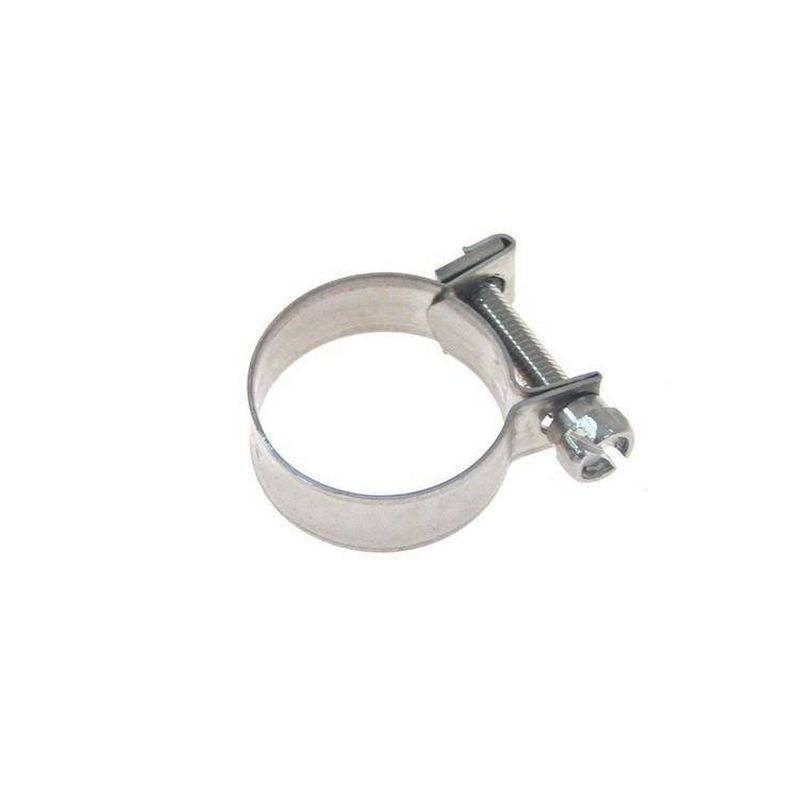

The SGB Clamp 11-13mm Stainless is a compact hose clamp designed for 11–13 mm mounting diameter. It suits vacuum hoses and water hoses where consistent clamping and tight packaging matter.
The clamp uses a 304SS stainless steel band and a design intended to distribute force evenly around the hose, helping reduce the risk of damage. With 9 mm band width and 0.8 mm band thickness, it fits neatly into crowded engine-bay routing.
When is this useful?
Use it when you need a tidy, secure clamp on small-diameter vacuum or water lines, especially on short hose runs where slip-off prevention is a priority.
Technical specs
- Mounting diameter: 11–13 mm
- Band thickness: 0.8 mm
- Band width: 9 mm
- Material: 304SS stainless steel
- Tooling: 7 mm spanner or slotted screwdriver
Selection & installation tips
- Measure first: confirm the hose outer diameter on the fitting falls within the 11–13 mm range.
- Check clearance: make sure the 9 mm band width fits the available space around the hose.
- Clamp position: place it behind the fitting bead and keep it square to the hose for even contact.
- Tightening: tighten gradually while ensuring the band seats uniformly around the circumference.
- Re-check: inspect clamp tightness after initial use, especially in temperature-cycling areas.
Before choosing, verify the hose outer diameter in the installed condition and the surrounding clearance; compare your measurements to the specs above, including the band width.
