Key Features & Benefits – Sensor installation T-piece adapter M10x1.0

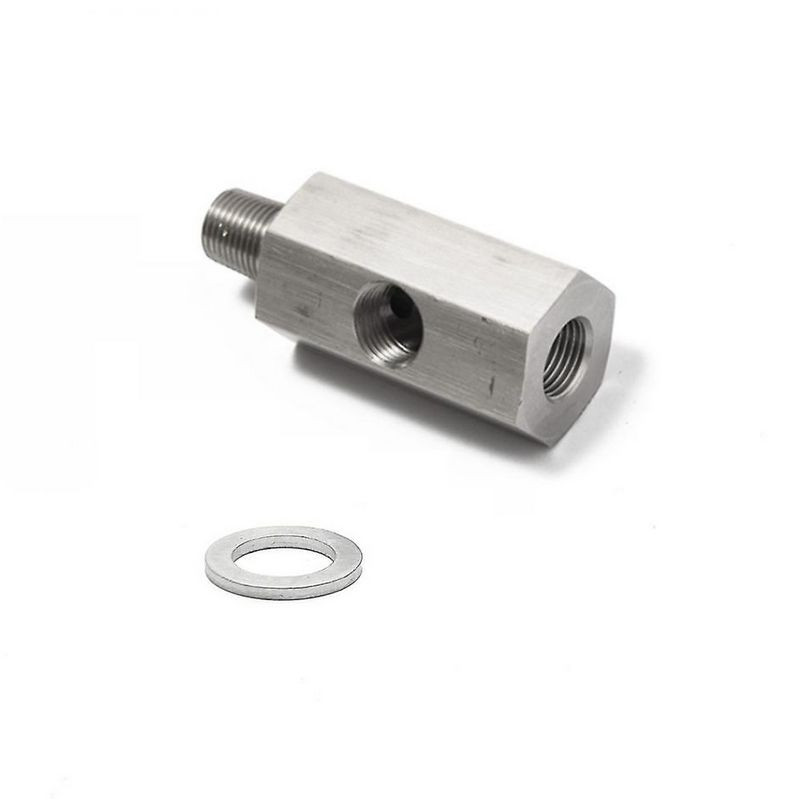

The sensor installation T-piece adapter M10x1.0 is a compact T fitting that lets you create multiple take-offs from one connection point. Functionally, it suits oil and pressure systems where M10x1.0 metric threads are the starting size.
The body is made from 304 stainless steel. With three M10x1.0 threads, it supports fitting sensors, pressure switches, or oil feed connections at the same time while keeping the layout space-efficient in the engine bay.
When is this useful?
If you want to run an oil pressure gauge/sensor and a turbo oil feed from the same oil pressure point, or add multiple pressure sensors, the sensor installation T-piece adapter M10x1.0 helps keep the connections organised at a single location.
Technical specs
- Material: 304 stainless steel
- Overall length: 50 mm
- Body length: 38 mm
- Hex (wrench size): 19 mm

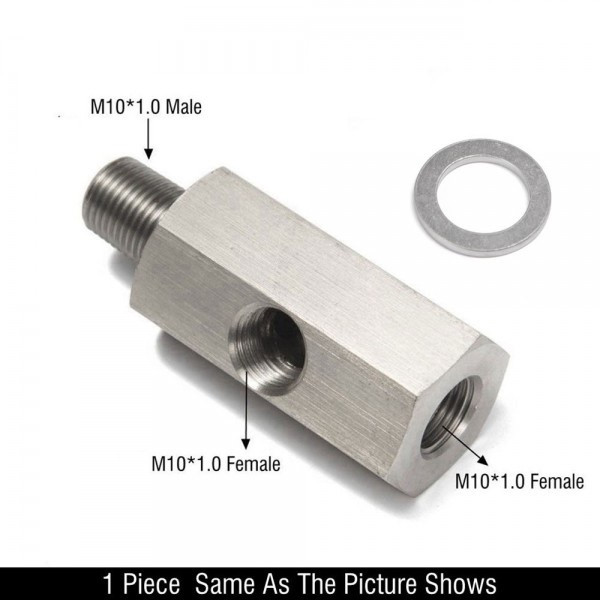

- End thread 1: M10x1.0 male
- End thread 2: M10x1.0 female
- Centre thread: M10x1.0 female
- Part number: EP-CGQ68
- Applications: oil pressure gauge, turbo oil feed, pressure sensors, coolant temperature sensor connections
Selection & installation tips
- Thread verification: confirm all involved ports and fittings are M10x1.0, not a different M10 pitch.
- Space planning: account for the 50 mm overall length plus hose/fitting bend clearance.
- Tool access: position the adapter so you can reach the 19 mm hex for tightening.
- Sealing: use a sealing method suitable for your system threads and check mating faces are clean.
- Post-start inspection: after startup, inspect all joints for leaks and re-check under operating conditions.
Before fitting, self-verify thread sizes, available space, and sealing approach, then compare your setup to the technical specs above to ensure the T-piece adapter matches your system.
