Key Features & Benefits – MGP AN6 fuel pressure regulator kit red/black
The MGP AN6 fuel pressure regulator kit red/black is a universal set for EFI fuel systems, designed to support fuel pressure adjustment and monitoring. Plumbing is based on AN6 (Dash 6) connections for the inlet, outlet and return.

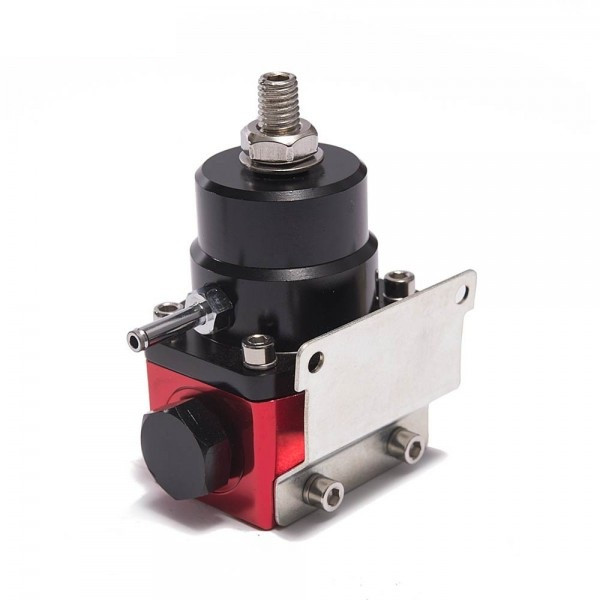

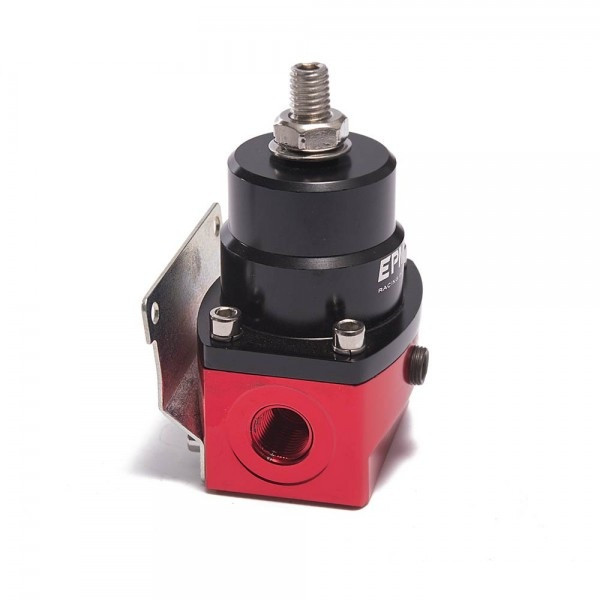

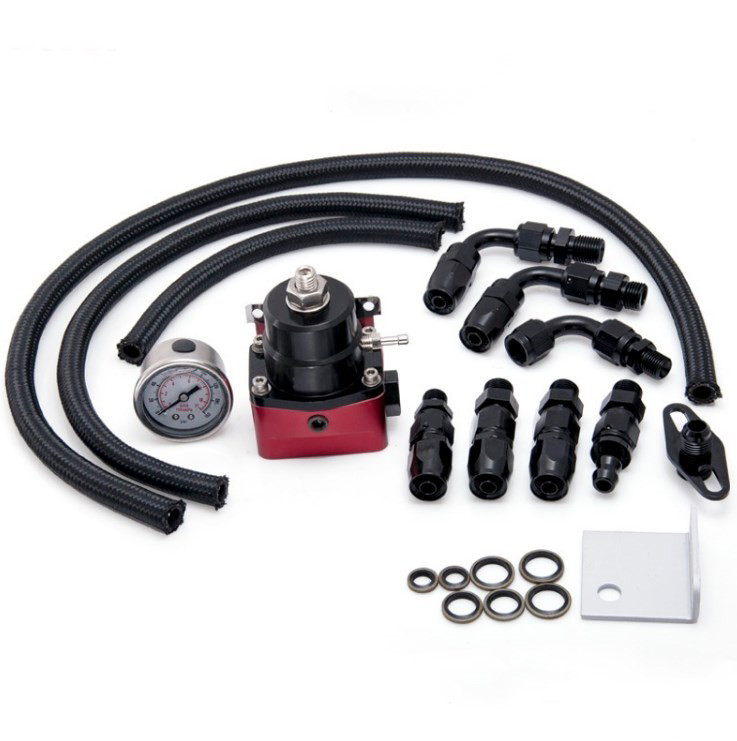

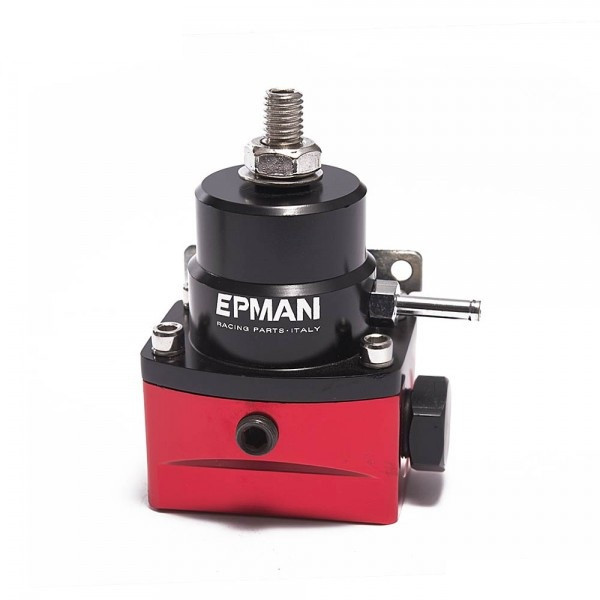

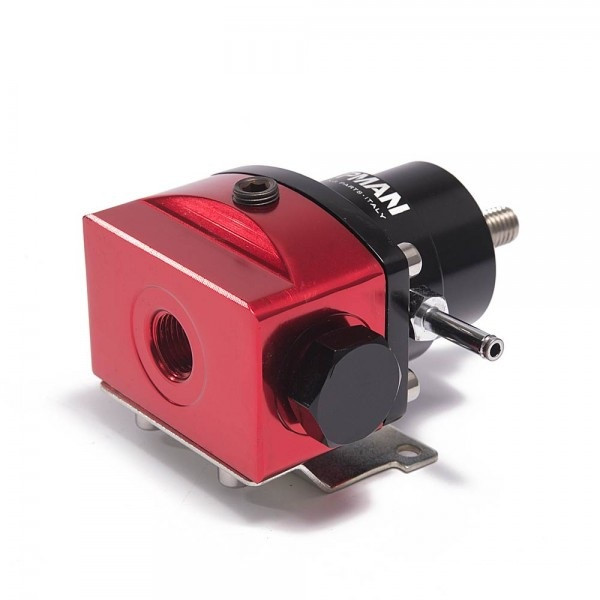

The kit includes an adjustable fuel pressure regulator with a vacuum port and mounting bracket, plus a 2" pressure gauge. An AN6 braided fuel hose and the included fittings help you build a clean, serviceable layout, including multi-rail setups.
When is this useful?
It is useful when you want to set fuel pressure and confirm it on the included gauge, while vacuum-referenced compensation supports pressure behaviour as engine load changes.
Technical specs
- Product type: Fuel pressure regulator kit
- Connections: Dash 6 (AN6) – inlet, outlet, return
- Regulator: Adjustable, with bracket and vacuum port
- Gauge: 2" pressure gauge
- Included parts: AN6 blanking plug; AN6 fittings and adapter unions; AN6 braided fuel hose
- Recommended use: 4–8 cylinder EFI engines; NA and turbo setups
- Fuel note: Not recommended for long-term E85 use
- Part number: EP-7MGTE
- Colour: Red / black

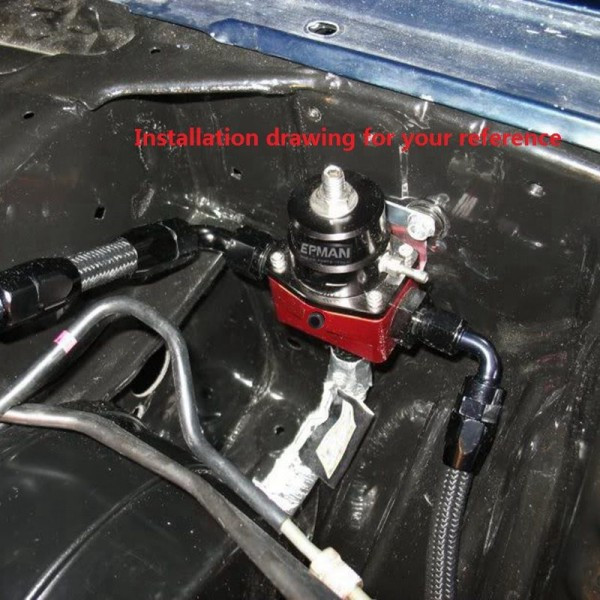

Selection & installation tips
- AN6 compatibility: Confirm your system uses AN6 (Dash 6) sizing and matching thread/sealing type across feed and return.
- Return layout: Make sure a return line layout is in place and routing does not introduce restrictive pinch points.
- Vacuum reference: Connect the vacuum port to a stable source and keep the hose kink-free and leak-free.
- Mounting & routing: Fix the bracket to a rigid point and protect the braided hose from abrasion and heat sources.
- Leak check: Check all joints before first start and after initial running, then adjust using the gauge reading as your reference.
Before installation, verify AN6 fitting type, vacuum reference point, and routing space, then match them to the technical specs above.
