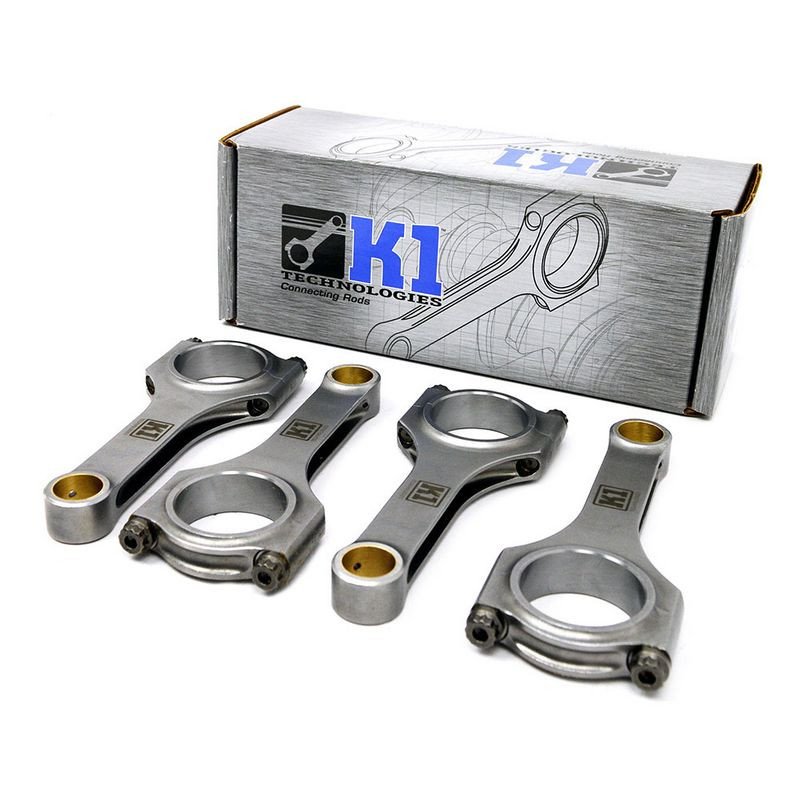

The K1 H-beam connecting rod set is engineered for Ford 2.0L and 2.3L DOHC engines, including N7A, N9F, N8C, and NSD. Built from 4340 forged steel, it provides exceptional durability under extreme loads – ideal for turbocharged or high-RPM applications.

Technical Specifications:

Length: 149.3 mm

Big-End Bore: 53.90 mm

Big-End Width: 25.70 mm

Piston Pin Diameter: 20.00 mm

Small-End Width: 21.00 mm

Weight: approx. 568 g

Bolts: ARP 2000 (BT61501-S)

Country of Origin: China

Features:

Shot-peened for fatigue strength

Bronzed small ends

Matched weight tolerance: ±1g

High precision CNC machining

ARP 2000 fasteners included

Compatible Ford Engines:

2.0L DOHC (8v & 16v) – N7A, N8C

2.3L DOHC – N9F, NSD

Ideal for high-performance engines, turbo builds, and track applications.
