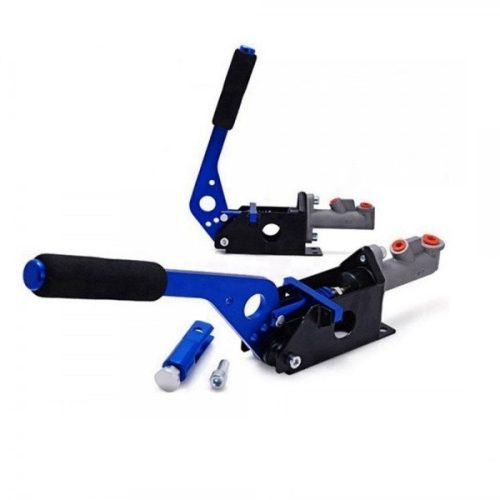

Key Features & Benefits – Hydraulic handbrake with 0.75 master cylinder blue
Hydraulic handbrake with 0.75 master cylinder blue for universal race-focused applications. It can be used for drift, rally, and custom builds to manually control the rear brake circuit, with mounting adapted to your layout.
The lever is CNC aluminum and the mounting uses a steel bracket. The unit is reversible for left- or right-hand installation, supports vertical or horizontal mounting, and features a lockable mechanism.
When is this useful?
It fits setups where the rear brakes are actuated by a dedicated hand lever and you want to choose master cylinder size to match brake-system feel. The lockable mechanism is practical when you also use the lever in a fixed position.
Technical specs
- Brand: EPMAN
- Part number: TKB11001-BL
- Type: hydraulic handbrake lever
- Color: blue
- Master cylinder: 0.75” (19.05 mm)
- Materials: CNC aluminum lever, steel bracket
- Mounting orientation: vertical or horizontal
- Design: reversible (left/right), lockable
- Connections: 3/8”, 7/16” brake fittings
- Inlet thread: M11×1.25 (convex)
- Outlet thread: 3/8-24 UNF (concave)
Selection & installation tips
- Master cylinder size: choose 0.75” (19.05 mm) to match the rear brake circuit and the lever travel/feel you want.
- Threads & fittings: confirm line and fitting compatibility with the M11×1.25 inlet and 3/8-24 UNF outlet.
- Mounting orientation: plan vertical vs horizontal mounting for lever range and cockpit access.
- Left/right setup: when using the reversible layout, check lever sweep so it clears seat, brackets, and cage elements.
- Locking function: after installation, test the lockable mechanism and verify the bracket is securely supported.
Before installation, verify master cylinder size, fitting/thread compatibility, and your mounting position and lever sweep, then compare them to the technical specs listed above.
